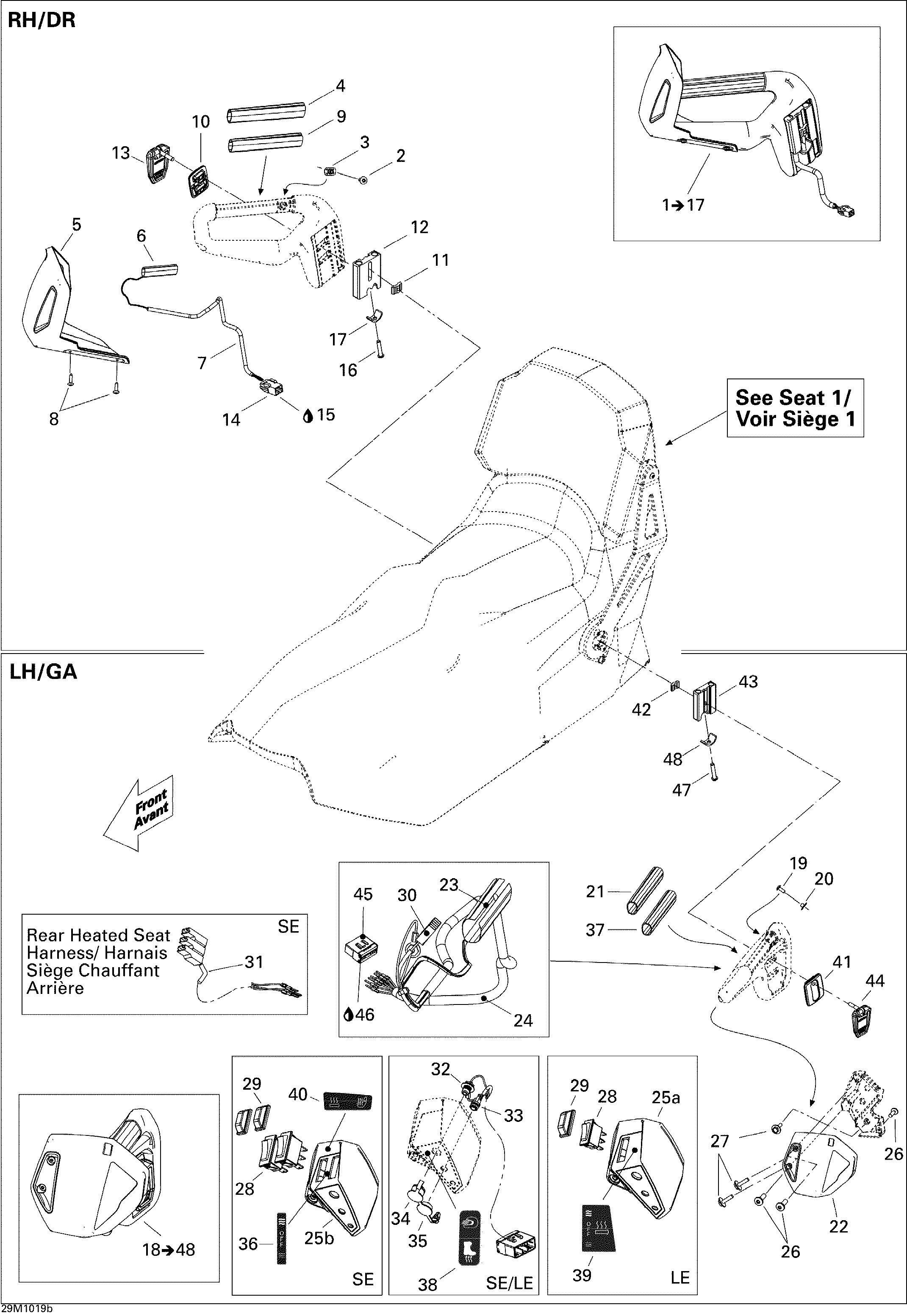

09- Seat 2, LE для BRP Ski-Doo Grand-Touring LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1510004800 RH Handle Ass'y. Includes 1 to 17RH Handle Ass'y. Includes 1 to 17
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3293100003 Nut M6Nut M6
-
4510004449 Handle GripHandle Grip
-
5510005009 RH Air DeflectorRH Air Deflector
-
6515176768 Heated ElementHeated Element
-
7515175506 TubingTubing
-
8250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
9510005011 Reinforcement HandleReinforcement Handle
-
10510004405 MouldingMoulding
-
11510004804 Stopper BlockStopper Block
-
12510004798 Handle LinkHandle Link
-
13510004806 Lever Lock Ass'yLever Lock Ass'y
-
14515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
17510004565 Handle ClampHandle Clamp
-
18510004802 LH Handle Ass'y. LE, Includes 18 to 48LH Handle Ass'y. LE, Includes 18 to 48
-
19250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
20293100003 Nut M6Nut M6
-
21510004449 Handle GripHandle Grip
-
22510005010 LH Air DeflectorLH Air Deflector
-
23515176768 Heated ElementHeated Element
-
24515175506 TubingTubing
-
25a510005036 Housing Switch. LEHousing Switch. LE
-
26250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
27250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
28510004413 Rocker Switch. LERocker Switch. LE
-
29510004414 Switch Protector. LESwitch Protector. LE
-
30515176697 Handle HarnessHandle Harness
-
32515176698 Visor Connector HarnessVisor Connector Harness
-
33515176654 Heated liner HarnessHeated liner Harness
-
34572103300 CapCap
-
35510004950 CapCap
-
37510005011 Reinforcement HandleReinforcement Handle
-
38516003612 Visor Liner DecalVisor Liner Decal
-
39516003816 Heated Handle Decal. LEHeated Handle Decal. LE
-
41510004405 MouldingMoulding
-
42510004804 Stopper BlockStopper Block
-
43510004798 Handle LinkHandle Link
-
44510004806 Lever Lock Ass'yLever Lock Ass'y
-
45515176033 PT Male ConnectorPT Male Connector
-
46293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
47250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
48510004565 Handle ClampHandle Clamp
