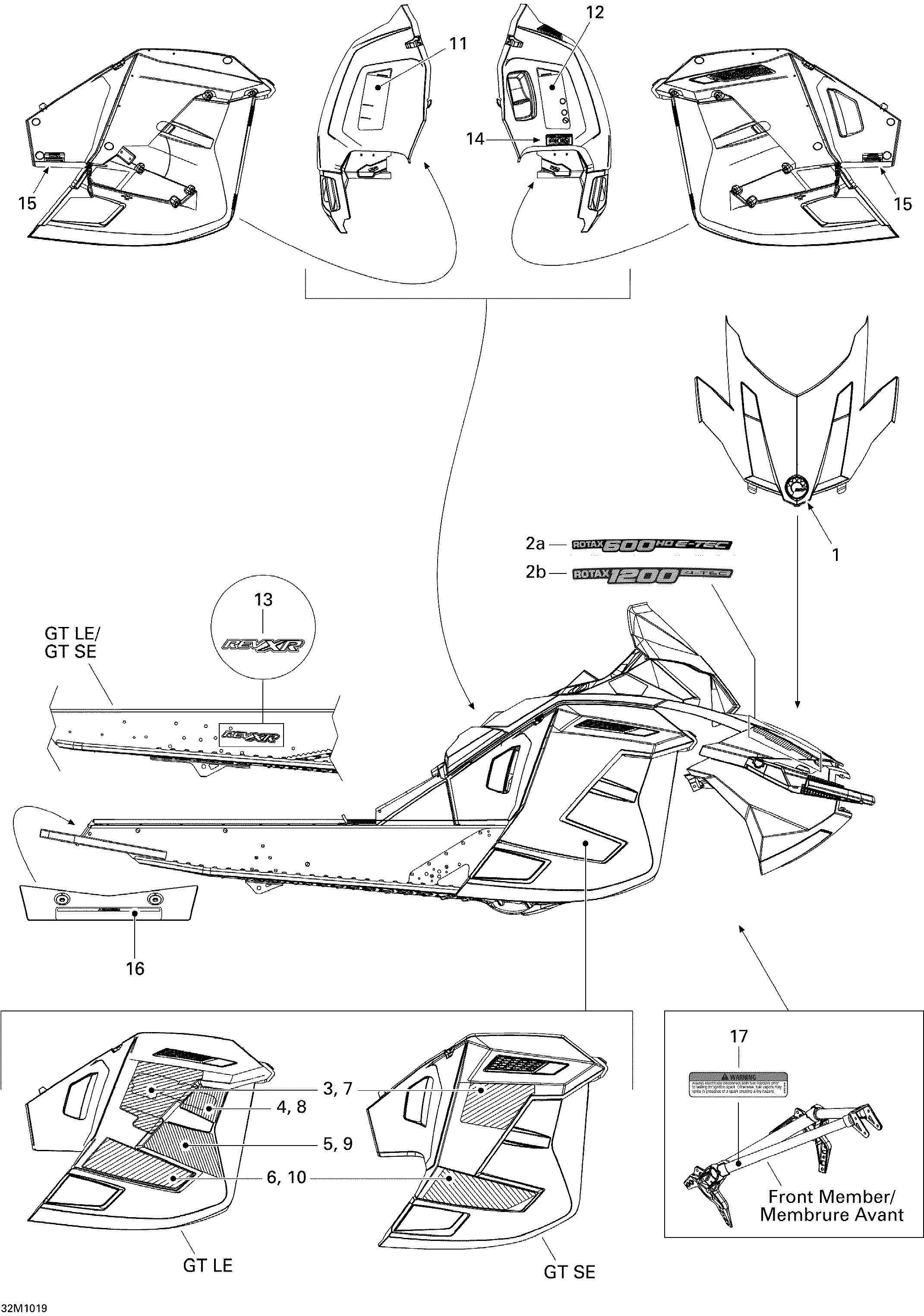

09- Decals LE 600HO ETEC для BRP Ski-Doo Grand-Touring LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2a516004274 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004105 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
4516004097 RH Front Upper Side DecalRH Front Upper Side Decal
-
5516004099 RH Front Side DecalRH Front Side Decal
-
6516004103 RH Side DecalRH Side Decal
-
7516004104 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
8516004096 LH Front Upper Side DecalLH Front Upper Side Decal
-
9516004098 LH Front Side DecalLH Front Side Decal
-
10516004102 LH Side DecalLH Side Decal
-
11516003788 Warning Decal, SecurityWarning Decal, Security
-
12516003790 Warning Decal, SecurityWarning Decal, Security
-
13516004207 Decal REV XRDecal REV XR
-
15516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
16516003578 Warning Decal, TrackWarning Decal, Track
-
17516003940 Warning Decal, InjectorsWarning Decal, Injectors
