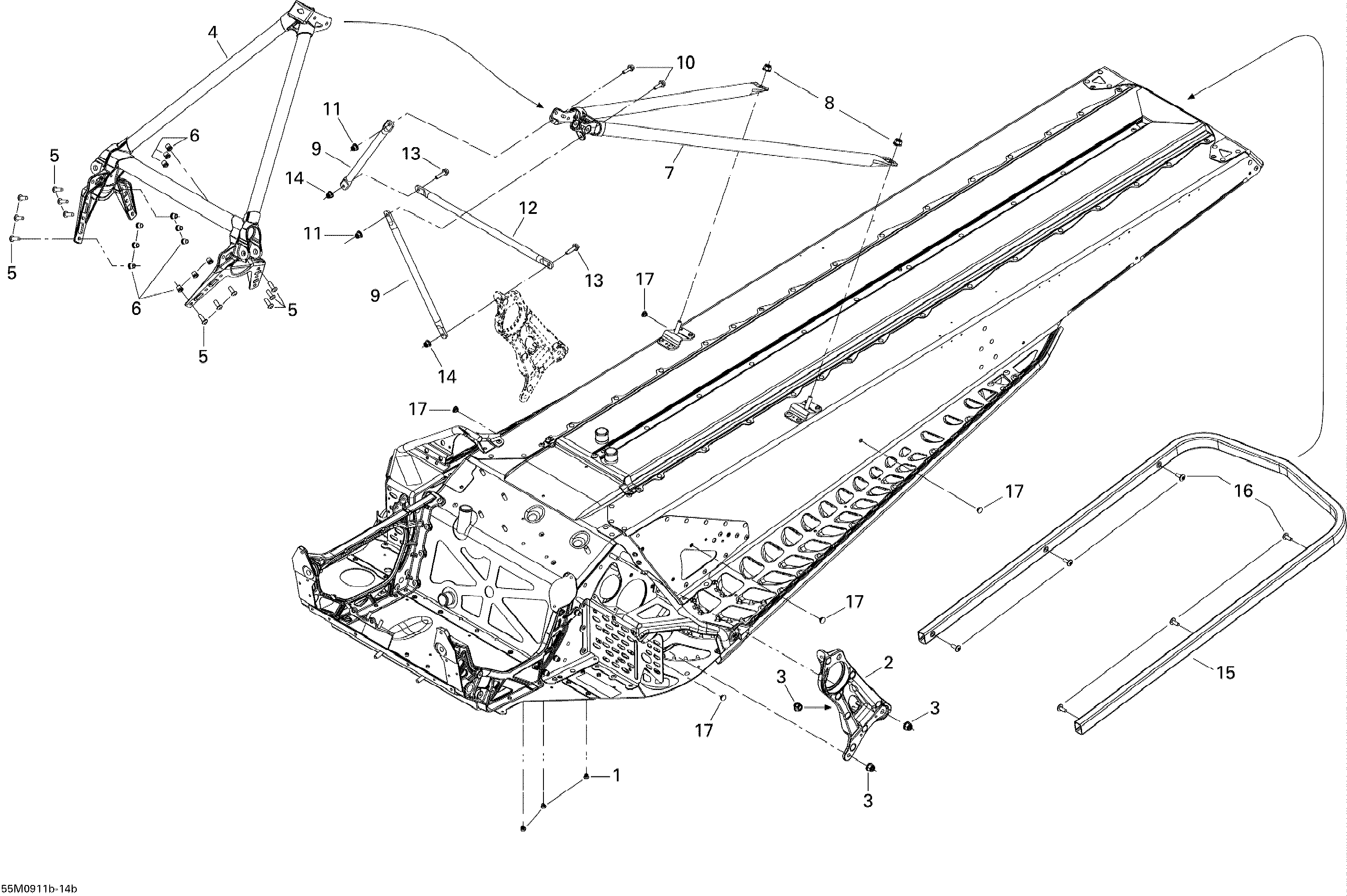

09- Frame and Components 2 для BRP Ski-Doo Summit 50TH Anniversary - 2009
-
№АртикулНазвание
-
1390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
2518325933 Driven Pulley SupportDriven Pulley Support
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4518325929 Front MemberFront Member
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7518325927 Rear MemberRear Member
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9518325114 Upper Column SupportUpper Column Support
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12518325115 Center Column SupportCenter Column Support
-
13207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15518326049 Rear Bumper, 154''Rear Bumper, 154''
-
16250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
17293730047 Dart 8 mm, BlackDart 8 mm, Black
