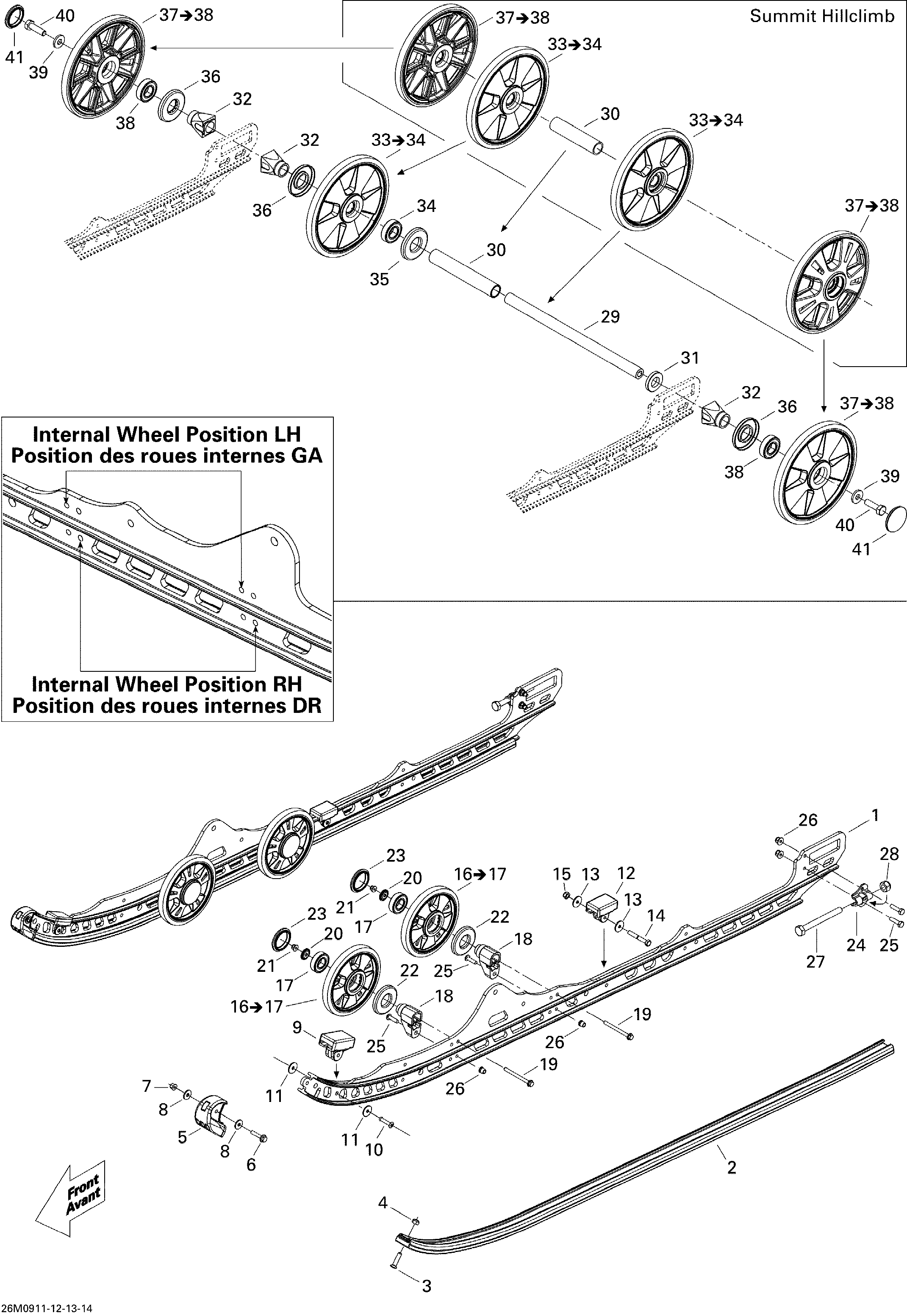

08- Rear Suspension для BRP Ski-Doo Summit 50TH Anniversary - 2009
-
№АртикулНазвание
-
1503191919 RunnerRunner
-
2503191198 Slider Shoe 154''Slider Shoe 154''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
16503191755 Wheel 152. Includes 16 to 17Wheel 152. Includes 16 to 17
-
17503190396 Ball BearingBall Bearing
-
18503191833 SupportSupport
-
19207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
20503191820 Wheel Cup M6Wheel Cup M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22503190434 Labyrinth SealLabyrinth Seal
-
23570063600 Wheel CapWheel Cap
-
24503190380 TensionerTensioner
-
25207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29503190429 Rear AxleRear Axle
-
30503190430 Rear Long SpacerRear Long Spacer
-
31503190432 WasherWasher
-
32503190428 Rear Wheel SpacerRear Wheel Spacer
-
33503191877 Wheel 200. Includes 33 to 34Wheel 200. Includes 33 to 34
-
34503190396 Ball BearingBall Bearing
-
35503190682 Labyrinth SealLabyrinth Seal
-
36503190434 Labyrinth SealLabyrinth Seal
-
37503191450 Wheel 200. Includes 37 to 38Wheel 200. Includes 37 to 38
-
38503190396 Ball BearingBall Bearing
-
39503190439 WasherWasher
-
40250000019 Hex. Screw With NylonHex. Screw With Nylon
-
41570063600 Wheel CapWheel Cap
