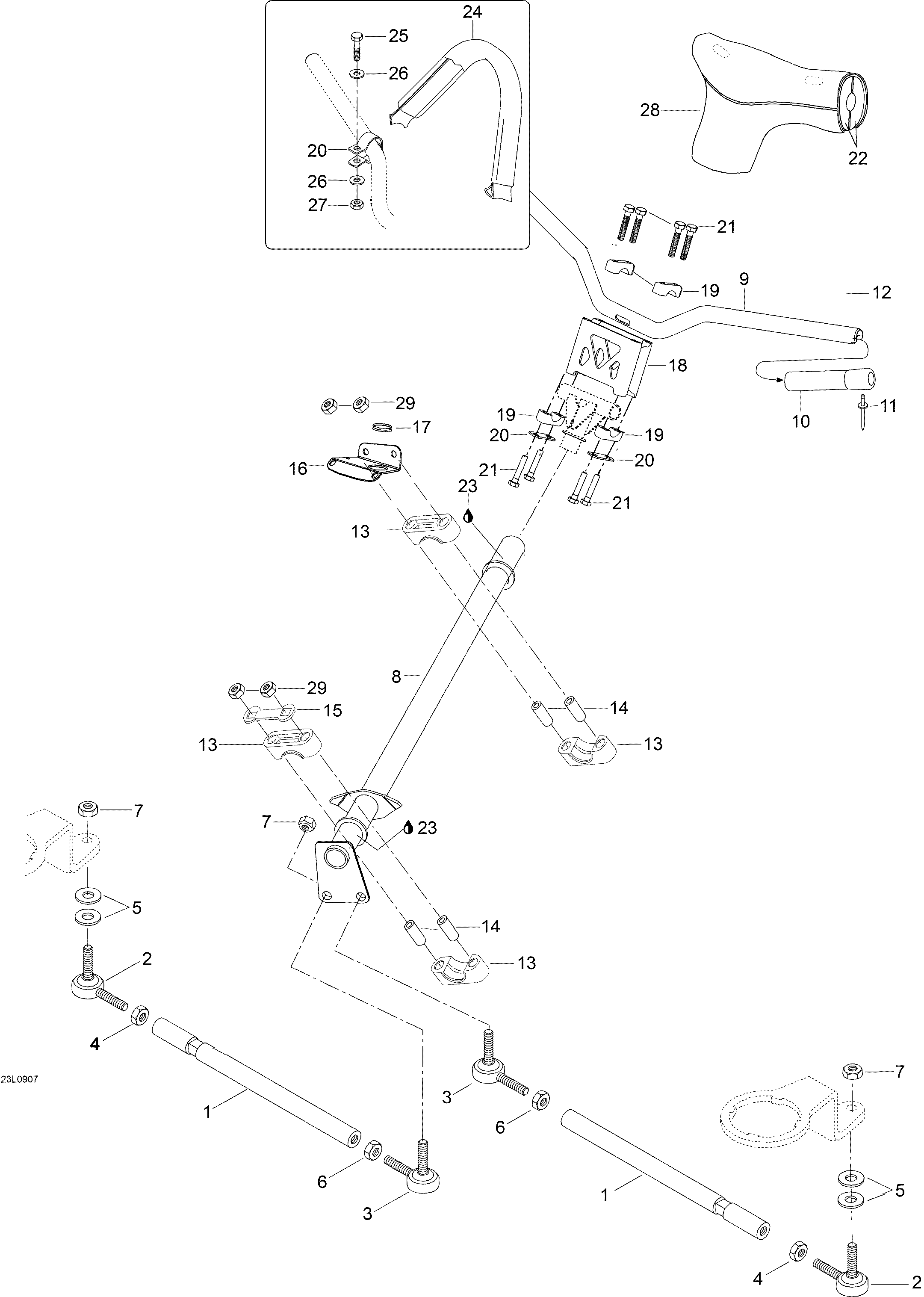

07- Steering для BRP Ski-Doo Skandic WT 550F - 2009
-
№АртикулНазвание
-
1605455619 Tie RodTie Rod
-
1605455620 Tie RodTie Rod
-
2506151492 RH Ball JointRH Ball Joint
-
3506151495 LH Ball JointLH Ball Joint
-
4M33019 RH NutRH Nut
-
5M31014 WasherWasher
-
6M33017 LH NutLH Nut
-
7233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
8605255608 Main TubeMain Tube
-
9605251368 Handle BarHandle Bar
-
10M5340464 Grip HandleGrip Handle
-
11M36005 RivetRivet
-
12506151566 AdaptatorAdaptator
-
13506150400 Housing HalfHousing Half
-
14506150500 Housing BushingHousing Bushing
-
15506150600 Stopper PlateStopper Plate
-
16605352322 Console HolderConsole Holder
-
17M40390 Allen Screw M8 X 20Allen Screw M8 X 20
-
18605349584 ExtensionExtension
-
19M548448 Steering ClampSteering Clamp
-
20506151792 Support Plate, BlackSupport Plate, Black
-
21M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22605252111 Foam, RearFoam, Rear
-
22605252110 Foam, FrontFoam, Front
-
24506152115 Strap Ass'yStrap Ass'y
-
25207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
26234061410 Flat Washer 6 mmFlat Washer 6 mm
-
27232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
28605254571 Steering CoverSteering Cover
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
