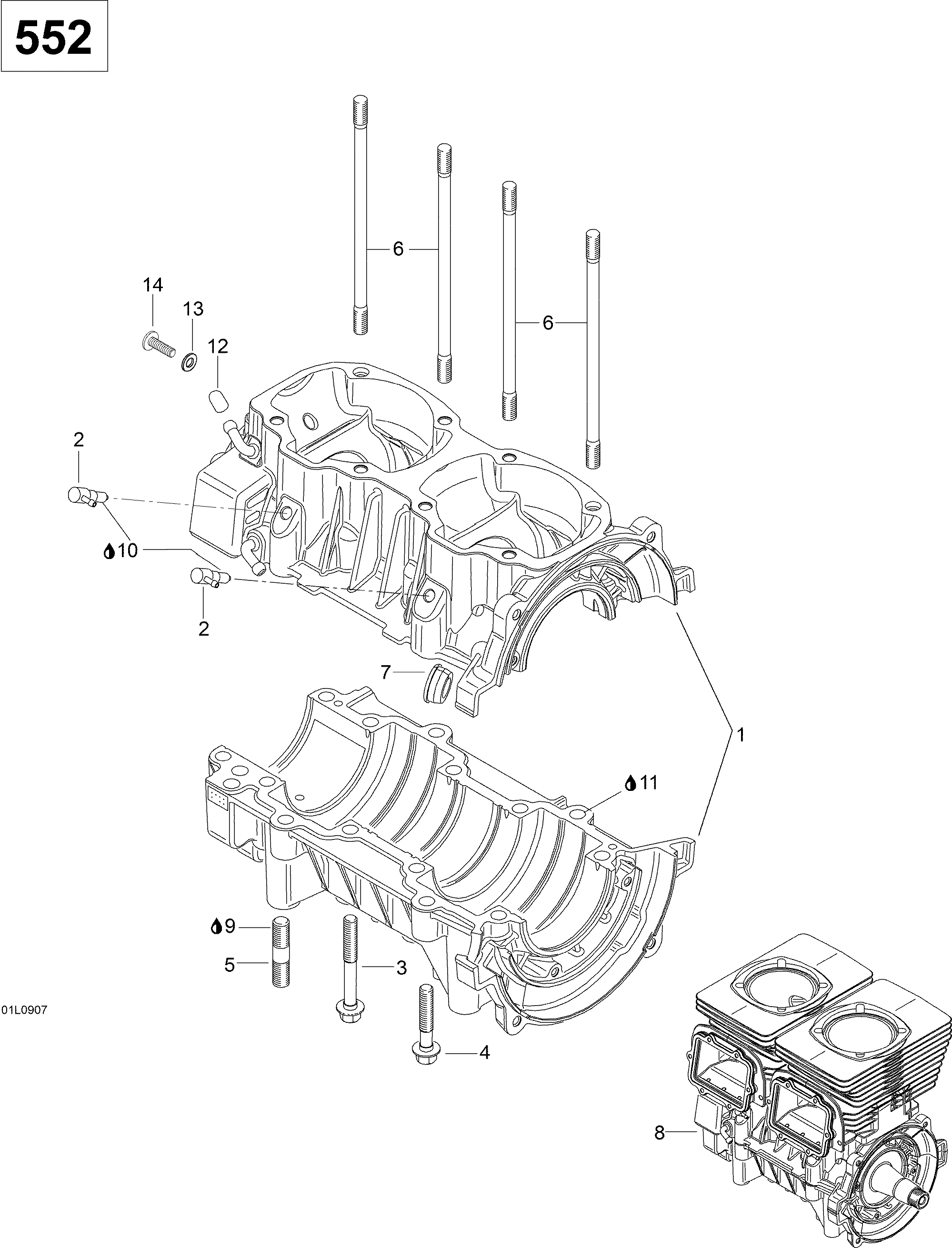

01- Crankcase для BRP Ski-Doo Skandic WT 550F - 2009

  • №
    Артикул
    Название
  • 1
    420890231 Crankcase Ass'y. Includes 1 to 4
    Crankcase Ass'y. Includes 1 to 4
  • 2
    420956510 Check Valve
    Check Valve
  • 3
    420640951 Hex. Screw M8 X 68.5
    Hex. Screw M8 X 68.5
  • 4
    420640431 Hex. Collar Screw M8 X 45
    Hex. Collar Screw M8 X 45
  • 5
    420641834 Stud M10 X 29
    Stud M10 X 29
  • 6
    420840556 Stud M8 X 173.5
    Stud M8 X 173.5
  • 7
    420860962 Cable Grommet
    Cable Grommet
  • 8
    420055207 Short Block 552
    Short Block 552
  • 9
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 10
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 11
    420297906 Sealing Compound, 30 ml
    Sealing Compound, 30 ml
  • 12
    420960772 Cap
    Cap
  • 13
    420250311 Flat Washer 8.4 mm
    Flat Washer 8.4 mm
  • 14
    420640896 Flat Head Screw
    Flat Head Screw
