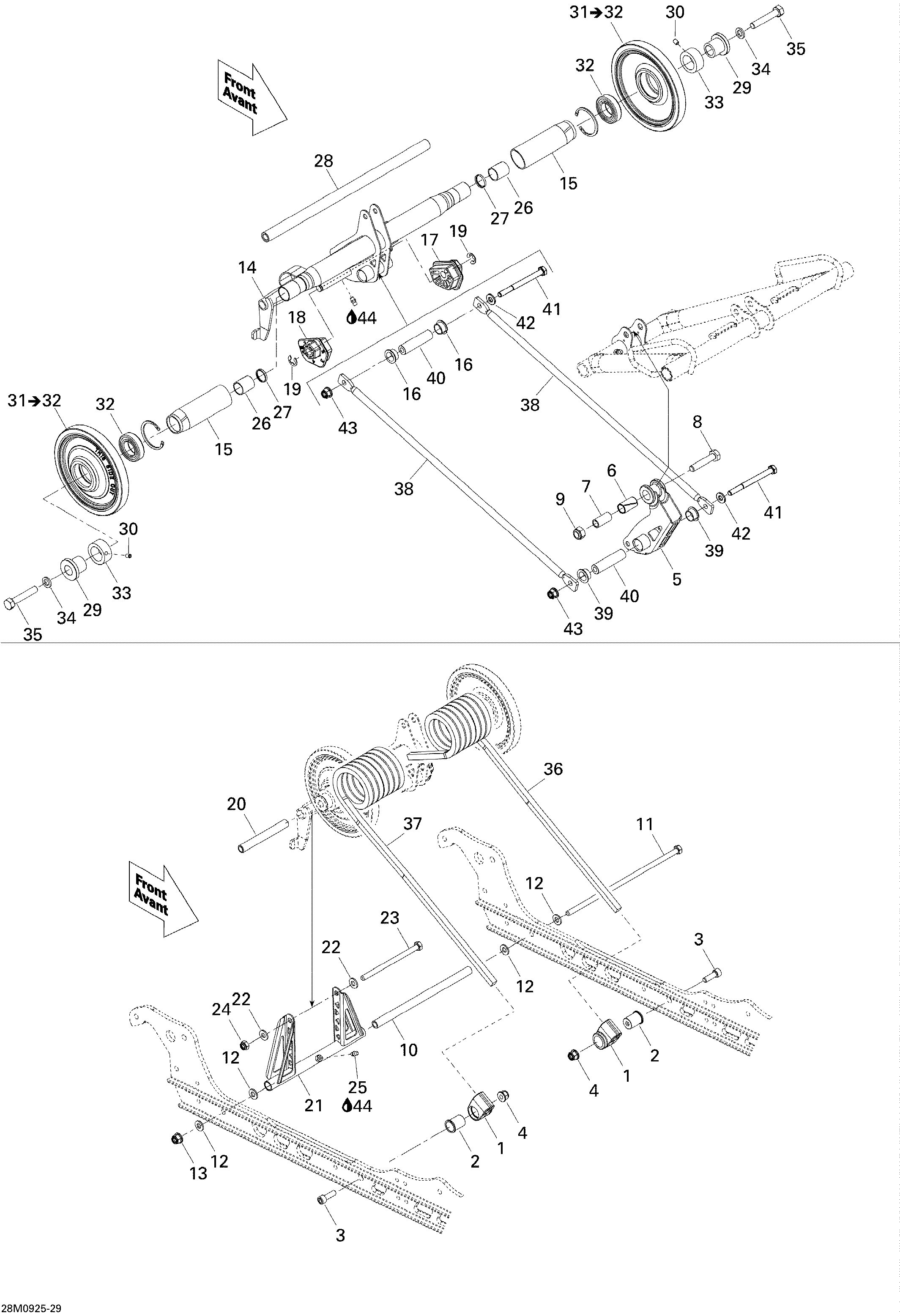

08- Rear Arm для BRP Ski-Doo Skandic Tundra LT V800 4-TEC - 2009
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191207 Welded RockerWelded Rocker
-
6503191422 CushionCushion
-
7503189282 BushingBushing
-
8207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503189156 Pivot Arm AxlePivot Arm Axle
-
11732601198 Long Bolt M8Long Bolt M8
-
12503189157 WasherWasher
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503191762 Welded Rear ArmWelded Rear Arm
-
15572080700 BushingBushing
-
16503191555 Swivel BushingSwivel Bushing
-
17503191565 LH Cam AdjusterLH Cam Adjuster
-
18503191566 RH Cam AdjusterRH Cam Adjuster
-
19293370013 E-CirclipE-Circlip
-
20503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
21503191209 Welded Pivot ArmWelded Pivot Arm
-
22503189157 WasherWasher
-
23732601197 Short Bolt M8Short Bolt M8
-
24232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
25408200700 Grease FittingGrease Fitting
-
26503191556 Extended BushingExtended Bushing
-
27503191651 WasherWasher
-
28503191215 Upper ShaftUpper Shaft
-
29503191262 BushingBushing
-
30206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
31503191738 Wheel 155. Includes 31 to 32Wheel 155. Includes 31 to 32
-
32503191982 Ball BearingBall Bearing
-
33503168800 Retaining RingRetaining Ring
-
34503189564 WasherWasher
-
35207205586 Hex. Screw, Scotch GripHex. Screw, Scotch Grip
-
36503192105 LH Spring, SquareLH Spring, Square
-
37503192104 RH Spring, SquareRH Spring, Square
-
38503191765 Link RodLink Rod
-
39503191555 Swivel BushingSwivel Bushing
-
40503190643 Bar AxleBar Axle
-
41207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
42503189157 WasherWasher
-
43233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
44219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
