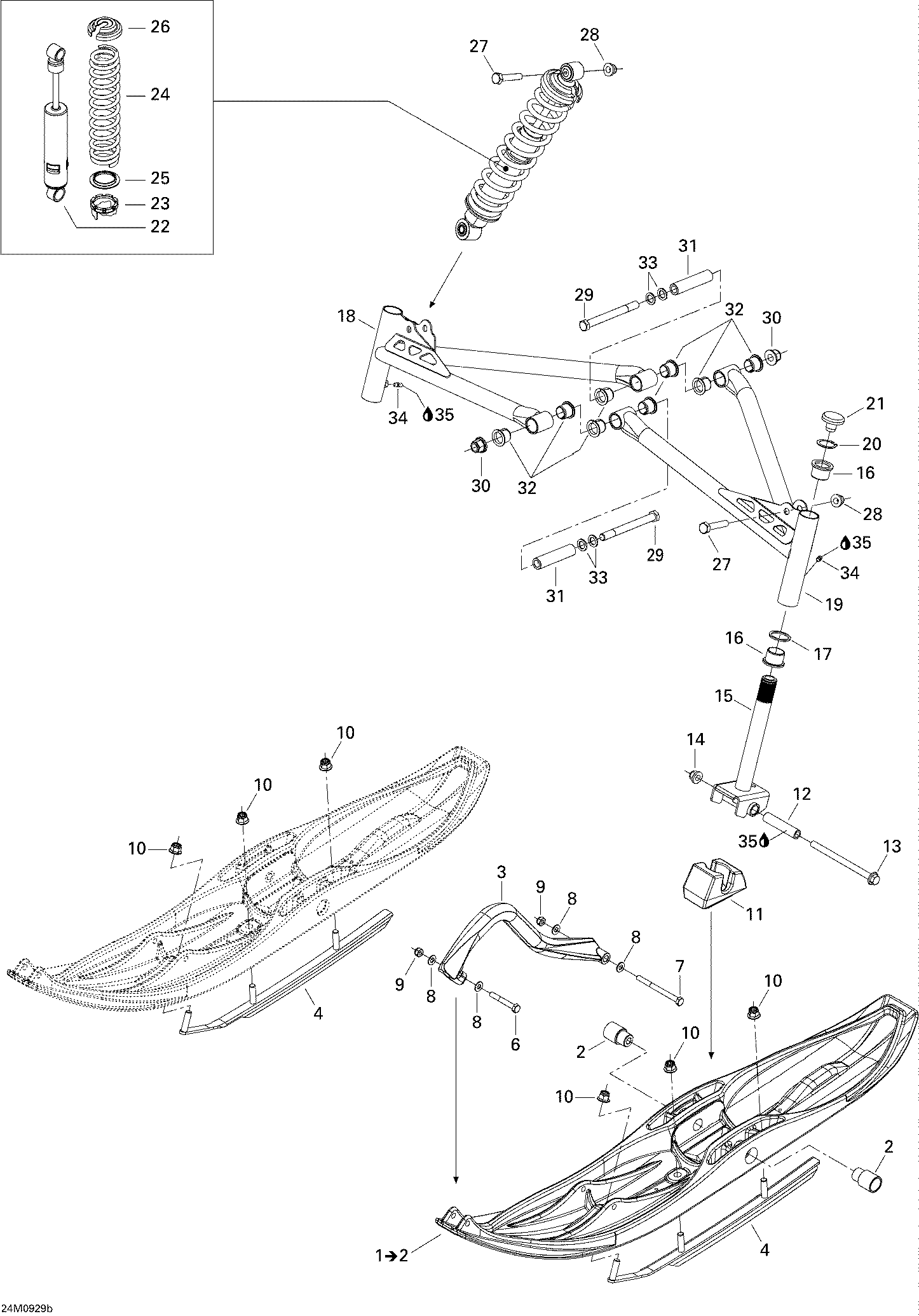

07- Front Suspension And Ski Euro для BRP Ski-Doo Skandic Tundra LT V800 4-TEC - 2009
-
№АртикулНазвание
-
1605153775 Plastic Ski Ass'y. Includes 1 to 2Plastic Ski Ass'y. Includes 1 to 2
-
2605348392 BushingBushing
-
3505070963 Handle, BlackHandle, Black
-
4619400005 Runner Carbide KitRunner Carbide Kit
-
6207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
7207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11605348458 Ski StopperSki Stopper
-
12506133300 SpacerSpacer
-
13230604046 Hex. Flanged Screw M10 x 140Hex. Flanged Screw M10 x 140
-
14233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
15505072001 Ski LegSki Leg
-
16505070003 CushionCushion
-
17505070004 WasherWasher
-
18505071739 RH Lower ArmRH Lower Arm
-
19505071740 LH Lower ArmLH Lower Arm
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22505072258 Front ShockFront Shock
-
23503183700 Cam 45°Cam 45°
-
24505071492 SpringSpring
-
25503187500 Spring GuideSpring Guide
-
26706200881 Spring StopperSpring Stopper
-
27207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
28233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29230022044 Hex. Screw M12 X 120Hex. Screw M12 X 120
-
30233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
31505071366 BushingBushing
-
32505072094 BushingBushing
-
33503189276 WasherWasher
-
34408200700 Grease FittingGrease Fitting
-
35219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
