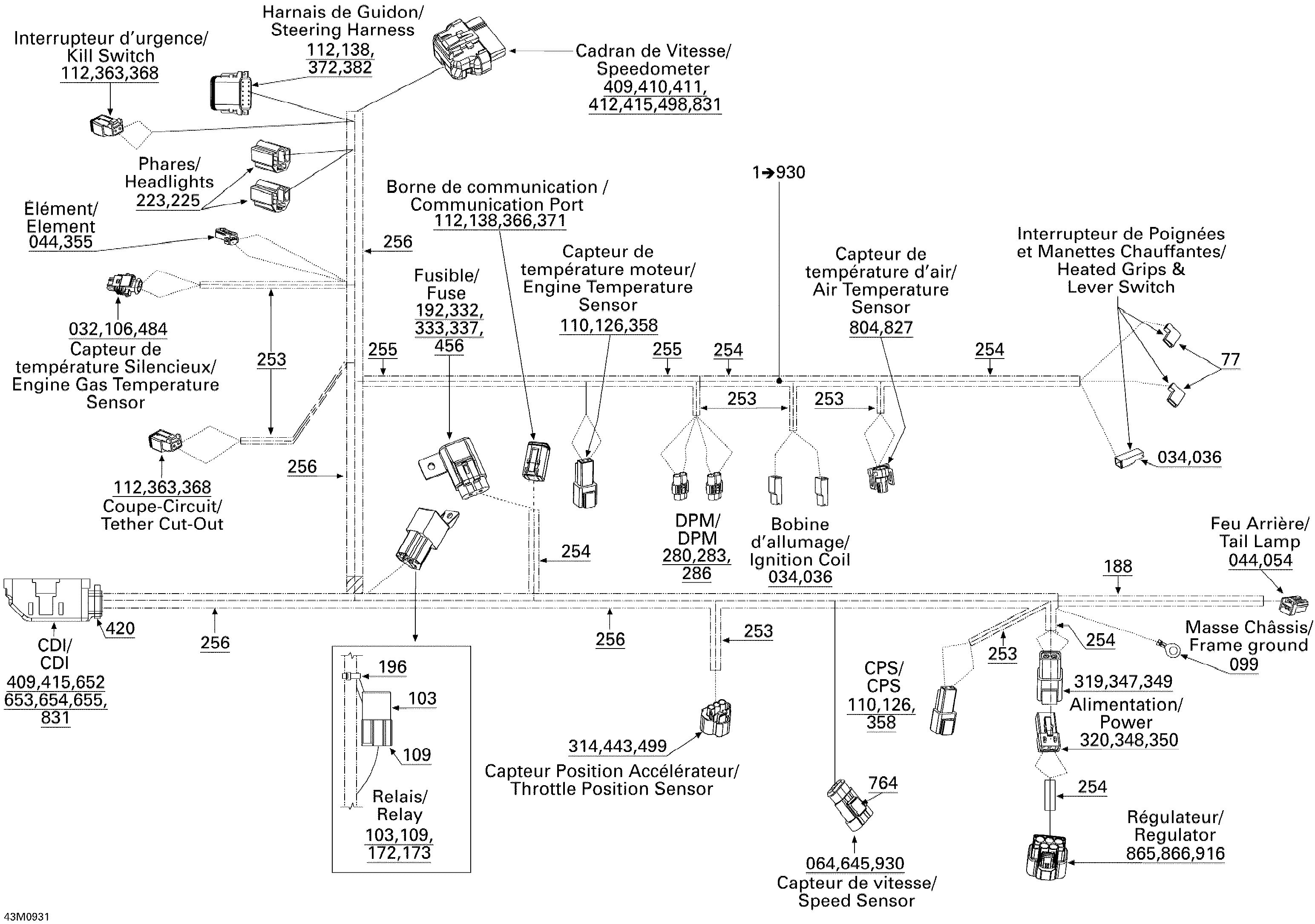

10- Electrical Harness для BRP Ski-Doo MX Z X 600RS - 2009

  • №
    Артикул
    Название
  • 1
    515176799 Main Wiring Harness. Includes 1 to 930
    Main Wiring Harness. Includes 1 to 930
  • 032
    278000998 Female Terminal
    Female Terminal
  • 034
    409010100 Female Terminal
    Female Terminal
  • 036
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 044
    515175231 Female Terminal
    Female Terminal
  • 054
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 064
    710000568 Housing
    Housing
  • 077
    409010300 Female Terminal
    Female Terminal
  • 099
    278000992 Open Barrel
    Open Barrel
  • 103
    410113200 Relay
    Relay
  • 106
    278001005 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 109
    409209900 Female Housing, 5 Circuits
    Female Housing, 5 Circuits
  • 110
    278000631 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 126
    409207500 Male Lock, 2 Circuits
    Male Lock, 2 Circuits
  • 138
    293000052 Sealing Cap
    Sealing Cap
  • 172
    561503100 Female Terminal
    Female Terminal
  • 173
    561503100 Female Terminal
    Female Terminal
  • 188
    409902000 Tubing 12 mm
    Tubing 12 mm
  • 192
    409003900 Fuse, 20 Amperes
    Fuse, 20 Amperes
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 223
    515175320 Female Terminal
    Female Terminal
  • 225
    409202700 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 280
    409012100 Female Terminal
    Female Terminal
  • 286
    409012300 Seal
    Seal
  • 314
    515176176 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 319
    515175568 Male Terminal
    Male Terminal
  • 320
    515175567 Female Terminal
    Female Terminal
  • 332
    278001326 Fuse Holder Cap
    Fuse Holder Cap
  • 333
    278001325 Fuse Holder
    Fuse Holder
  • 337
    710000113 Female Terminal
    Female Terminal
  • 347
    278001674 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 348
    278001673 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 349
    278001672 Male Lock, 2 Circuits
    Male Lock, 2 Circuits
  • 350
    278001671 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 358
    515175665 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 363
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 366
    515175673 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 368
    515175675 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 371
    515175678 Male Wedge, 6 Circuits
    Male Wedge, 6 Circuits
  • 372
    515175679 Female Lock, 12 Circuits
    Female Lock, 12 Circuits
  • 382
    515175704 Female Terminal Housing, 12 Circuits
    Female Terminal Housing, 12 Circuits
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Housing, 24 Circuits
    Female Housing, 24 Circuits
  • 411
    515175802 Retainer Block
    Retainer Block
  • 412
    515175803 Wire Seal
    Wire Seal
  • 415
    515175806 Female Terminal
    Female Terminal
  • 420
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 443
    710000335 Female Terminal
    Female Terminal
  • 456
    278000805 Cushion
    Cushion
  • 484
    415128501 Seal
    Seal
  • 498
    710000399 Female Housing
    Female Housing
  • 499
    710000402 Wire Seal
    Wire Seal
  • 645
    515176164 Male Terminal
    Male Terminal
  • 652
    515176221 Female Housing
    Female Housing
  • 653
    515176222 Wire Seal
    Wire Seal
  • 654
    515176223 Female Terminal Housing, 36 Circuits
    Female Terminal Housing, 36 Circuits
  • 655
    515176224 Terminal Support
    Terminal Support
  • 764
    710000992 Clip
    Clip
  • 804
    515176523 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 827
    710001119 Female Terminal
    Female Terminal
  • 831
    710001131 Female Terminal
    Female Terminal
  • 865
    515176530 Connector
    Connector
  • 866
    515176531 Terminal
    Terminal
  • 916
    515176594 Seal
    Seal
  • 930
    515176621 Wire Seal
    Wire Seal
