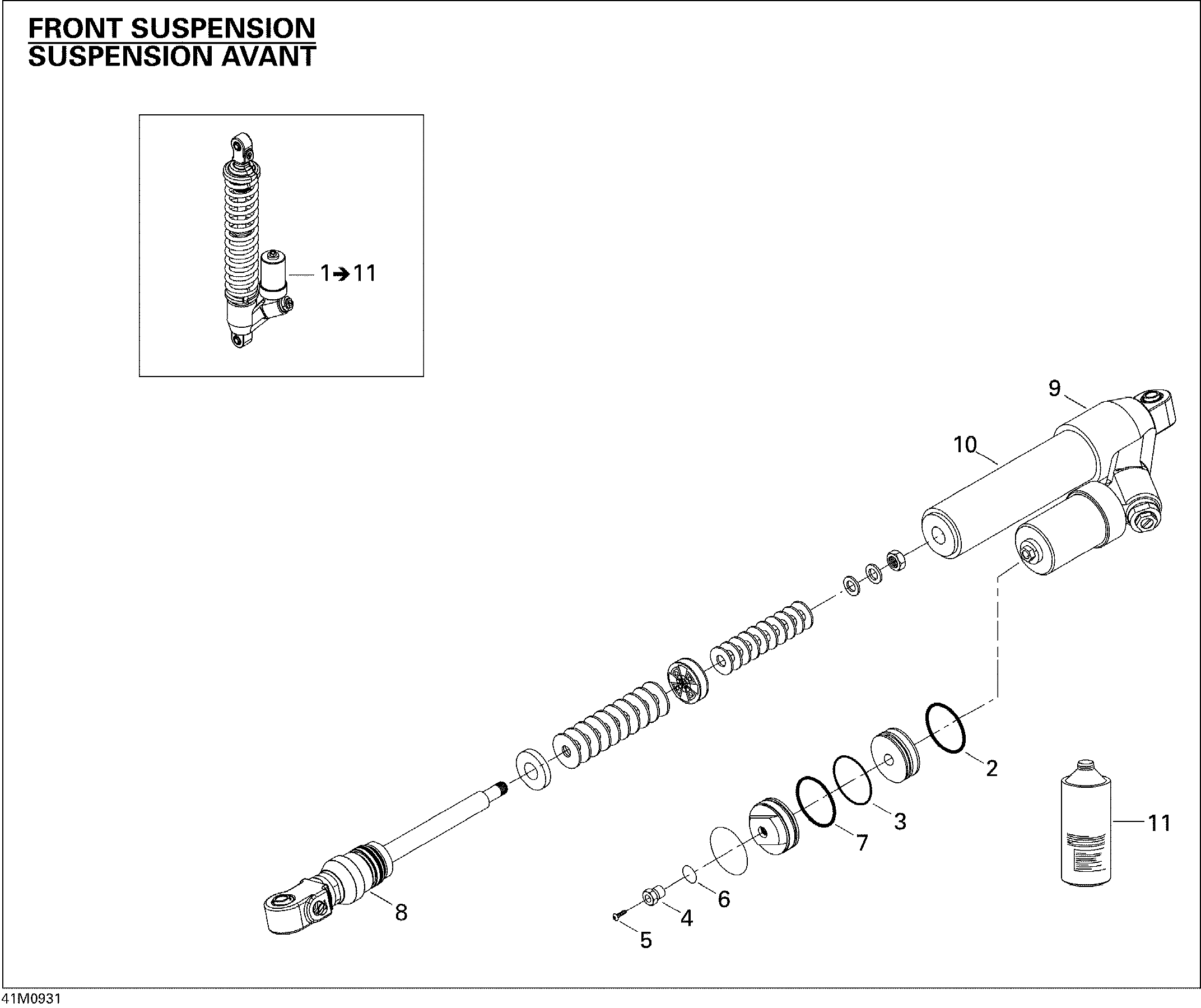

07- Take Apart Shock, Front для BRP Ski-Doo MX Z X 600RS - 2009
-
№АртикулНазвание
-
1505072564 RH HPG Front Shock. Includes 1 to 10RH HPG Front Shock. Includes 1 to 10
-
1505072565 LH HPG Front Shock. Includes 1 to 10LH HPG Front Shock. Includes 1 to 10
-
2415093807 O-RingO-Ring
-
3415093806 Piston RingPiston Ring
-
4505070398 Air Valve RingAir Valve Ring
-
5505070399 ScrewScrew
-
6505070400 O-RingO-Ring
-
7415093804 O-RingO-Ring
-
11293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
