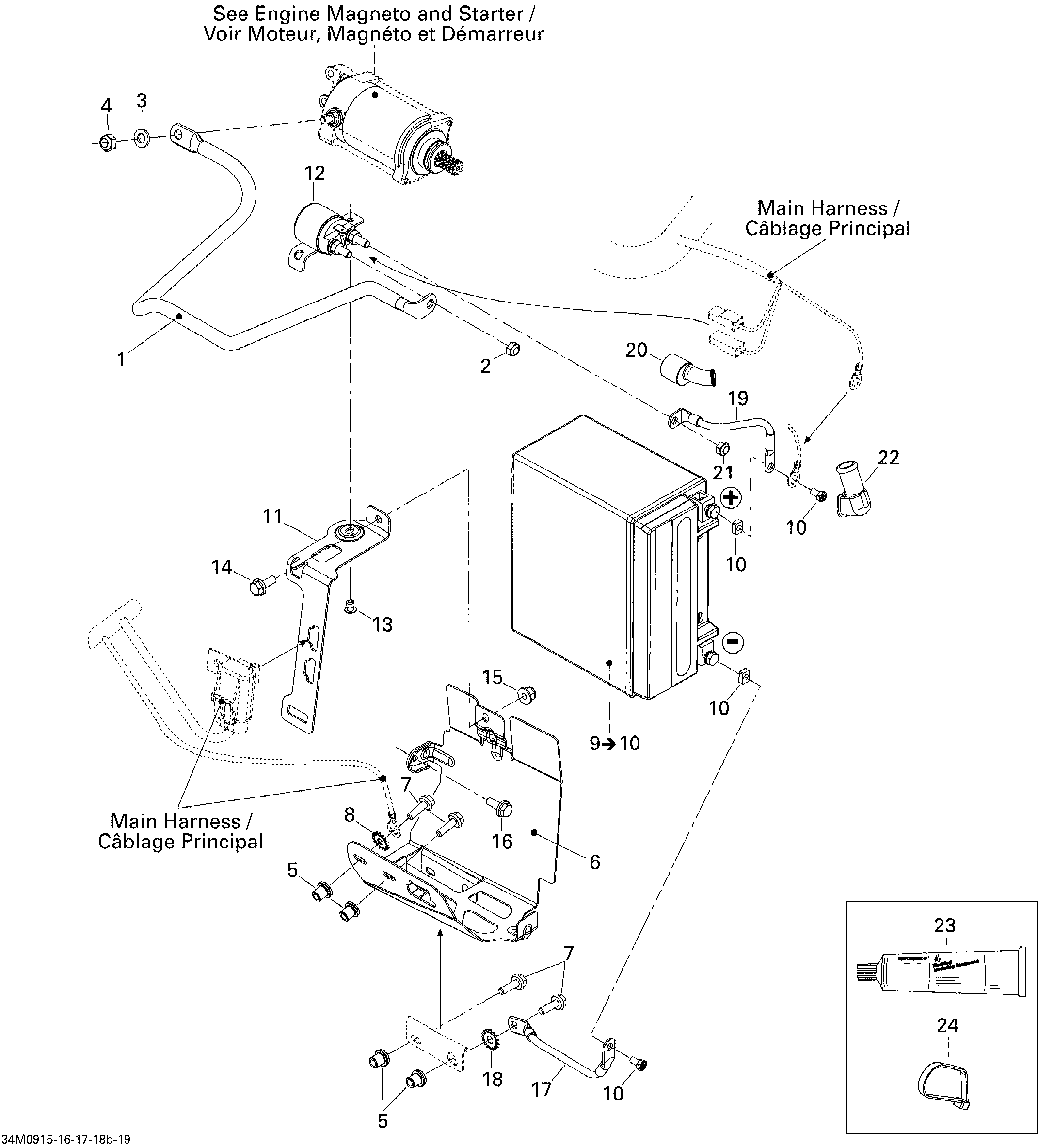

10- Battery And Starter для BRP Ski-Doo MX Z X 1200 4-TEC - 2009

  • №
    Артикул
    Название
  • 1
    515176557 Battery Wire
    Battery Wire
  • 2
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 3
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 4
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    415107300 Insert
    Insert
  • 6
    515176782 Support
    Support
  • 7
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 8
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 9
    415129395 Battery, 18 Amperes. Includes 9 to 10
    Battery, 18 Amperes. Includes 9 to 10
  • 10
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 11
    515176368 Battery Strip
    Battery Strip
  • 12
    515176501 Starter Relay
    Starter Relay
  • 13
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 14
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 16
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 17
    515175749 Ground Wire
    Ground Wire
  • 18
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 19
    515176556 Battery Wire
    Battery Wire
  • 20
    515175919 Protector Cap
    Protector Cap
  • 21
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 22
    710000495 Protector Cap
    Protector Cap
  • 23
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 24
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 24
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 24
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 24
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
