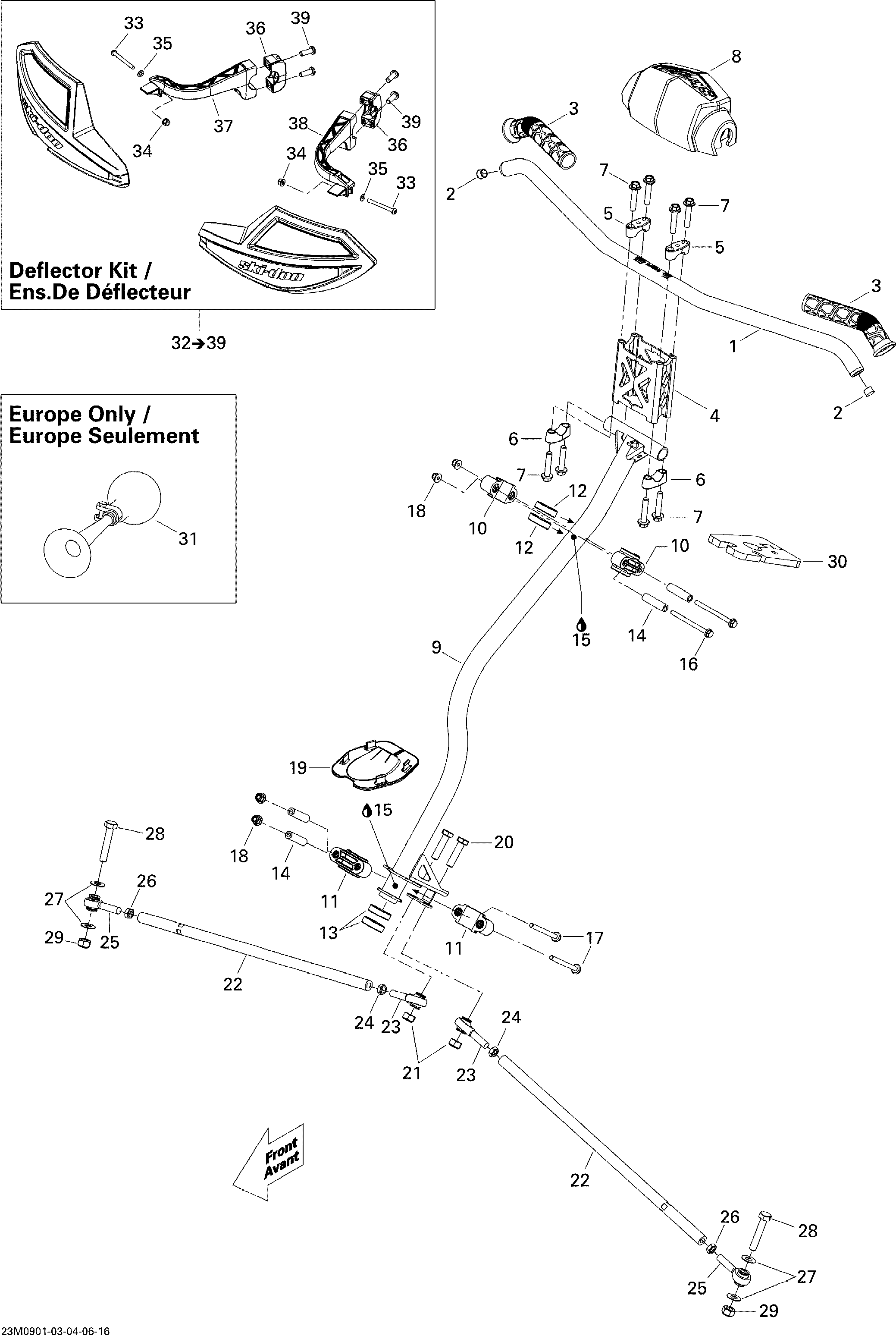

07- Steering для BRP Ski-Doo MX Z X 1200 4-TEC - 2009

  • №
    Артикул
    Название
  • 1
    506152191 Handlebar
    Handlebar
  • 2
    506152425 Cap
    Cap
  • 3
    506152226 Grip
    Grip
  • 4
    860200268 Handlebar Extension
    Handlebar Extension
  • 5
    506152394 Upper Steering Support
    Upper Steering Support
  • 6
    506152395 Lower Steering Support
    Lower Steering Support
  • 7
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 8
    506152192 Steering Pad
    Steering Pad
  • 9
    506152310 Main Tube
    Main Tube
  • 10
    506152219 Upper Half Housing
    Upper Half Housing
  • 11
    506152217 Lower Half Housing
    Lower Half Housing
  • 12
    506152292 Upper Vibration Ring
    Upper Vibration Ring
  • 13
    506152218 Lower Vibration Ring
    Lower Vibration Ring
  • 14
    506152297 Housing Bushing
    Housing Bushing
  • 15
    219700417 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 16
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 17
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 18
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 19
    506152163 Plate
    Plate
  • 20
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 21
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 22
    506152095 Tie Rod
    Tie Rod
  • 23
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
  • 24
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 25
    506152019 RH Thread Ball Joint
    RH Thread Ball Joint
  • 26
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 27
    506152194 Washer
    Washer
  • 28
    207005544 Hex. Screw M10 X 55
    Hex. Screw M10 X 55
  • 29
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 30
    506152334 Cushion
    Cushion
  • 31
    549011291 Horn. Europe
    Horn. Europe
  • 32
    517304110 Deflector Kit. Includes 32 to 39
    Deflector Kit. Includes 32 to 39
  • 33
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 34
    232541484 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 35
    234041480 Flat Washer 4 mm
    Flat Washer 4 mm
  • 36
    517303264 U-Clamp
    U-Clamp
  • 37
    517303590 RH Deflector Support
    RH Deflector Support
  • 38
    517303591 LH Deflector Support
    LH Deflector Support
  • 39
    250000172 Socket Head Screw M6 X 16
    Socket Head Screw M6 X 16
