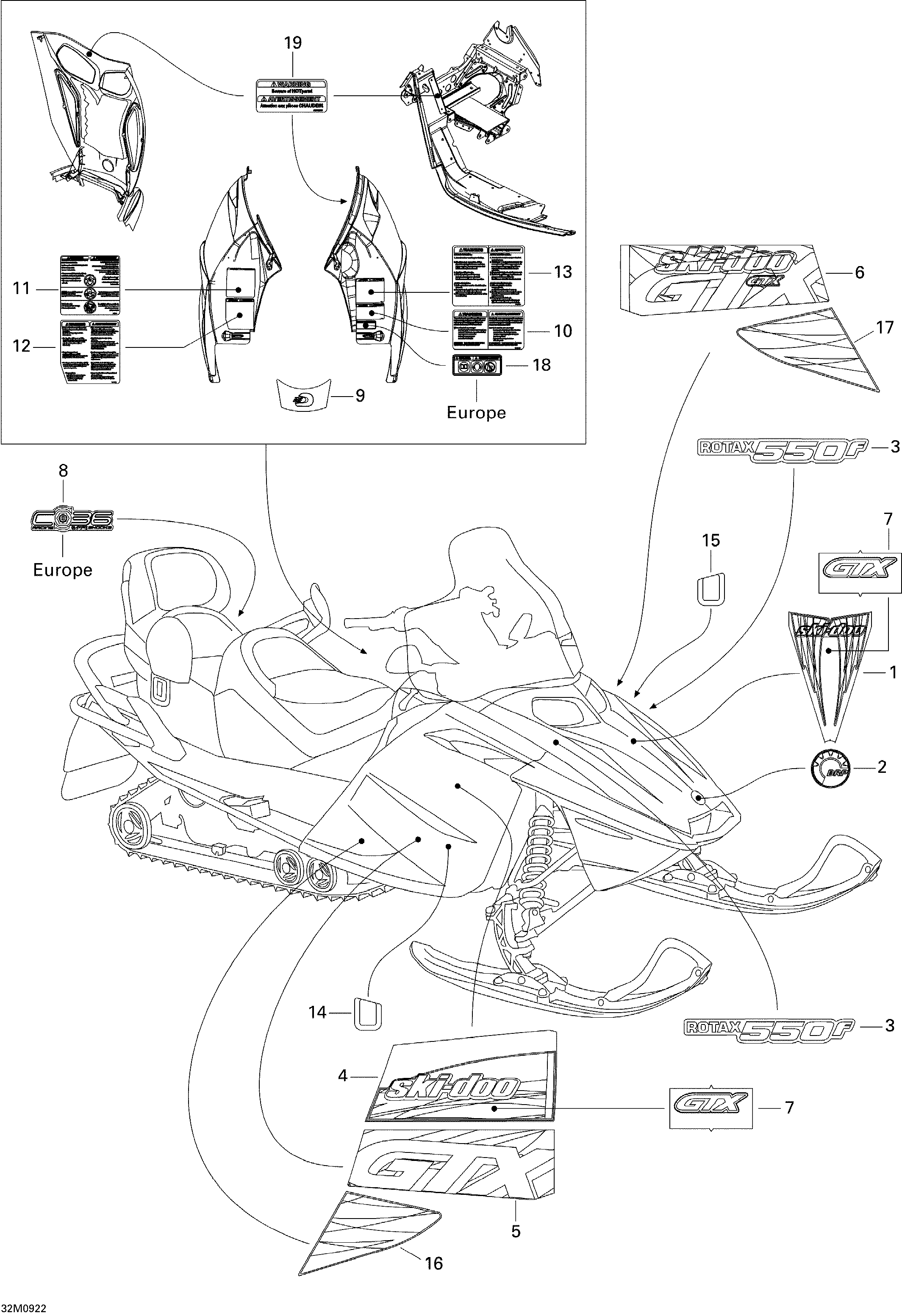

09- Decals для BRP Ski-Doo GTX Fan - 2009
-
№АртикулНазвание
-
1516003372 Hood DecalHood Decal
-
2219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
3516003410 Hood Decal, Rotax 550FHood Decal, Rotax 550F
-
4516003136 RH Side DecalRH Side Decal
-
5516003149 RH Lower Side DecalRH Lower Side Decal
-
6516003218 LH Lower Side DecalLH Lower Side Decal
-
7516003493 RH Hood Decal, GTXRH Hood Decal, GTX
-
8516002548 Suspension Decal. EuropeSuspension Decal. Europe
-
9516001775 Visor DecalVisor Decal
-
10516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
11516002908 Security Label, GeneralSecurity Label, General
-
12516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
13516003024 Security Label, StartingSecurity Label, Starting
-
14516001910 RH Protector DecalRH Protector Decal
-
15516001911 LH Protector DecalLH Protector Decal
-
16516003140 RH Rear Lower DecalRH Rear Lower Decal
-
17516003139 LH Rear Lower DecalLH Rear Lower Decal
-
18516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
19516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
