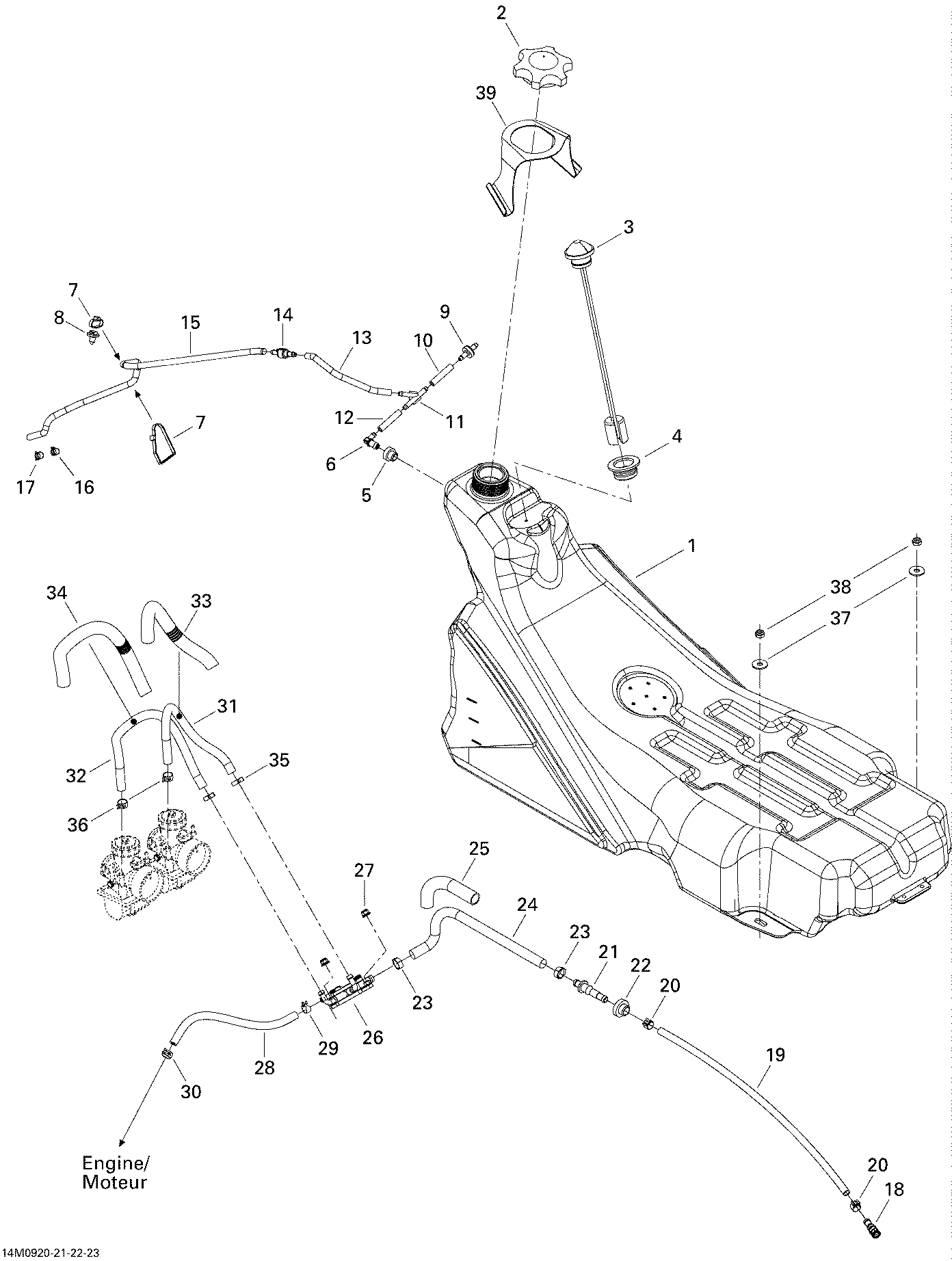

02- Fuel System для BRP Ski-Doo GTX Fan - 2009
-
№АртикулНазвание
-
1513033171 Fuel TankFuel Tank
-
2513033025 CapCap
-
3513033358 Fuel GaugeFuel Gauge
-
4293720058 GrommetGrommet
-
5513032908 GrommetGrommet
-
6414580700 Elbow Male ConnectorElbow Male Connector
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8293730018 Mount DartMount Dart
-
9275500398 Check ValveCheck Valve
-
10415080200 Polyurethane HosePolyurethane Hose
-
11293710059 Y FittingY Fitting
-
12415080200 Polyurethane HosePolyurethane Hose
-
13415080200 Polyurethane HosePolyurethane Hose
-
14513033469 Check ValveCheck Valve
-
15415080200 Polyurethane HosePolyurethane Hose
-
16414554800 Spring ClampSpring Clamp
-
17414554800 Spring ClampSpring Clamp
-
18414872100 Fuel FilterFuel Filter
-
19513033070 HoseHose
-
20513033010 Norma Spring ClampNorma Spring Clamp
-
21414872700 Male ConnectorMale Connector
-
22570273900 GrommetGrommet
-
23293650053 Crimp ClampCrimp Clamp
-
24513033374 Formed HoseFormed Hose
-
25415080000 Tubing 16 mmTubing 16 mm
-
26403901813 Fuel PumpFuel Pump
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28513033111 Formed HoseFormed Hose
-
29414415200 Universal Spring ClampUniversal Spring Clamp
-
30513033029 Spring ClampSpring Clamp
-
31513033022 Hose 8 mm, MeterHose 8 mm, Meter
-
32513033022 Hose 8 mm, MeterHose 8 mm, Meter
-
33415080000 Tubing 16 mmTubing 16 mm
-
34415080000 Tubing 16 mmTubing 16 mm
-
35293650047 Oetiker ClampOetiker Clamp
-
36513033029 Spring ClampSpring Clamp
-
37234082410 Flat Washer 8 mmFlat Washer 8 mm
-
38232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
39513033066 SupportSupport
