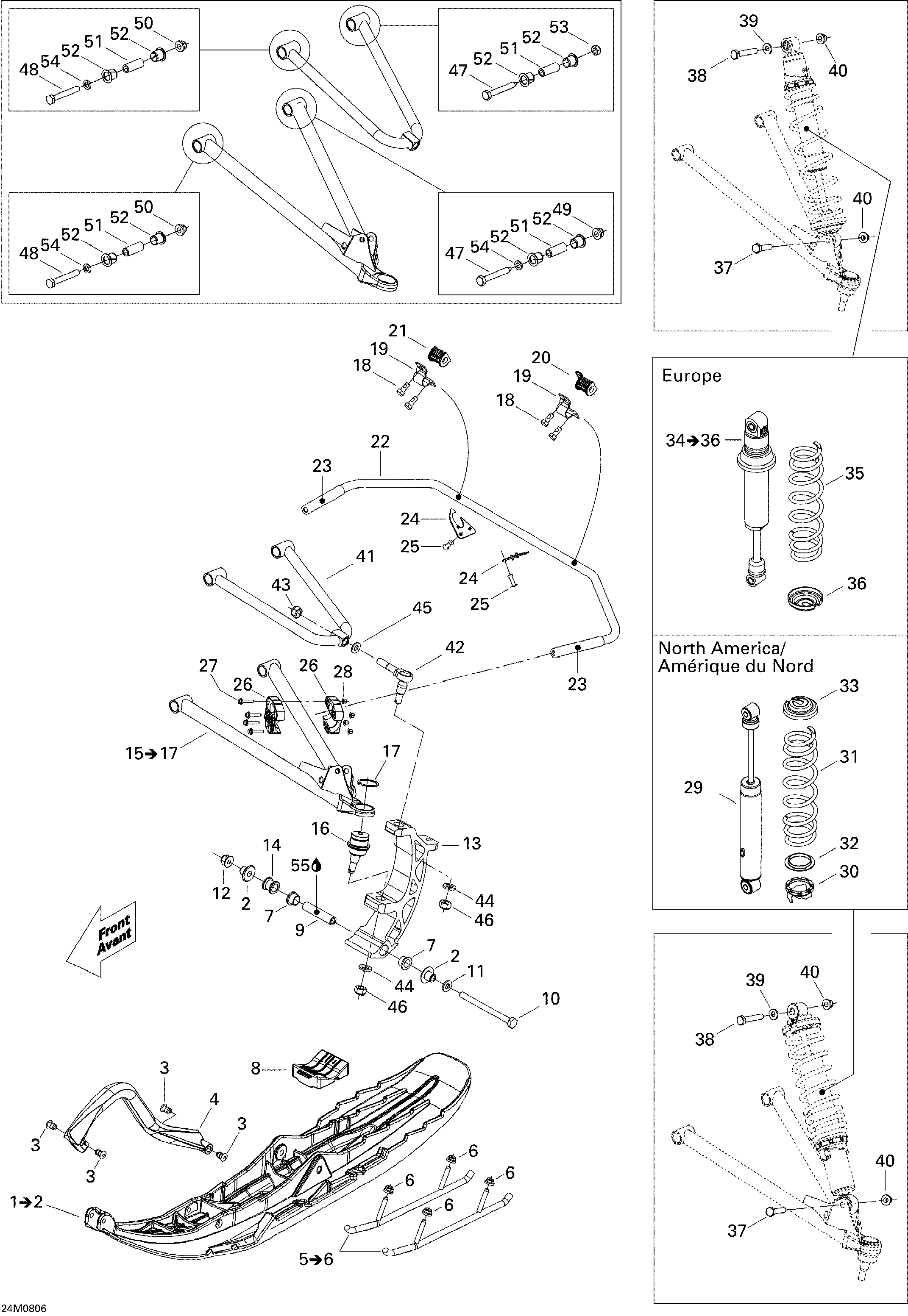

07- Front Suspension And Ski для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2008
-
№АртикулНазвание
-
1505072174 RH Pilot Ski 6.9. Includes 1 to 2RH Pilot Ski 6.9. Includes 1 to 2
-
1505072175 LH Pilot Ski 6.9. Includes 1 to 2LH Pilot Ski 6.9. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, BlackHandle, Black
-
5860200123 Carbide Runner Kit. Includes 5 to 6Carbide Runner Kit. Includes 5 to 6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9505071271 BushingBushing
-
10230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Flanged Nut M10Flanged Nut M10
-
13505071248 Ski LegSki Leg
-
14505071215 SpacerSpacer
-
15860512900 RH Lower Arm Ass'y. Includes 15 to 17RH Lower Arm Ass'y. Includes 15 to 17
-
15860512800 LH Lower Arm Ass'y. Includes 15 to 17LH Lower Arm Ass'y. Includes 15 to 17
-
16505072048 Ball JointBall Joint
-
17293370035 CirclipCirclip
-
18250000118 Hex. Screw With NylonHex. Screw With Nylon
-
19506095800 ClampClamp
-
20505070664 LH BushingLH Bushing
-
21505070912 RH BushingRH Bushing
-
22505070948 StabilisatorStabilisator
-
23505071039 Stabilisator BootStabilisator Boot
-
24505071253 PlugPlug
-
25293150103 Pop RivetPop Rivet
-
26505071268 RH Slider HalfRH Slider Half
-
26505071269 LH Slider HalfLH Slider Half
-
27207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
28233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
29505071455 Front ShockFront Shock
-
30505070150 Adjustment CamAdjustment Cam
-
31505072022 SpringSpring
-
32503191872 Spring GuideSpring Guide
-
33503191611 Spring StopperSpring Stopper
-
34505071457 Front Shock. Includes 34 to 36, EuropeFront Shock. Includes 34 to 36, Europe
-
35505072023 Spring. EuropeSpring. Europe
-
36503191611 Spring Stopper. EuropeSpring Stopper. Europe
-
37207006044 Hex. Screw M10 X 60. EuropeHex. Screw M10 X 60. Europe
-
38207006044 Hex. Screw M10 X 60. EuropeHex. Screw M10 X 60. Europe
-
39503189564 Washer. EuropeWasher. Europe
-
40233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
41505071857 RH Upper ArmRH Upper Arm
-
41505071859 LH Upper ArmLH Upper Arm
-
42505072050 Ball JointBall Joint
-
43250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
44234021410 Flat Washer 12 mmFlat Washer 12 mm
-
45503189276 WasherWasher
-
46250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
47250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
48250000218 Hex. Screw M10 X 75Hex. Screw M10 X 75
-
49250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
50250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
51505070960 Aluminium BushingAluminium Bushing
-
52505070566 Arm BushingArm Bushing
-
53232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
54503189564 WasherWasher
-
55219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
