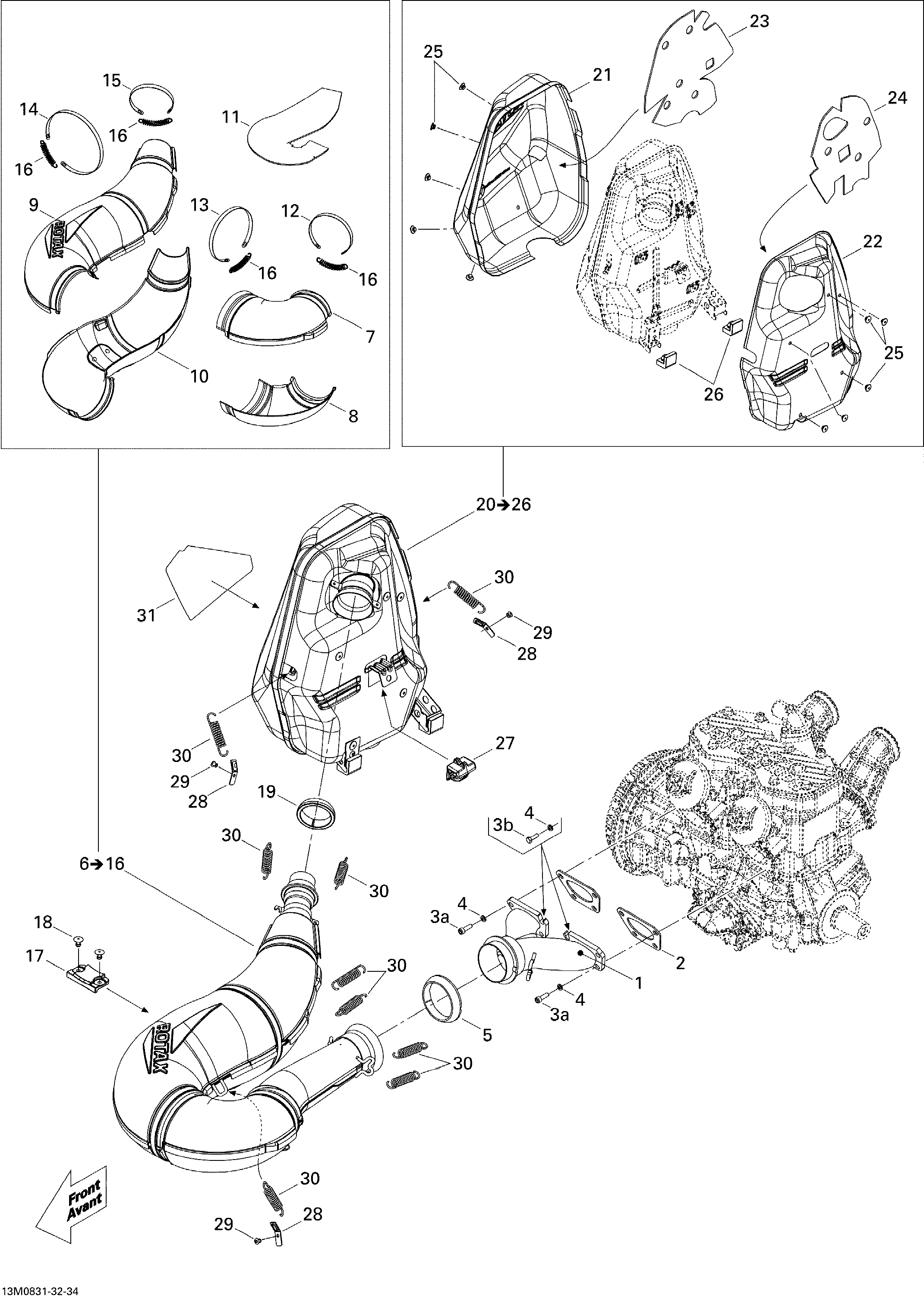

01- Exhaust System для BRP Ski-Doo MX Z TRAIL 500SS - 2008
-
№АртикулНазвание
-
1420673131 Exhaust ManifoldExhaust Manifold
-
2420931610 GasketGasket
-
3a205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
3b207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
4514053837 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054440 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
7514054485 Front Upper EnveloppeFront Upper Enveloppe
-
8514054486 Front Lower EnveloppeFront Lower Enveloppe
-
9514054435 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
17514054275 BumperBumper
-
18293150103 Pop RivetPop Rivet
-
19514053812 Exhaust GasketExhaust Gasket
-
20514054447 Muffler Ass'y. Includes 20 to 26Muffler Ass'y. Includes 20 to 26
-
21514054433 RH DeflectorRH Deflector
-
22514054202 LH DeflectorLH Deflector
-
23514054298 RH Insulating WoolRH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
25390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
26514054274 Lower StopperLower Stopper
-
27514054282 Upper StopperUpper Stopper
-
28514054391 Spring BracketSpring Bracket
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30514054226 SpringSpring
-
31514054488 Reflective SheetReflective Sheet
