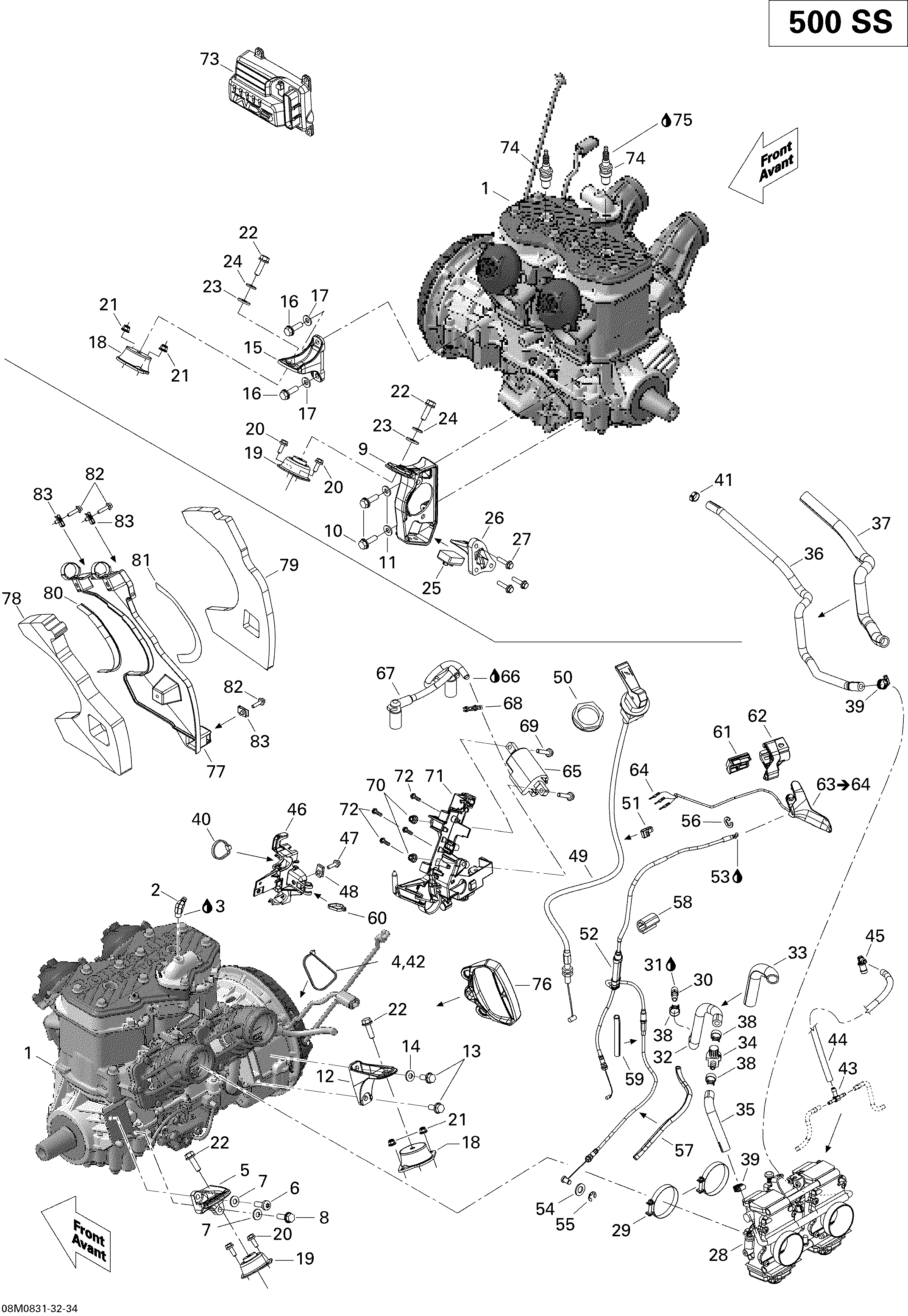

01- Engine And Engine Support для BRP Ski-Doo MX Z TRAIL 500SS - 2008
-
№АртикулНазвание
-
1400509775 Engine 593SSEngine 593SS
-
2293700045 Elbow Fitting 90°Elbow Fitting 90°
-
3293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5512060173 Rear PTO SupportRear PTO Support
-
6250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9512060203 Front PTO SupportFront PTO Support
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12512060114 Rear MAG SupportRear MAG Support
-
13207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060108 Front MAG SupportFront MAG Support
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060246 Rubber MountRubber Mount
-
19512060387 Rubber MountRubber Mount
-
20207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
23503183200 Washer, YellowWasher, Yellow
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060179 StopperStopper
-
26512060180 Stopper SupportStopper Support
-
27207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
28403138800 Carburator Ass'y TM-40Carburator Ass'y TM-40
-
29512059835 Gemi ClampGemi Clamp
-
30512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
31293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
32512060355 Hose FormedHose Formed
-
33415080000 Tubing 16 mmTubing 16 mm
-
34512059324 Valve 5/16''Valve 5/16''
-
35512060353 Hose FormedHose Formed
-
36512060347 Hose FormedHose Formed
-
37415080000 Tubing 16 mmTubing 16 mm
-
38414655700 Spring ClampSpring Clamp
-
39293650170 Hose ClampHose Clamp
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293650025 Oetiker ClampOetiker Clamp
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43572045500 T-ConnectorT-Connector
-
44415080200 Polyurethane HosePolyurethane Hose
-
45414580700 Elbow Male ConnectorElbow Male Connector
-
46512060298 Solenoid SupportSolenoid Support
-
47207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
48250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
49512060153 Choke CableChoke Cable
-
50512060016 Plastic NutPlastic Nut
-
51414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
52512060132 Throttle CableThrottle Cable
-
53293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
54234081100 Flat Washer 8 mmFlat Washer 8 mm
-
55414753500 CirclipCirclip
-
56414274500 CirclipCirclip
-
57515175442 Tubing 6 mmTubing 6 mm
-
58512060313 ProtectorProtector
-
59415079900 Tubing 10 mmTubing 10 mm
-
60414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
61512060198 Upper HousingUpper Housing
-
62512060197 Lower HousingLower Housing
-
63512060219 Throttle Handle Ass'y. Includes 63 to 64Throttle Handle Ass'y. Includes 63 to 64
-
64515175232 Male TerminalMale Terminal
-
65512059968 Ignition CoilIgnition Coil
-
66293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
67512060291 Cable Ass'yCable Ass'y
-
68410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
69207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
70233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
71512060278 Coil SupportCoil Support
-
72241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
73512060262 Calibrated Module 500SSCalibrated Module 500SS
-
74512060354 Spark Plug, BR10ECSSpark Plug, BR10ECS
-
75293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
76512060136 Starter GripStarter Grip
-
77512060338 Noise ShieldNoise Shield
-
78512060341 Inner Noise FoamInner Noise Foam
-
79512060342 Outer Noise FoamOuter Noise Foam
-
80512060358 Reflective SheetReflective Sheet
-
81512060371 Reflective SheetReflective Sheet
-
82207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
83250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
