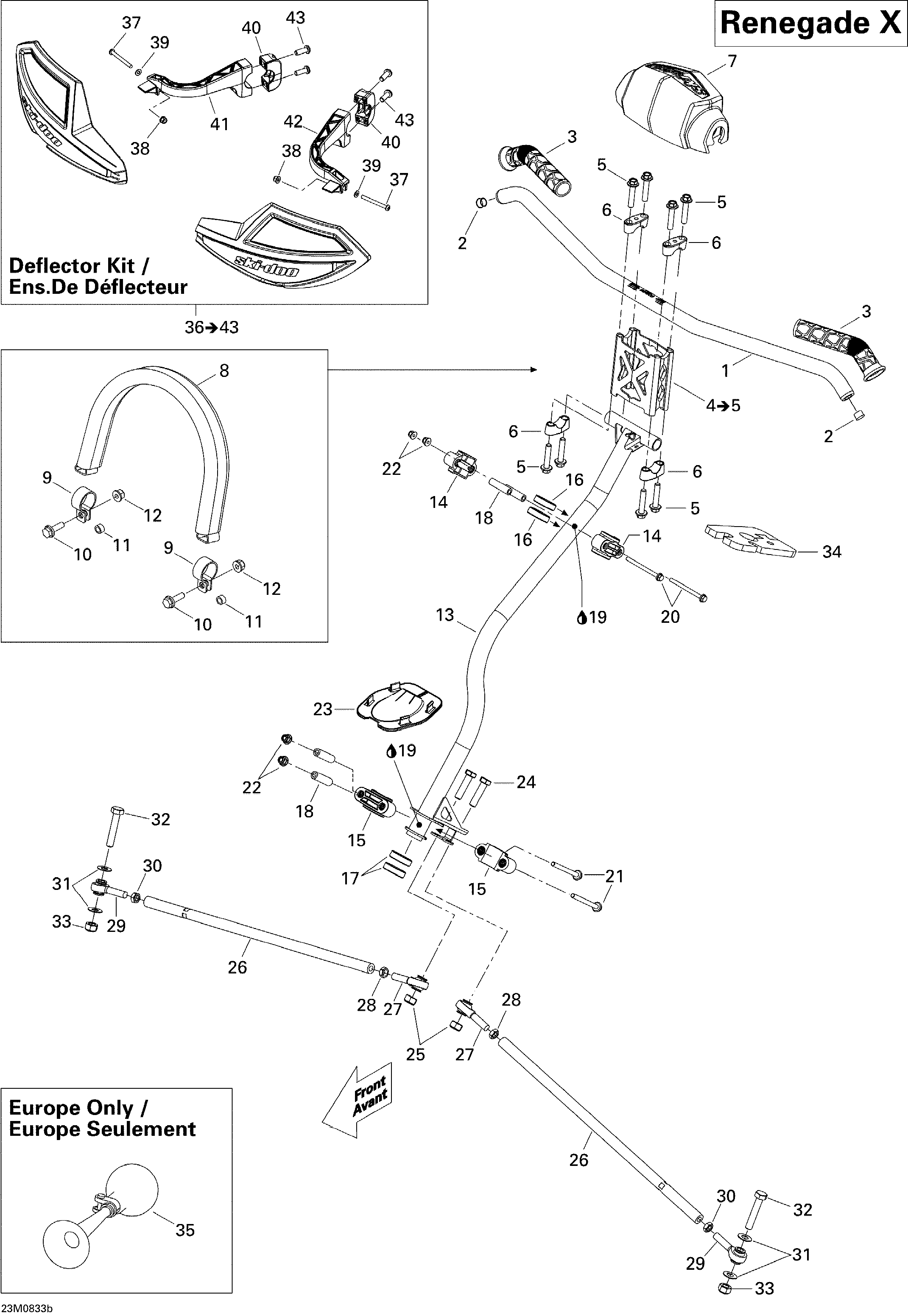

07- Steering X для BRP Ski-Doo MX Z RENEGADE X 800R - 2008
-
№АртикулНазвание
-
1506152191 HandlebarHandlebar
-
2572051500 CapCap
-
3506152226 GripGrip
-
4860200121 Steering Riser Kit. Includes 4 to 5Steering Riser Kit. Includes 4 to 5
-
5250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
6506152175 Steering SupportSteering Support
-
7506152192 Steering PadSteering Pad
-
8506152115 Strap Ass'yStrap Ass'y
-
9506151792 Support Plate, BlackSupport Plate, Black
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11506152156 BushingBushing
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13506152294 Main TubeMain Tube
-
14506152219 Upper Half HousingUpper Half Housing
-
15506152217 Lower Half HousingLower Half Housing
-
16506152292 Upper Vibration RingUpper Vibration Ring
-
17506152218 Lower Vibration RingLower Vibration Ring
-
18506152297 Housing BushingHousing Bushing
-
19219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21207666534 Hex. Flanged Screw M6 x 65Hex. Flanged Screw M6 x 65
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152095 Tie RodTie Rod
-
27506152081 LH Thread Ball JointLH Thread Ball Joint
-
28250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
29506152019 RH Thread Ball JointRH Thread Ball Joint
-
30732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
31506152194 WasherWasher
-
32207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34506152334 CushionCushion
-
35549011291 Horn. EuropeHorn. Europe
-
36517303793 Deflector Kit. Includes 36 to 43Deflector Kit. Includes 36 to 43
-
37205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
38232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
39234041480 Flat Washer 4 mmFlat Washer 4 mm
-
40517303264 U-ClampU-Clamp
-
41517303590 RH Deflector SupportRH Deflector Support
-
42517303591 LH Deflector SupportLH Deflector Support
-
43250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
