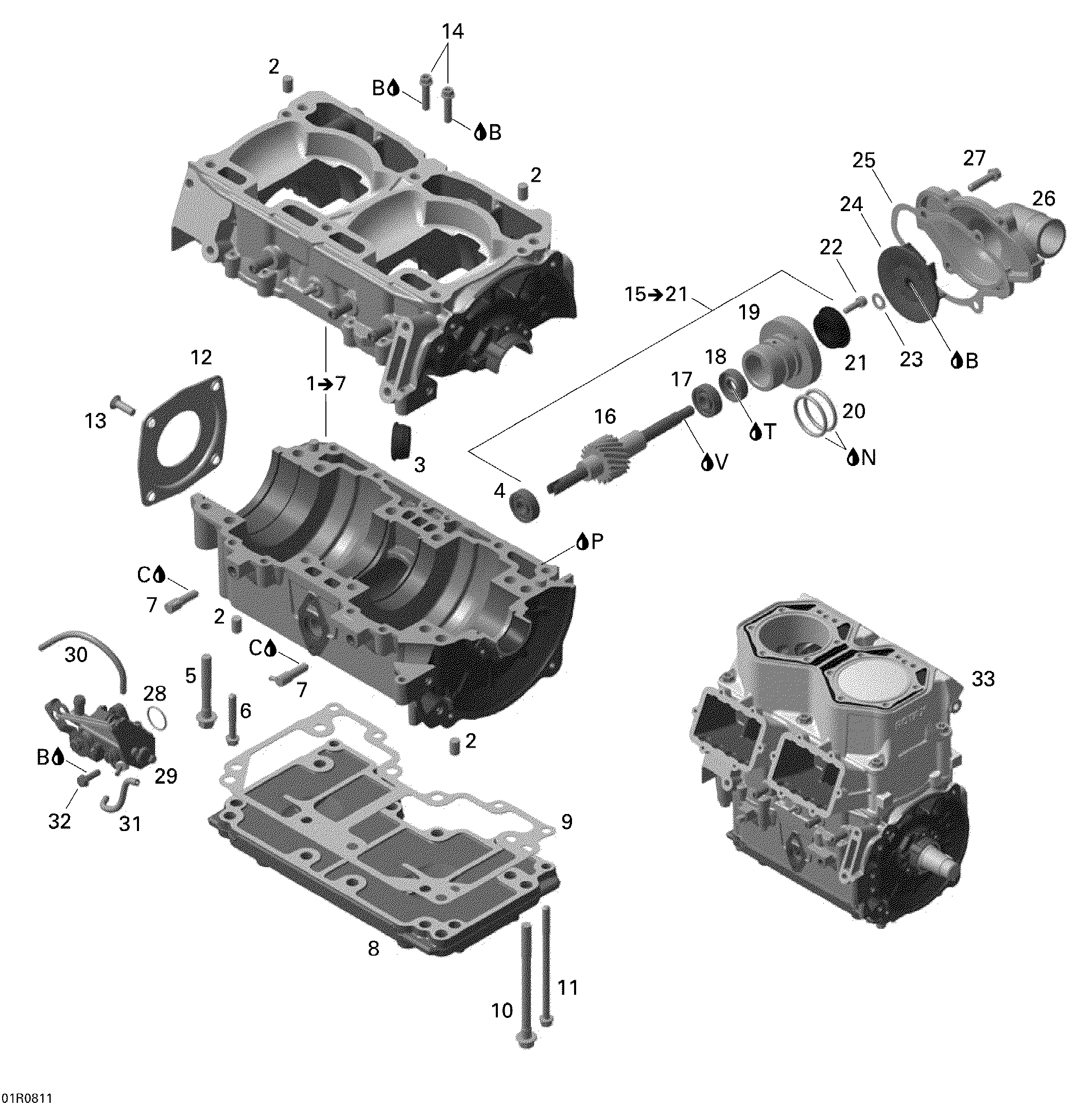

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo MX Z RENEGADE X 800R - 2008
-
№АртикулНазвание
-
1420890744 Crankcase Ass'y. Includes 1 to 7Crankcase Ass'y. Includes 1 to 7
-
2420632010 Pin 8 X 12Pin 8 X 12
-
3420860965 Cable GrommetCable Grommet
-
4420232100 Ball BearingBall Bearing
-
5420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
6420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
-
7420956510 Check ValveCheck Valve
-
8420812682 Engine SupportEngine Support
-
9420430070 Gasket Engine SupportGasket Engine Support
-
10420941517 Hex. Screw M8 X 105Hex. Screw M8 X 105
-
11420440612 Flanged Torx Screw M6 X 105Flanged Torx Screw M6 X 105
-
12420812420 CoverCover
-
13420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
14420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420837676 Water Pump/Oil Pump Shaft Ass'y. Includes 15 to 21Water Pump/Oil Pump Shaft Ass'y. Includes 15 to 21
-
17420232100 Ball BearingBall Bearing
-
18420230196 Oil SealOil Seal
-
20420950890 O-RingO-Ring
-
21420650370 Rotary SealRotary Seal
-
22420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
23420944033 Washer 8.4Washer 8.4
-
24420922805 Water ImpellerWater Impeller
-
25420430050 GasketGasket
-
26420822280 Water Pump HousingWater Pump Housing
-
27420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
28293300041 O-RingO-Ring
-
29420888774 Oil Pump Ass'yOil Pump Ass'y
-
30414413800 Oil LineOil Line
-
31414413800 Oil LineOil Line
-
32420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
33420079705 Short Block 797 XPShort Block 797 XP
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
N413707000 Dow Corning 111, 150 GDow Corning 111, 150 G
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
T420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
-
V413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
