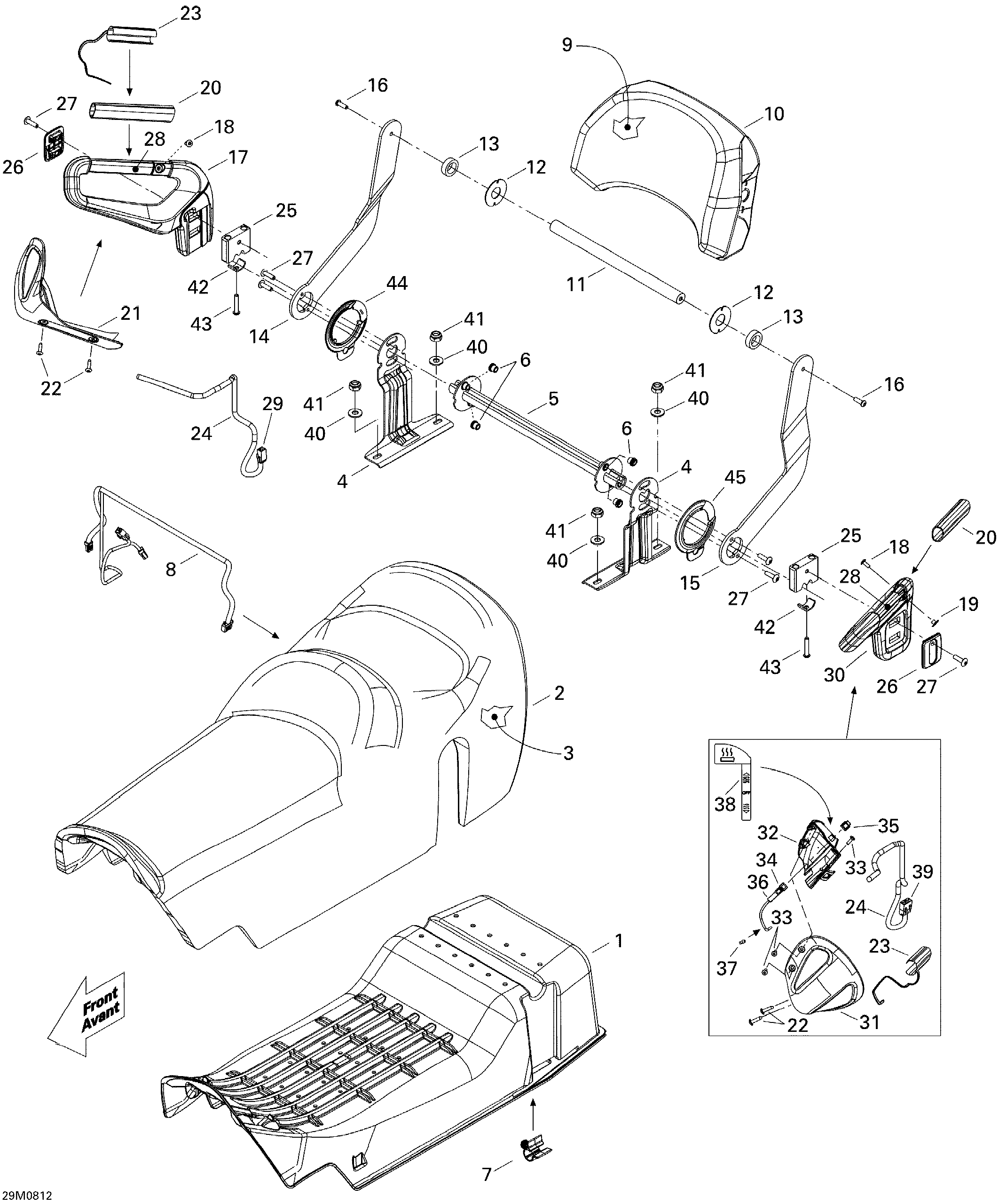

09- Seat для BRP Ski-Doo Legend Touring V800 - 2008
-
№АртикулНазвание
-
1510004887 Seat BaseSeat Base
-
2510004855 Seat CoverSeat Cover
-
3510004670 FoamFoam
-
4510004662 T PlateT Plate
-
5510004663 Cross MemberCross Member
-
6293450166 InsertInsert
-
7275500528 Hose RetainerHose Retainer
-
8510004882 Seat Electrical HarnessSeat Electrical Harness
-
9510004365 Backrest FoamBackrest Foam
-
10510004858 Backress CoverBackress Cover
-
11510004377 Upper Backrest AxleUpper Backrest Axle
-
12510004379 WasherWasher
-
13510004378 Rubber ShimRubber Shim
-
14510004373 RH Arm, BlackRH Arm, Black
-
15510004375 LH Arm, BlackLH Arm, Black
-
16205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
17510004948 RH HandleRH Handle
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
19293100003 Nut M6Nut M6
-
20510004449 Handle GripHandle Grip
-
21510004415 RH DeflectorRH Deflector
-
22250000199 Screw 25mmScrew 25mm
-
23515176393 HeaterHeater
-
24515175506 TubingTubing
-
25510004530 Handle LinkHandle Link
-
26510004405 MouldingMoulding
-
27250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
28510004709 Handle ReinforforcementHandle Reinforforcement
-
29515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
30510004947 LH HandleLH Handle
-
31510004416 LH DeflectorLH Deflector
-
32510004566 Switch HousingSwitch Housing
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
34510004413 Rocker SwitchRocker Switch
-
35510004414 Protector SwitchProtector Switch
-
36515176241 LH Handle HarnessLH Handle Harness
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38516002835 Handle Heater DecalHandle Heater Decal
-
39515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
40234082410 Flat Washer 8 mmFlat Washer 8 mm
-
41232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
42510004565 Handle ClampHandle Clamp
-
43250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
44510004883 Spacer RHSpacer RH
-
45510004884 Spacer LHSpacer LH
