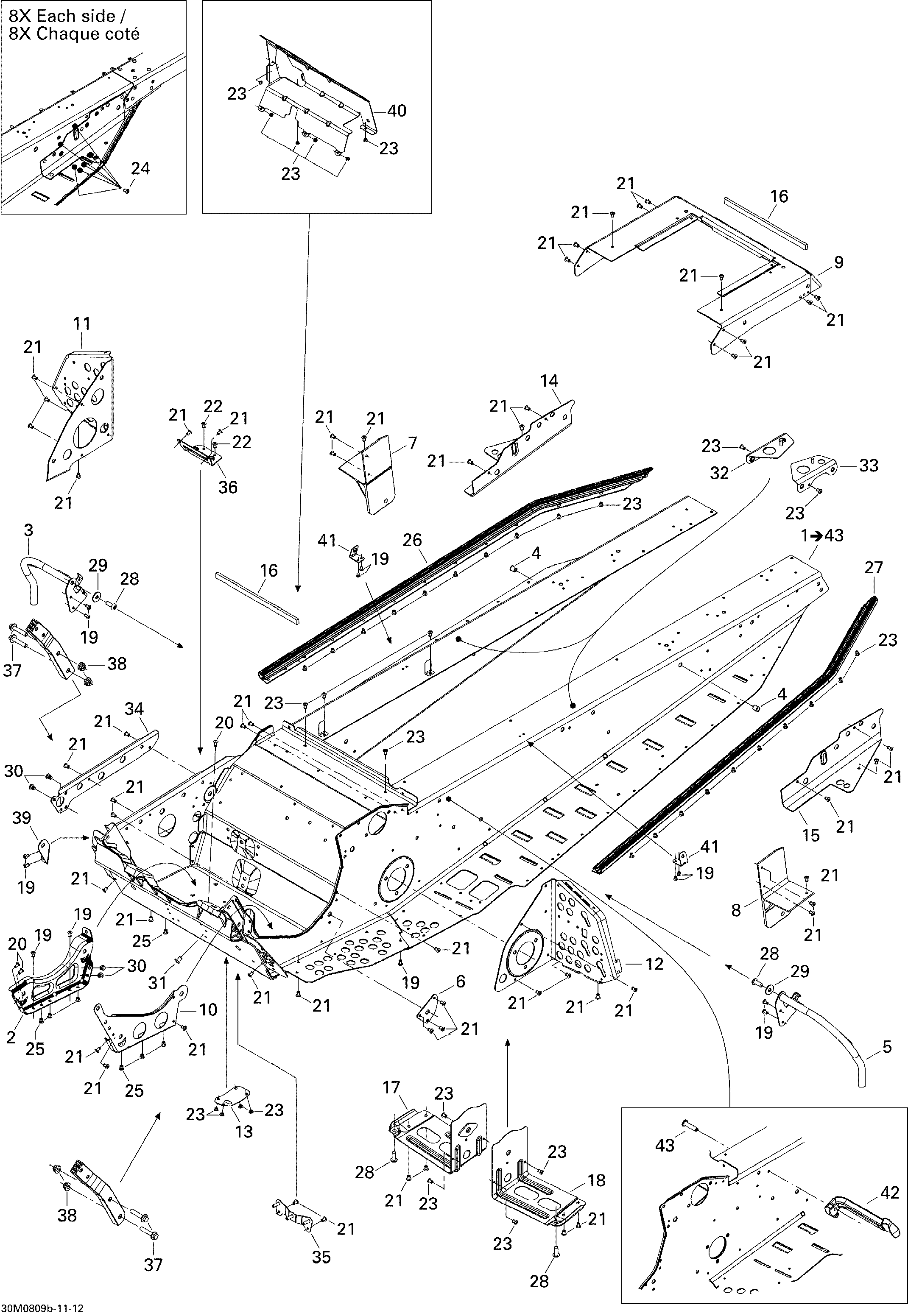

09- Frame для BRP Ski-Doo Legend Touring V800 - 2008

  • №
    Артикул
    Название
  • 1
    415129311 Frame 136 Ass'y. Includes 1 to 43
    Frame 136 Ass'y. Includes 1 to 43
  • 2
    518323346 Engine Support, Black
    Engine Support, Black
  • 3
    518324162 RH Toe Hold Support
    RH Toe Hold Support
  • 4
    415107300 Insert
    Insert
  • 5
    518324163 LH Toe Hold Support
    LH Toe Hold Support
  • 6
    518323507 Outer Reinforcement
    Outer Reinforcement
  • 7
    518325343 RH Slide Bracket
    RH Slide Bracket
  • 8
    518325344 LH Slide Bracket
    LH Slide Bracket
  • 9
    518324831 Extention Frame
    Extention Frame
  • 10
    518323995 Inner Reinforcement, Black
    Inner Reinforcement, Black
  • 11
    518325196 RH Footrest Reinforcement
    RH Footrest Reinforcement
  • 12
    518324527 LH Footrest Reinforcement
    LH Footrest Reinforcement
  • 13
    518324169 Plate
    Plate
  • 14
    518325039 RH Tunnel Liner
    RH Tunnel Liner
  • 15
    518325040 LH Tunnel Liner
    LH Tunnel Liner
  • 16
    293200104 Gasket
    Gasket
  • 17
    518325345 RH Footrest Reinforcement, Black
    RH Footrest Reinforcement, Black
  • 18
    518325346 LH Footrest Reinforcement, Black
    LH Footrest Reinforcement, Black
  • 19
    390909200 Avex Rivet
    Avex Rivet
  • 20
    390909100 Avex Rivet
    Avex Rivet
  • 21
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 22
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 23
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 25
    390910300 Henrob Rivet
    Henrob Rivet
  • 26
    518324957 RH Roller
    RH Roller
  • 27
    518324958 LH Roller
    LH Roller
  • 28
    205982086 Socket Head Screw M8 X 20, Scotch Grip
    Socket Head Screw M8 X 20, Scotch Grip
  • 29
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 30
    293150096 Rivet
    Rivet
  • 31
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 32
    518324385 RH Frame Reinforcement, Black
    RH Frame Reinforcement, Black
  • 33
    518324386 LH Frame Reinforcement, Black
    LH Frame Reinforcement, Black
  • 34
    518323328 RH Tunnel Stiffener
    RH Tunnel Stiffener
  • 35
    518324599 Holder
    Holder
  • 36
    518324207 Holder Plate
    Holder Plate
  • 37
    207684044 Hex. Flanged Screw M8 X 40
    Hex. Flanged Screw M8 X 40
  • 38
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 39
    518324906 RH Support
    RH Support
  • 40
    514054097 Heat Shield
    Heat Shield
  • 41
    518324688 Trunk Bracket
    Trunk Bracket
  • 42
    517302448 Panel Latch
    Panel Latch
  • 43
    390410100 Pop Rivet 3/16''
    Pop Rivet 3/16''
