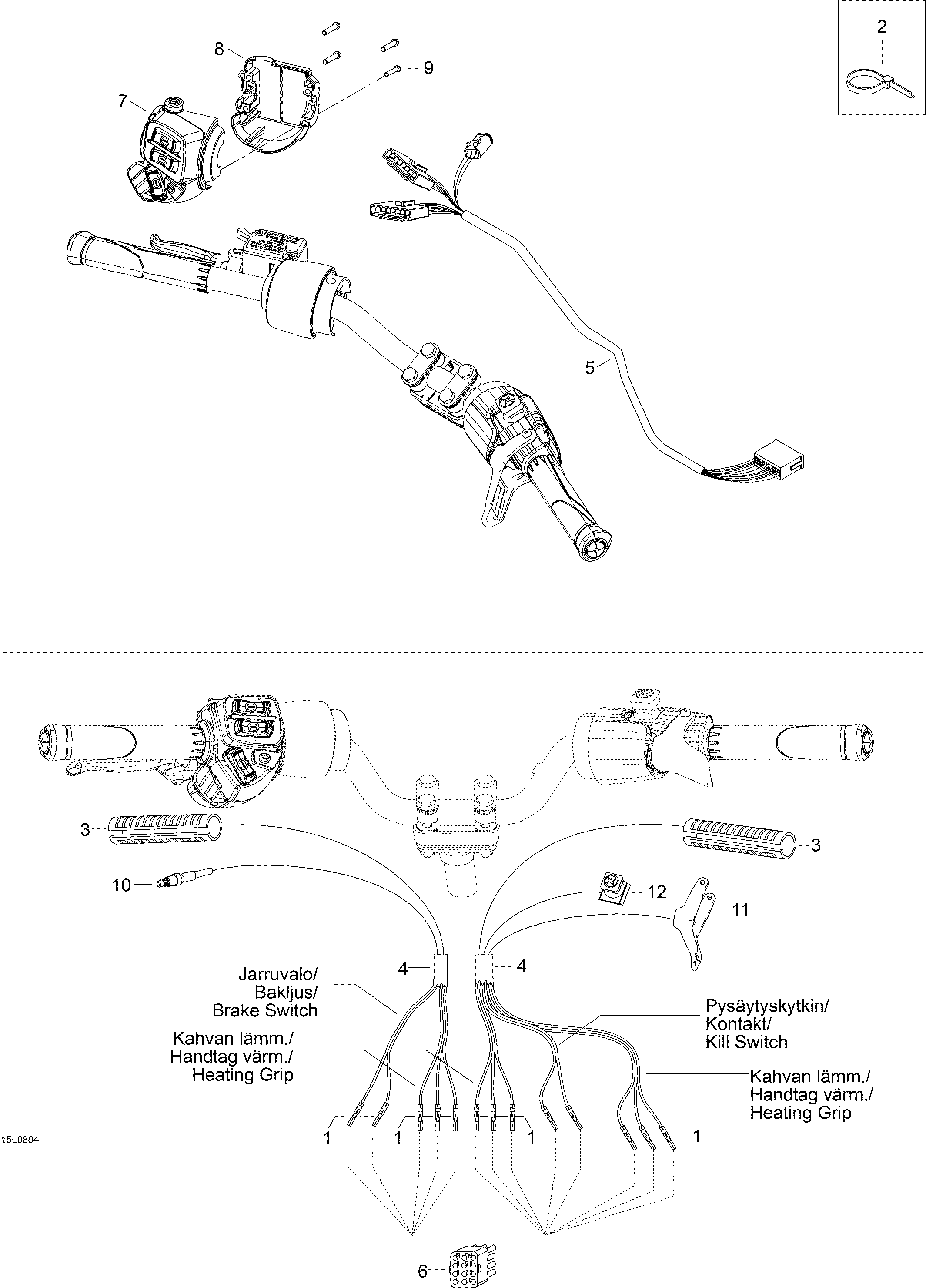

10- Steering harness для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1605642628 ConnectorConnector
-
2M27100 Tie Rap 290 mmTie Rap 290 mm
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175664 Heating GripHeating Grip
-
4M39023 HousingHousing
-
5605353265 Steering HarnessSteering Harness
-
-605354651 Main Harness. Ei naytetty kuvassaMain Harness. Ei naytetty kuvassa
-
6M42617 Male Connector HousingMale Connector Housing
-
7515176015 LH Switch HousingLH Switch Housing
-
8515175926 Housing Switch PlateHousing Switch Plate
-
9M40903 Screw 3.5X25Screw 3.5X25
-
10507032366 MicroswitchMicroswitch
-
11512059481 Throttle HandleThrottle Handle
-
12515175410 Kill SwitchKill Switch
