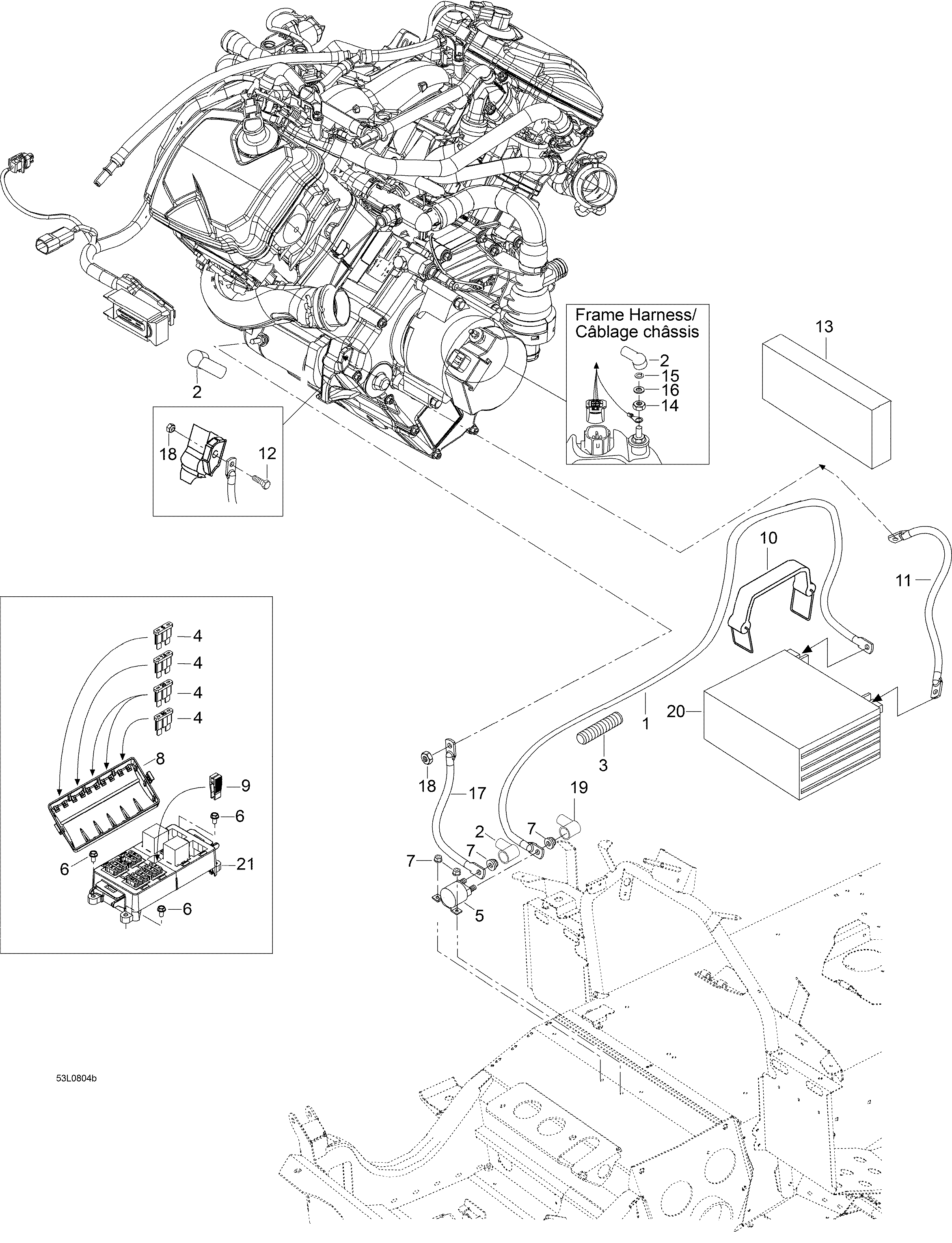

10- Electric Starter для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1605355251 Battery WireBattery Wire
-
2570151000 Protection CapProtection Cap
-
3M28015 HousingHousing
-
4278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
4278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
4409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
4410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
4M42044 Fuse 1 AFuse 1 A
-
4710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
5515176011 Starter RelayStarter Relay
-
6210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
7M33200 Nut M6Nut M6
-
8515176066 CoverCover
-
9515175811 Fuse ToolFuse Tool
-
10605352573 Steel StripSteel Strip
-
11605455189 Ground WireGround Wire
-
12M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
13605352572 CoverCover
-
14M20017 Serrated Lock WasherSerrated Lock Washer
-
15232061414 Hex. Nut M6Hex. Nut M6
-
16234161471 Lock Washer M6, BlackLock Washer M6, Black
-
17605355251 Battery WireBattery Wire
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19278001771 Protector CapProtector Cap
-
20410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
21515176065 Fuse Box BaseFuse Box Base
