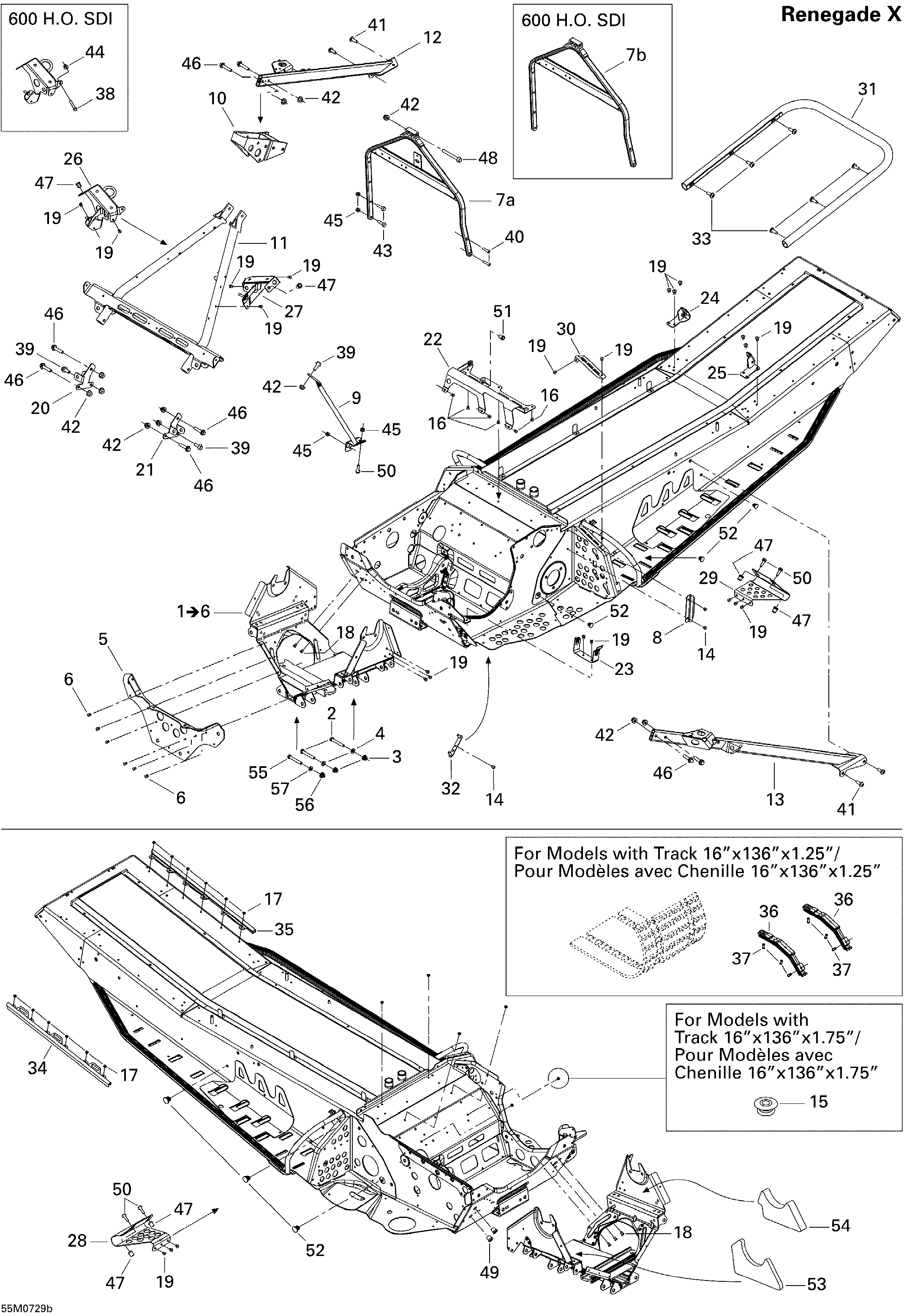

09- Frame and Components RENX 600 для BRP Ski-Doo MX Z Renegade X 600 HO SDI - 2007
-
№АртикулНазвание
-
1518325423 Cross Member. Includes 1 to 6Cross Member. Includes 1 to 6
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6390909100 Avex RivetAvex Rivet
-
7b518324505 Handle SupportHandle Support
-
8518317504 Cable ProtectorCable Protector
-
9518323472 Brace, BlackBrace, Black
-
10518323854 Bracket BlockBracket Block
-
11518324739 Upper Cross MemberUpper Cross Member
-
12518324182 RH MemberRH Member
-
13518324183 LH MemberLH Member
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390909100 Avex RivetAvex Rivet
-
19390909200 Avex RivetAvex Rivet
-
20518322461 RH Shock BracketRH Shock Bracket
-
21518322462 LH Shock BracketLH Shock Bracket
-
22518323532 Intake Air Admission SupportIntake Air Admission Support
-
23518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
24518323769 RH Bracket, BlackRH Bracket, Black
-
25518323770 LH Bracket, BlackLH Bracket, Black
-
26518323535 RH Console SupportRH Console Support
-
27518323536 LH Console SupportLH Console Support
-
28518324391 RH Toe HoldRH Toe Hold
-
29518324392 LH Toe HoldLH Toe Hold
-
30518323105 Plate, BlackPlate, Black
-
31518324832 Rear BumperRear Bumper
-
31518325228 Rear Bumper. EuropeRear Bumper. Europe
-
32518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
33236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
34518325199 RH Wire ProtectorRH Wire Protector
-
35518325200 LH Wire ProtectorLH Wire Protector
-
36518324071 Front ProtectorFront Protector
-
37390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
38207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
39207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
40205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
41250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
42233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
43207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
44233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
45233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
46207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
47415107300 InsertInsert
-
48207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
49293450166 InsertInsert
-
50207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
51293450232 InsertInsert
-
52518321954 Fastener PanelFastener Panel
-
53518323453 RH Front FoamRH Front Foam
-
54518323007 LH Front FoamLH Front Foam
-
55207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
56233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
57234081410 Flat Washer 8 mmFlat Washer 8 mm
