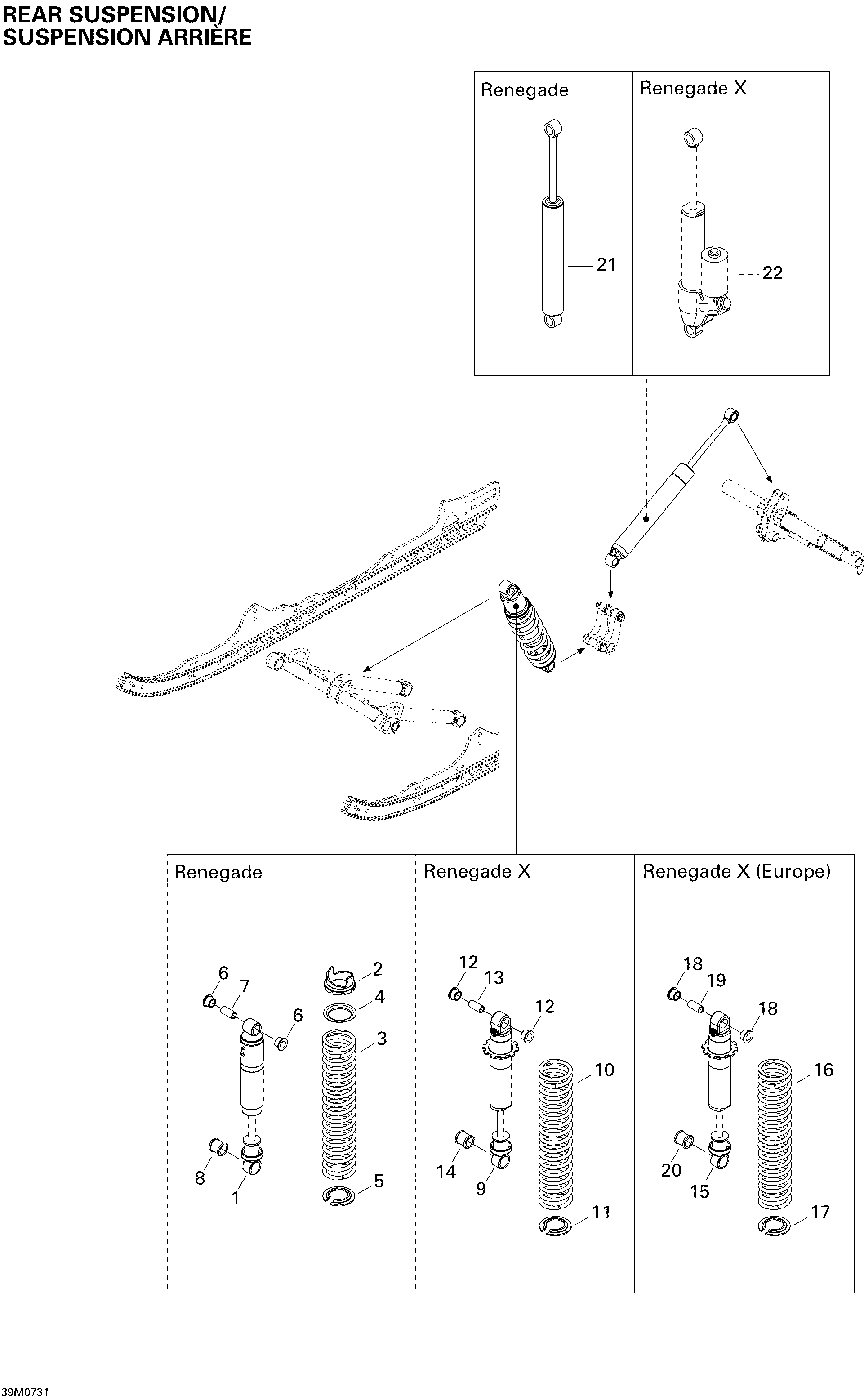

08- Rear Suspension Shocks для BRP Ski-Doo MX Z 1000 SDI Renegade RT - 2007
-
№АртикулНазвание
-
1503190663 Center Shock. RenegadeCenter Shock. Renegade
-
2505070150 Cam 45°. RenegadeCam 45°. Renegade
-
3503191135 Spring. RenegadeSpring. Renegade
-
4517184300 Spring Guide. RenegadeSpring Guide. Renegade
-
5503189912 Spring Stopper. RenegadeSpring Stopper. Renegade
-
6503189117 Cushion. RenegadeCushion. Renegade
-
7503189282 Bushing. RenegadeBushing. Renegade
-
8503189271 Cushion. RenegadeCushion. Renegade
-
9503191203 Center Shock. Renegade XCenter Shock. Renegade X
-
10503189325 Spring. Renegade XSpring. Renegade X
-
11503189912 Spring Stopper. Renegade XSpring Stopper. Renegade X
-
12503189117 Cushion. Renegade XCushion. Renegade X
-
13503189282 Bushing. Renegade XBushing. Renegade X
-
14503189271 Cushion. Renegade XCushion. Renegade X
-
15503191220 Center Shock. EUROPECenter Shock. EUROPE
-
16503189325 Spring. EUROPESpring. EUROPE
-
17503189912 Spring Stopper. EUROPESpring Stopper. EUROPE
-
18503189117 Cushion. EUROPECushion. EUROPE
-
19503189282 Bushing. EUROPEBushing. EUROPE
-
20503189271 Cushion. EUROPECushion. EUROPE
-
21503190728 Rear Shock. RenegadeRear Shock. Renegade
-
22503190729 Rear Shock. Renegade XRear Shock. Renegade X
