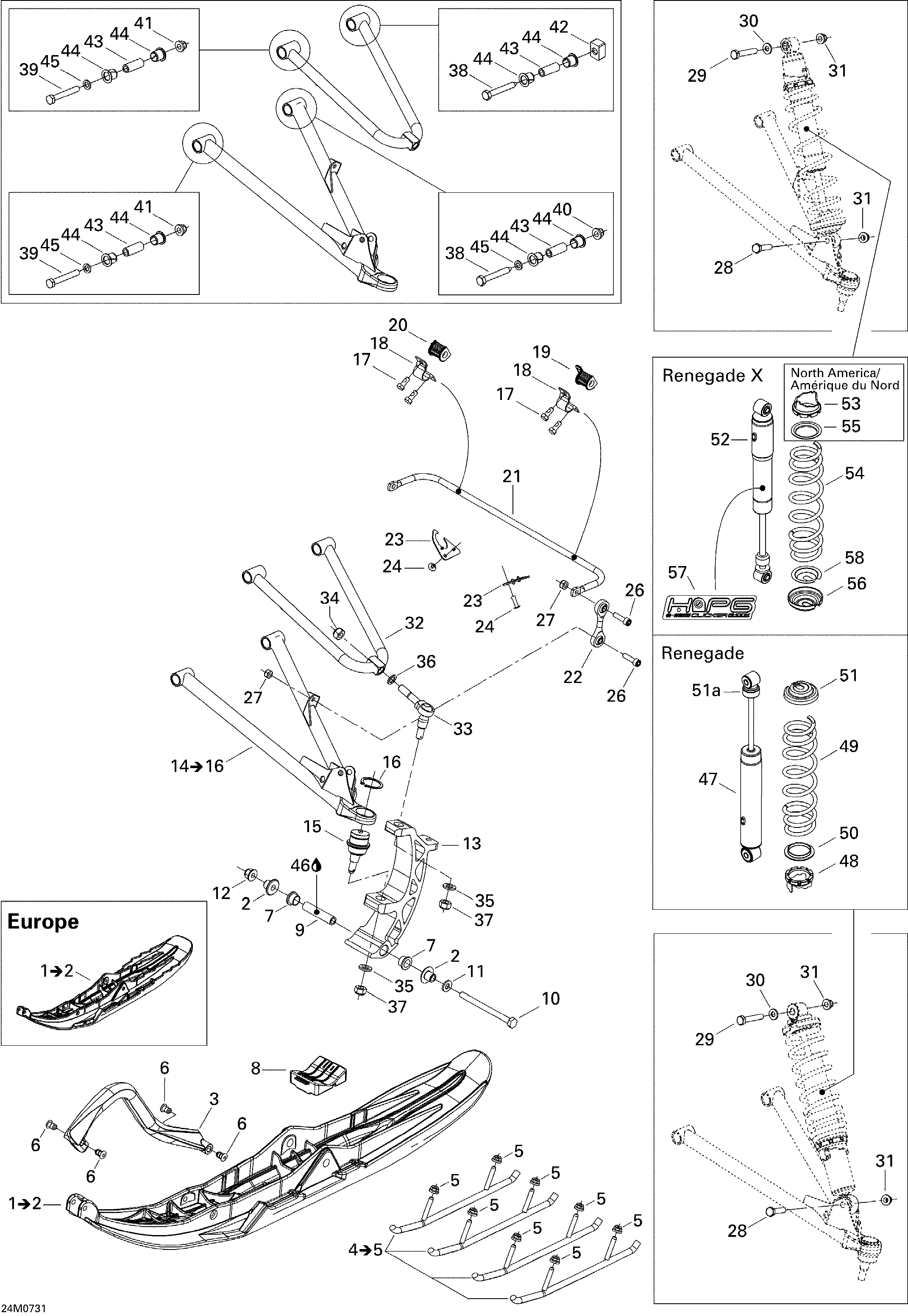

07- Front Suspension And Ski для BRP Ski-Doo MX Z 1000 SDI Renegade RT - 2007

№

Артикул

Название
1

505072154 RH Pilot SKI 5.7, Black. Includes 1 to 2

RH Pilot SKI 5.7, Black. Includes 1 to 2
1

505072155 LH Pilot SKI 5.7, Black

LH Pilot SKI 5.7, Black
2

505071781 Cushion

Cushion
3

505070917 Handle, Yellow

Handle, Yellow
3

505070963 Handle, Black. REN (Black-Yellow)

Handle, Black. REN (Black-Yellow)
4

860511400 Carbide Runner Kit. Includes 4 to 5

Carbide Runner Kit. Includes 4 to 5
5

233281414 Hex Flanged Elastic Nut M8

Hex Flanged Elastic Nut M8
6

505071812 Retainer

Retainer
7

505070954 Cushion

Cushion
8

505071779 Ski Stopper

Ski Stopper
9

505071271 Bushing

Bushing
10

230003044 Hex Screw M10 X 130

Hex Screw M10 X 130
11

732900049 Washer

Washer
12

732610084 Flanged Nut M10

Flanged Nut M10
13

505071232 Ski Leg

Ski Leg
14

860512300 RH Lower Arm Ass'y. Includes 14 to 16

RH Lower Arm Ass'y. Includes 14 to 16
14

860513300 RH Lower Arm Ass'y. Includes 14 to 16, X (Yellow/Black)

RH Lower Arm Ass'y. Includes 14 to 16, X (Yellow/Black)
14

860512200 LH Lower Arm Ass'y. Includes 14 to 16

LH Lower Arm Ass'y. Includes 14 to 16
14

860513600 LH Lower Arm Ass'y. Includes 14 to 16, X (Yellow/Black)

LH Lower Arm Ass'y. Includes 14 to 16, X (Yellow/Black)
15

505071891 Ball Joint

Ball Joint
16

293370035 Circlip

Circlip
17

250000118 Hex Screw With Nylon

Hex Screw With Nylon
18

506095800 Clamp

Clamp
19

505071475 LH Bushing

LH Bushing
20

505071476 RH Bushing

RH Bushing
21

505071477 Stabilisator

Stabilisator
22

505071479 Ball Joint

Ball Joint
23

505071253 Plug

Plug
24

293150103 Pop Rivet

Pop Rivet
26

205083044 Socket Head Screw M8 X 30

Socket Head Screw M8 X 30
27

232581414 Hex Elastic Nut M8

Hex Elastic Nut M8
28

207006044 Hex Screw M10 X 60

Hex Screw M10 X 60
29

207006044 Hex Screw M10 X 60

Hex Screw M10 X 60
30

503189564 Washer

Washer
31

233201414 Hex Flanged Elastic Nut M10

Hex Flanged Elastic Nut M10
32

505071756 Upper Arm

Upper Arm
32

505072029 Upper Arm, Yellow. X (Yellow/Black)

Upper Arm, Yellow. X (Yellow/Black)
33

505072047 Upper Ball Joint

Upper Ball Joint
34

250100089 Hex. Elastic Hex Nut M12

Hex. Elastic Hex Nut M12
35

234021410 Flat Washer 12 mm

Flat Washer 12 mm
36

503189276 Washer

Washer
37

250100089 Hex. Elastic Hex Nut M12

Hex. Elastic Hex Nut M12
38

250000216 Cone Screw M10 X 75

Cone Screw M10 X 75
39

250000218 Hex Screw M10 X 75

Hex Screw M10 X 75
40

250100088 Hex. Elastic Hex Nut M10

Hex. Elastic Hex Nut M10
41

250100088 Hex. Elastic Hex Nut M10

Hex. Elastic Hex Nut M10
43

505070960 Aluminium Bushing

Aluminium Bushing
44

505070566 Arm Bushing

Arm Bushing
42

505071695 Rectangular Nut

Rectangular Nut
45

503189564 Washer

Washer
46

219700417 Synthetic Grease, 400 G

Synthetic Grease, 400 G
47

505071490 Front Shock. REN

Front Shock. REN
48

505070150 Cam 45°. REN

Cam 45°. REN
49

505071830 Spring, Red-silver-red. REN

Spring, Red-silver-red. REN
50

517184300 Spring Guide. REN

Spring Guide. REN
51

503140600 Spring Stopper. REN

Spring Stopper. REN
51a

503141600 Cap. REN

Cap. REN
52

505071993 Front Shock. REN X

Front Shock. REN X
52

505072071 Front Shock. REN X, Europe

Front Shock. REN X, Europe
53

505070150 Cam 45°. REN X

Cam 45°. REN X
54

505071830 Spring, Red-silver-red. REN X

Spring, Red-silver-red. REN X
54

505072188 Spring. REN X, Europe

Spring. REN X, Europe
54

505072116 Spring. REN X, (Yellow-Black)

Spring. REN X, (Yellow-Black)
55

517184300 Spring Guide. REN X

Spring Guide. REN X
56

503140600 Spring Stopper. REN X

Spring Stopper. REN X
57

505072222 HPG Decal. REN X

HPG Decal. REN X
58

503141600 Cap. REN X

Cap. REN X
