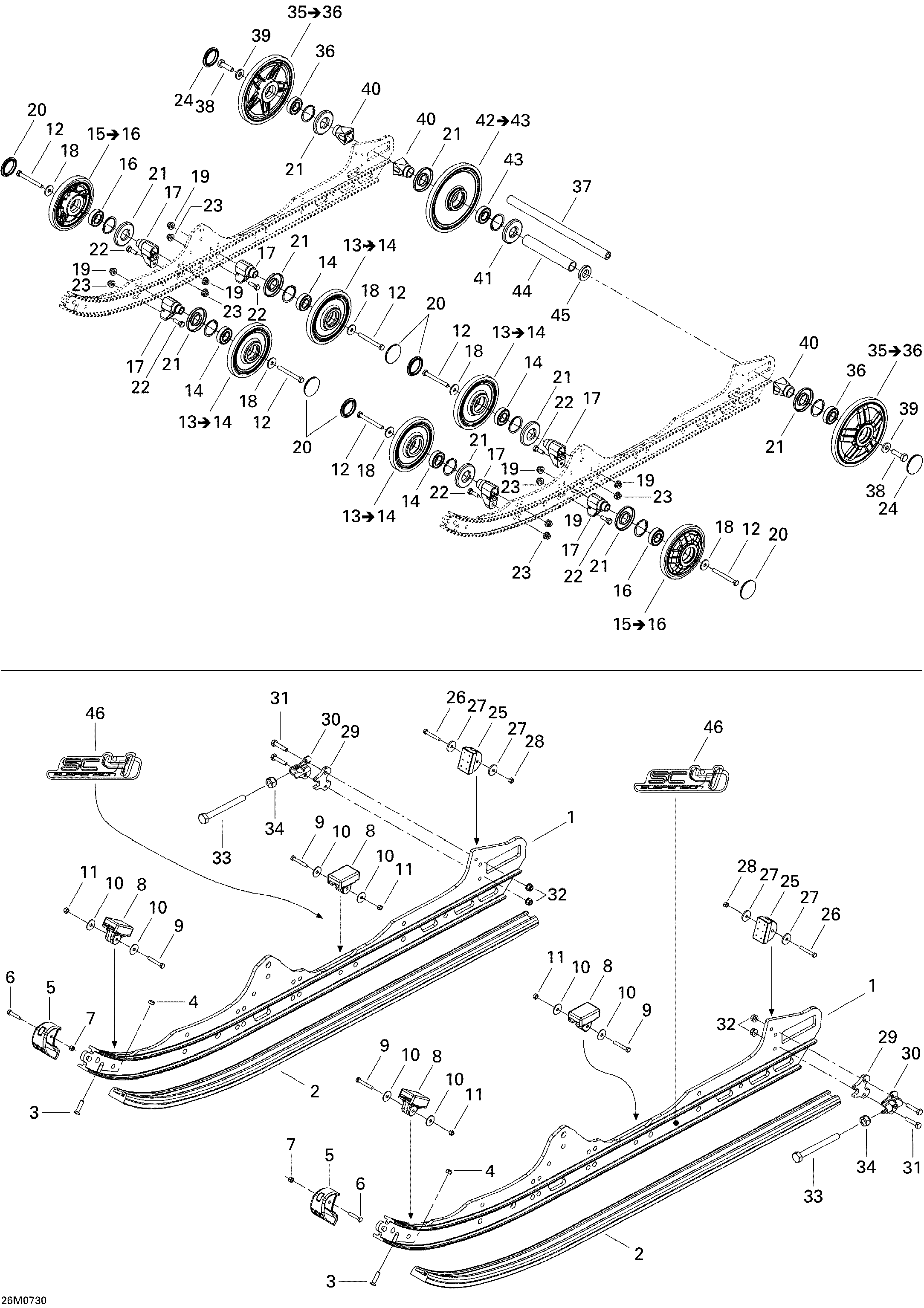

08- Rear Suspension X для BRP Ski-Doo MACH Z X - 2007

  • №
    Артикул
    Название
  • 1
    503191224 Runner 121''
    Runner 121''
  • 2
    503190573 Slider Shoe
    Slider Shoe
  • 3
    208562560 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 4
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    503191137 Runner Protector
    Runner Protector
  • 6
    207652544 Hex Flange Screw M5 X 25
    Hex Flange Screw M5 X 25
  • 7
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 8
    503190576 Rubber Stopper
    Rubber Stopper
  • 9
    207053044 Hex Screw M5 X 30
    Hex Screw M5 X 30
  • 10
    250200016 Washer
    Washer
  • 11
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 12
    207087544 Hex Screw M8 X 75
    Hex Screw M8 X 75
  • 13
    503191316 Wheel 141 Ass'y. Includes 13 to 14
    Wheel 141 Ass'y. Includes 13 to 14
  • 14
    503190396 Ball Bearing
    Ball Bearing
  • 15
    503191314 Wheel 141 Ass'y, Viper Red. Includes 15 to 16, X
    Wheel 141 Ass'y, Viper Red. Includes 15 to 16, X
  • 16
    503190396 Ball Bearing
    Ball Bearing
  • 17
    503190580 Support
    Support
  • 18
    211200041 Washer
    Washer
  • 19
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 20
    570063600 Wheel Cap
    Wheel Cap
  • 21
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 22
    207182544 Hex Screw M8 X 25
    Hex Screw M8 X 25
  • 23
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 24
    570063600 Wheel Cap
    Wheel Cap
  • 25
    503189608 Rubber Stopper
    Rubber Stopper
  • 26
    207053044 Hex Screw M5 X 30
    Hex Screw M5 X 30
  • 27
    250200016 Washer
    Washer
  • 28
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 29
    503190379 Tensioner Spacer
    Tensioner Spacer
  • 30
    503190380 Tensioner
    Tensioner
  • 31
    207063044 Hex Screw M6 X 30
    Hex Screw M6 X 30
  • 32
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 33
    230100044 Hex Screw M10 X 100
    Hex Screw M10 X 100
  • 34
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 35
    503191103 Wheel 180 With Pattern Ass'y, Red. Includes 35 to 36, X
    Wheel 180 With Pattern Ass'y, Red. Includes 35 to 36, X
  • 36
    503190396 Ball Bearing
    Ball Bearing
  • 37
    503190429 Rear Axle
    Rear Axle
  • 38
    250000019 Hex Screw With Nylon
    Hex Screw With Nylon
  • 39
    503190439 Washer
    Washer
  • 40
    503190428 Rear Wheel Spacer
    Rear Wheel Spacer
  • 41
    503190682 Labyrinth Seal
    Labyrinth Seal
  • 42
    503190395 Wheel 180. Includes 42 to 43
    Wheel 180. Includes 42 to 43
  • 43
    503190396 Ball Bearing
    Ball Bearing
  • 44
    503190430 Rear Long Spacer
    Rear Long Spacer
  • 45
    503190432 Washer
    Washer
  • 46
    516002615 SC4 Decal
    SC4 Decal
