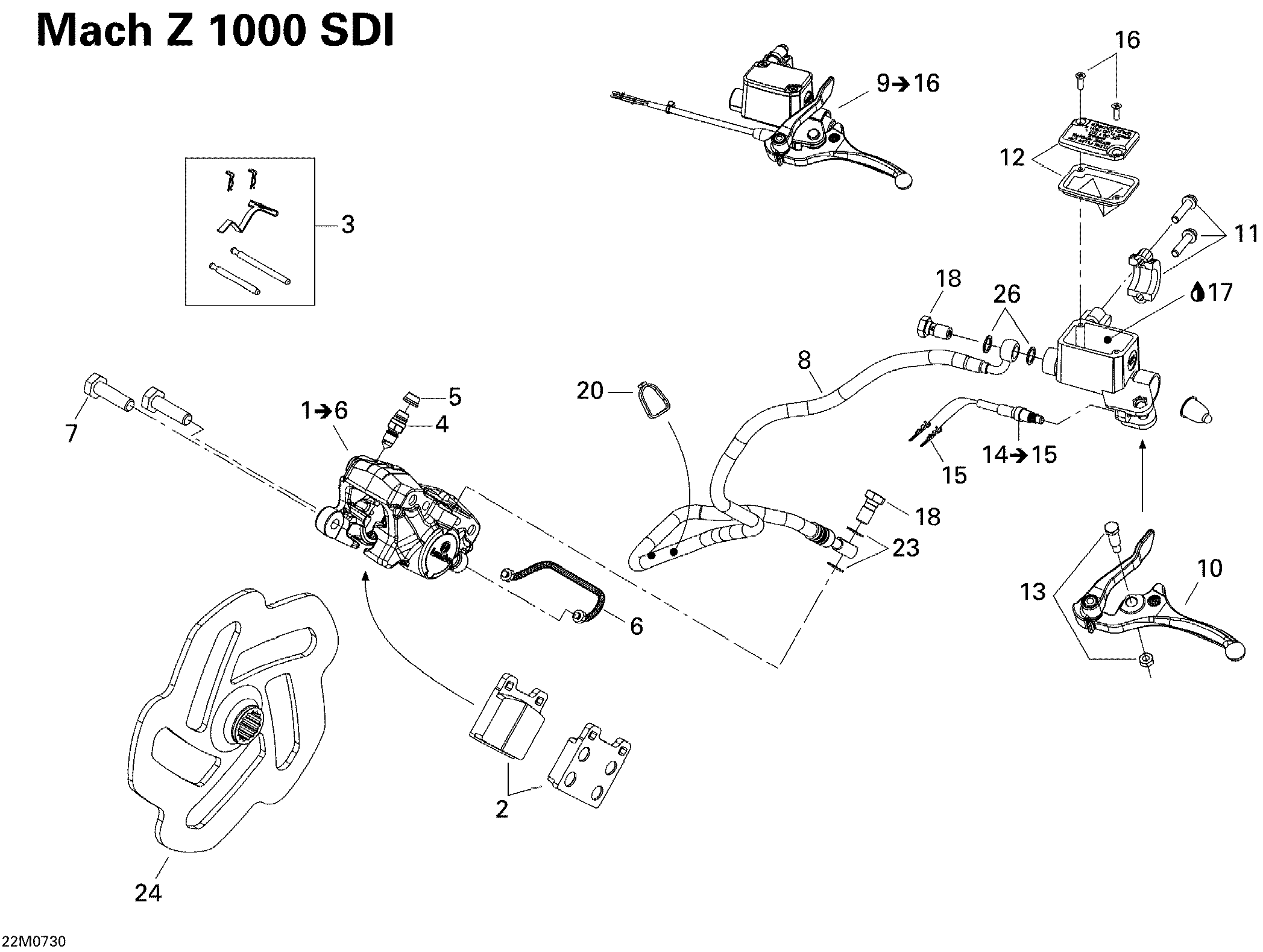

06- Hydraulic Brakes X для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1507032387 Brake CaliperBrake Caliper
-
2415084600 Brake Pad KitBrake Pad Kit
-
3415128865 Kit, Pins, Retainers, SpringKit, Pins, Retainers, Spring
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8507032385 HoseHose
-
9507032463 Master Cylinder. Includes 9 to 16Master Cylinder. Includes 9 to 16
-
10415129216 LeverLever
-
11415029800 Clamp Ass'yClamp Ass'y
-
12415029900 CapCap
-
13415030000 Pin Ass'yPin Ass'y
-
14507032366 MicroswitchMicroswitch
-
15515175232 Male TerminalMale Terminal
-
16216141260 Screw M4 X 12Screw M4 X 12
-
17293600063 Brake Fluid, SRF, DOT 4Brake Fluid, SRF, DOT 4
-
18414920500 Banjo BoltBanjo Bolt
-
20293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
23414920600 Washer For Hose ConnectionWasher For Hose Connection
-
24507032400 Brake DiskBrake Disk
