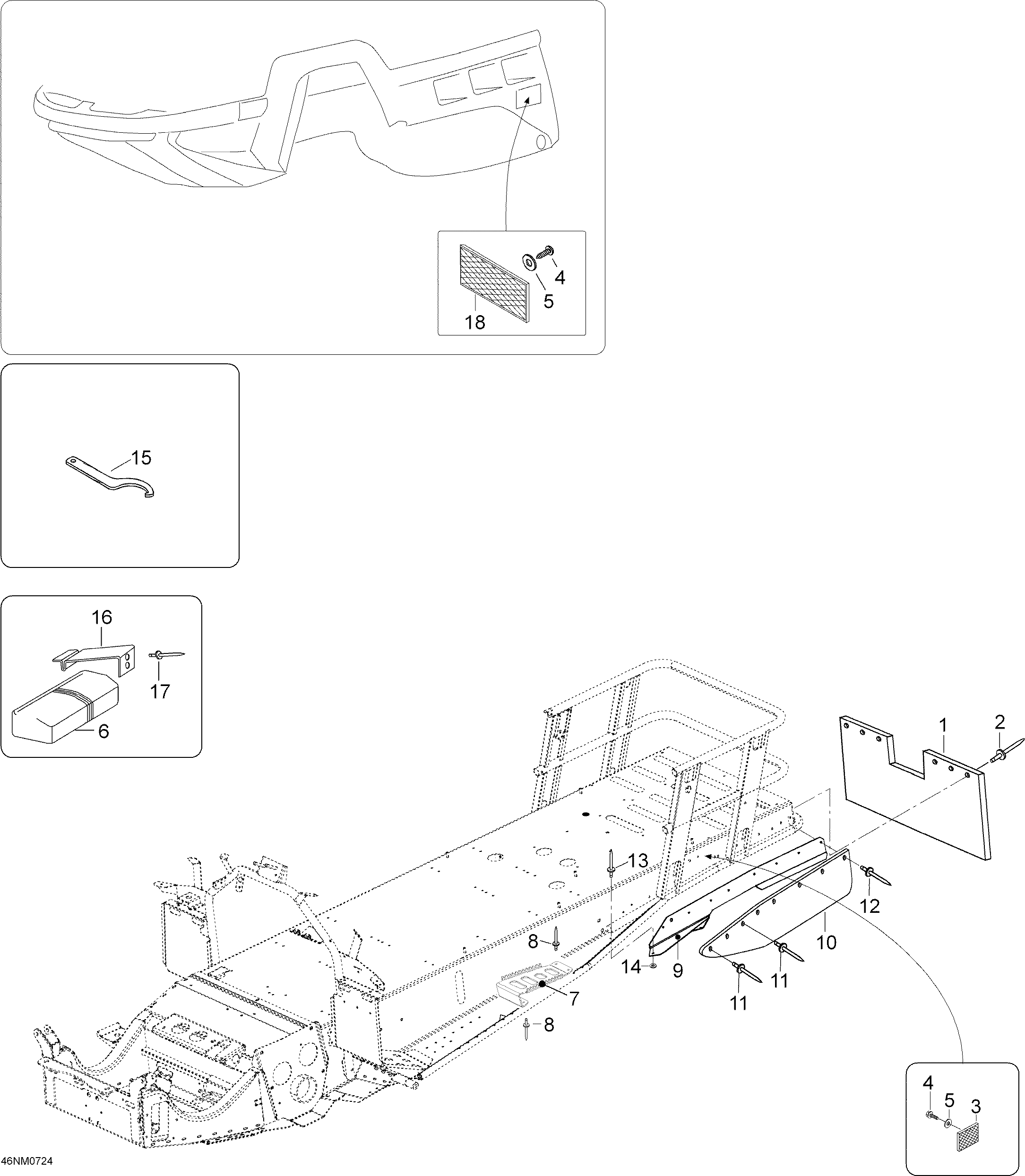

09- Utilities для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2M36036 Rivet-BlackRivet-Black
-
3414510100 Reflector, RedReflector, Red
-
4M40070 ScrewScrew
-
5234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
6605352219 Tool SetTool Set
-
7605354068 FootrestFootrest
-
8M36489 RivetRivet
-
9605251249 RH Side Snow GuardRH Side Snow Guard
-
9605251248 LH Side Snow GuardLH Side Snow Guard
-
10M5142828 Lateral Snow GuardLateral Snow Guard
-
11M36097 RivetRivet
-
12M36891 RivetRivet
-
13M36005 RivetRivet
-
14M20008 Washer 5 mmWasher 5 mm
-
15529035582 Adjustment WrenchAdjustment Wrench
-
16M5346728 Spring PlateSpring Plate
-
17M36108 RivetRivet
-
18414510200 Reflector, AmberReflector, Amber
