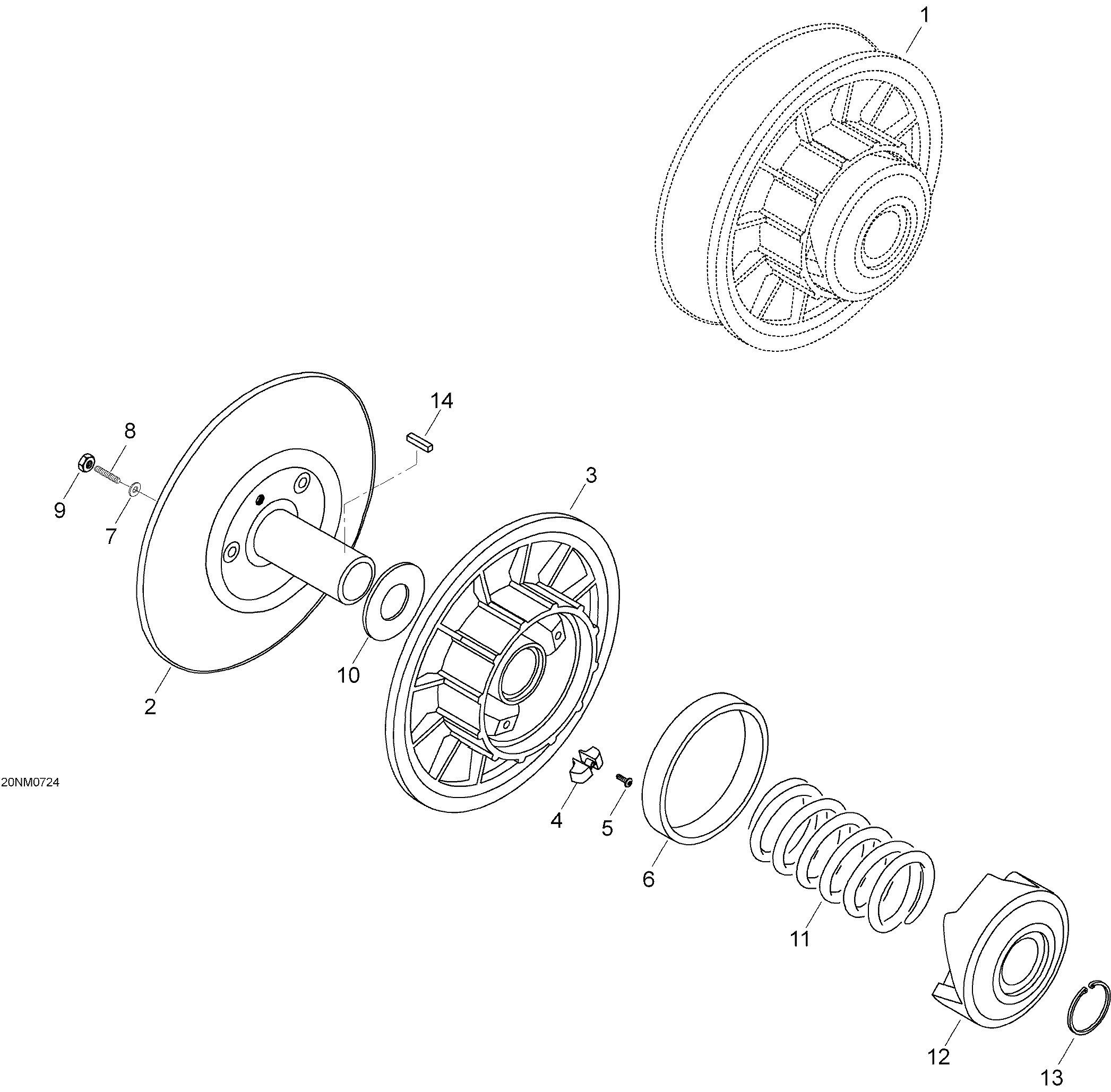

05- Driven Pulley для BRP Ski-Doo Expedition TUV 1300 (Europe) - 2007
-
№АртикулНазвание
-
2M140065 Fixed FlangeFixed Flange
-
3M140066 Sliding FlangeSliding Flange
-
4M140068 Shoe Cam SliderShoe Cam Slider
-
6417126308 BushingBushing
-
7420245370 WasherWasher
-
9232061414 Hex Nut M6Hex Nut M6
-
10504099600 Stopper WasherStopper Washer
-
11M140056 Release SpringRelease Spring
-
12M140070 Cam 35/30 Degr.Cam 35/30 Degr.
-
13371903100 CirclipCirclip
-
14417119400 KeyKey
