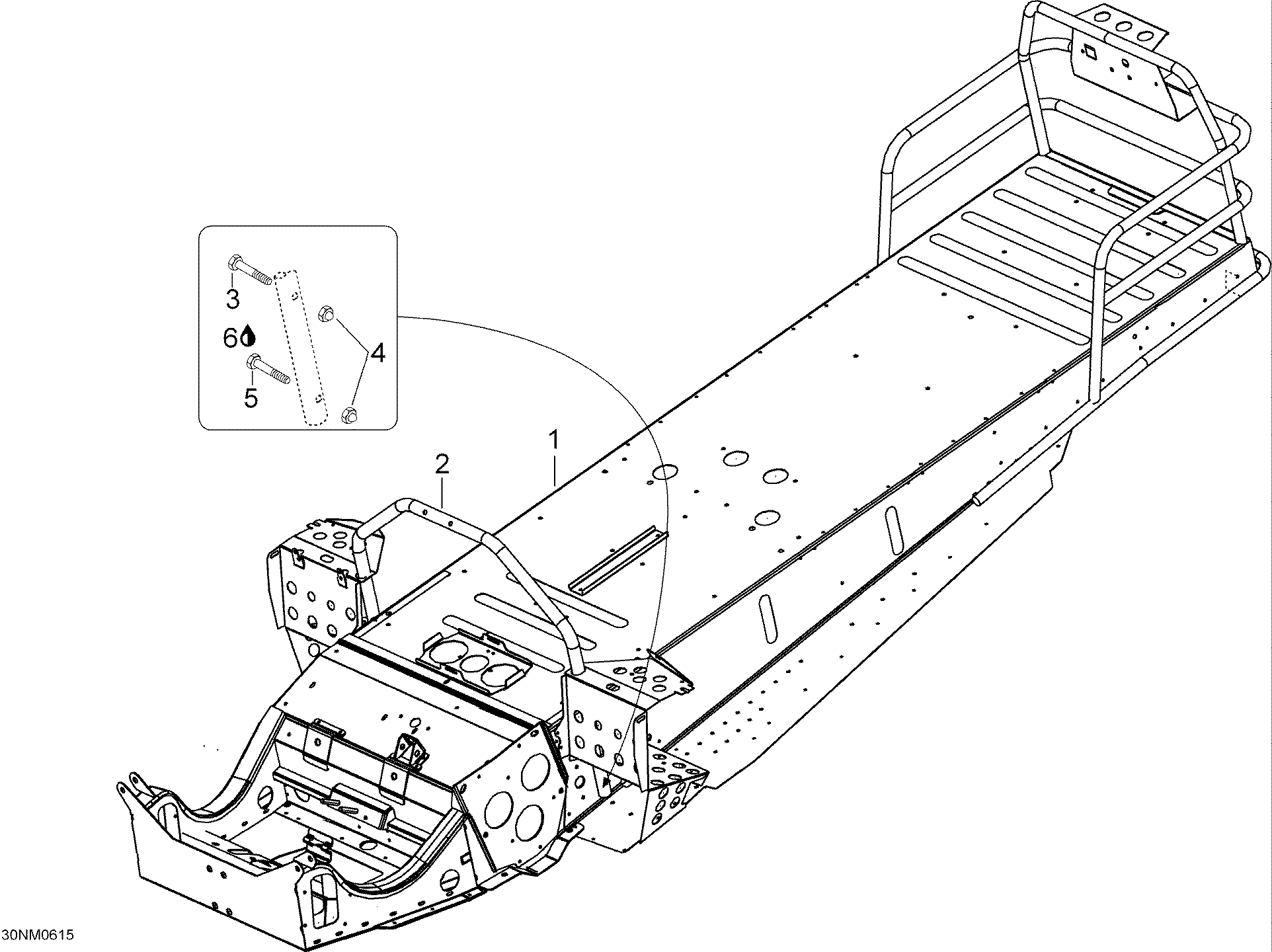

09- Frame , 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2006

-
№АртикулНазвание
-
1605152565 Frame Ass'y. SUV 550, Includes 1 to 2Frame Ass'y. SUV 550, Includes 1 to 2
-
2605150258 Handle SupportHandle Support
-
3207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
4232061414 Hex Nut M6Hex Nut M6
-
5207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
6293800060 Loctite 243, 250 mlLoctite 243, 250 ml
