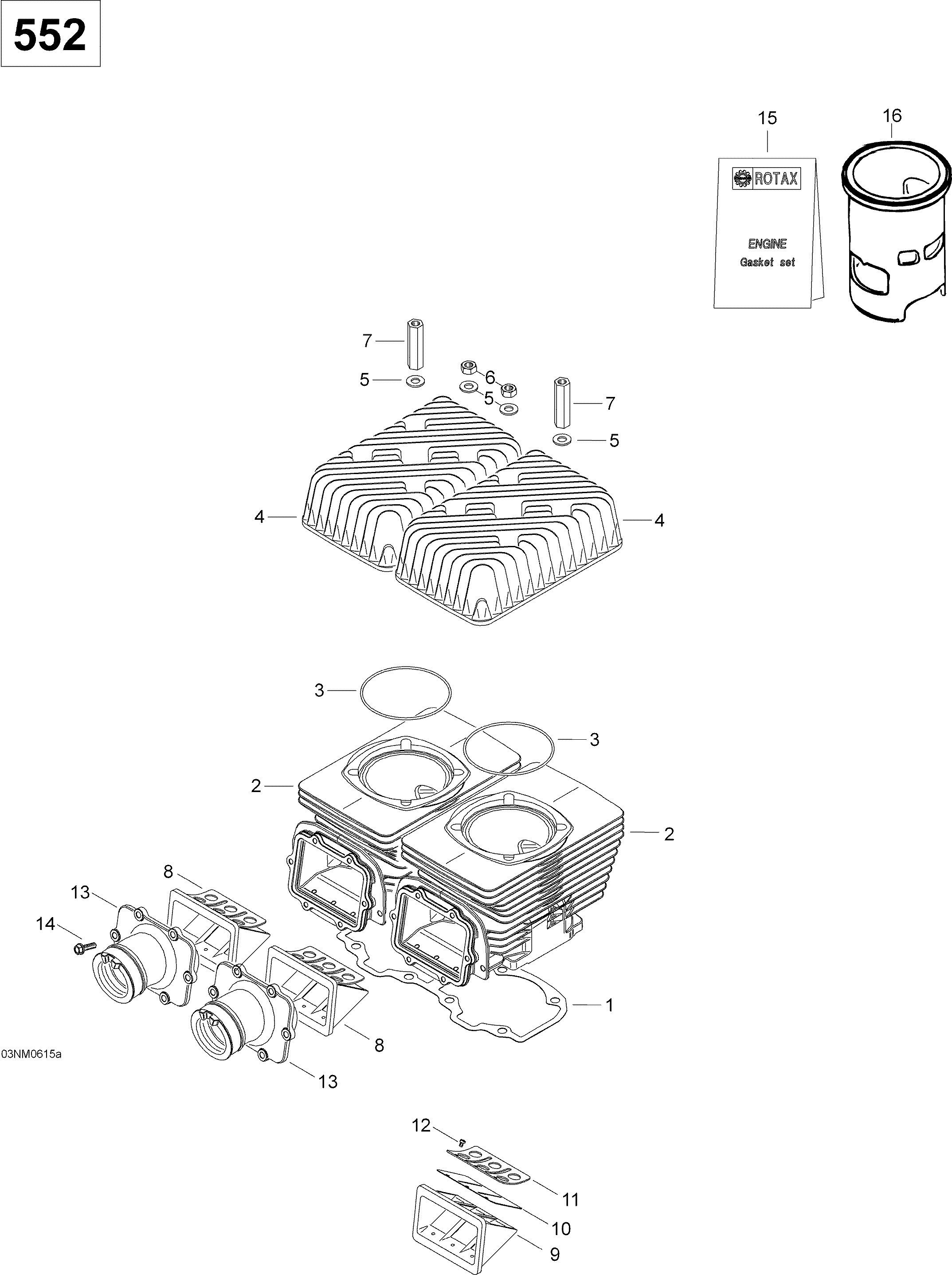

01- Cylinder and Cylinder Head 552 для BRP Ski-Doo Skandic SUV 550F - 2006

№

Артикул

Название
1

420950910 Gasket 0.3

Gasket 0.3
1

420950911 Gasket 0.4

Gasket 0.4
1

420950912 Gasket 0.6

Gasket 0.6
2

420923978 Cylinder With Sleeve

Cylinder With Sleeve
3

293300026 O-Ring

O-Ring
4

420923595 Head Cylinder

Head Cylinder
5

420250311 Washer 8.4 mm

Washer 8.4 mm
6

232081414 Hex Nut M8

Hex Nut M8
7

420842203 Distance Nut M8 X 47

Distance Nut M8 X 47
8

420924519 Reed Valve Ass'Y

Reed Valve Ass'Y
10

420924532 Reed Pedal

Reed Pedal
11

420924539 Reed Pedal Stop

Reed Pedal Stop
12

420941215 Phillips Screw M3 X 5

Phillips Screw M3 X 5
13

420867105 Carburetor Socket

Carburetor Socket
14

420941925 Tapping Screw M5 X 16

Tapping Screw M5 X 16
15

420889911 Gasket Set, Engine

Gasket Set, Engine
16

420923981 Cylinder Sleeve

Cylinder Sleeve
