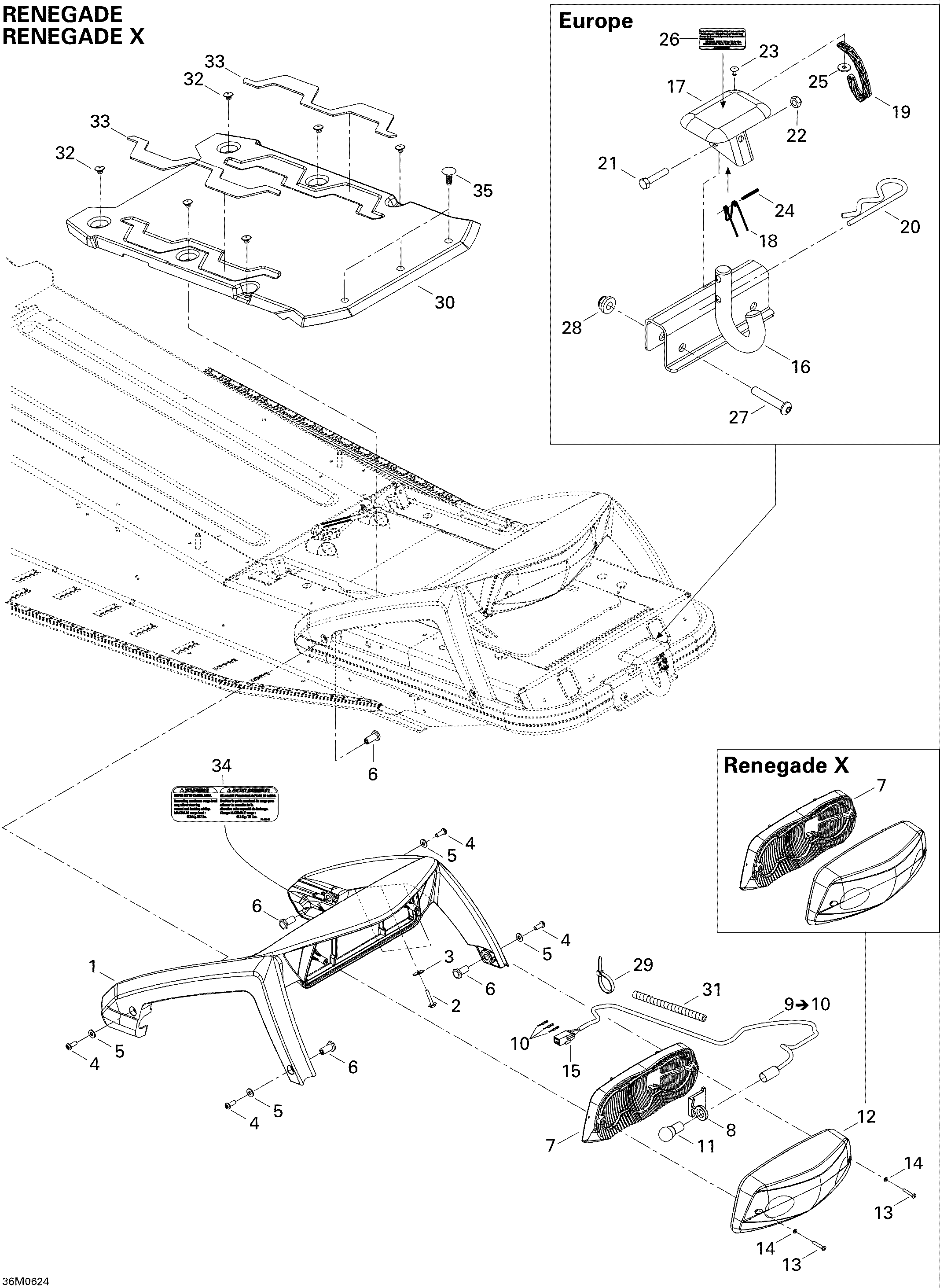

09- Luggage Rack для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2006

  • №
    Артикул
    Название
  • 1
    511000425 Luggage Rack
    Luggage Rack
  • 2
    250000202 Self Tapping Screw #8 X 5/8
    Self Tapping Screw #8 X 5/8
  • 3
    250200040 Flat Washer
    Flat Washer
  • 4
    250000128 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 5
    250200039 Flat Washer
    Flat Washer
  • 6
    511000398 Insert
    Insert
  • 7
    510004442 Reflector
    Reflector
  • 8
    511000431 Bulb Support
    Bulb Support
  • 9
    511000466 Bulb Socket. Includes 9 to 10
    Bulb Socket. Includes 9 to 10
  • 10
    515175232 Male Terminal
    Male Terminal
  • 11
    410504100 Tail Lamp Bulb
    Tail Lamp Bulb
  • 12
    511000315 Lens. Renegade
    Lens. Renegade
  • 12
    861509300 Lens And Reflector Kit. Renegade X, Includes itrem 7
    Lens And Reflector Kit. Renegade X, Includes itrem 7
  • 13
    209632580 Phillips Tapping Screw 3.9 X 25
    Phillips Tapping Screw 3.9 X 25
  • 14
    414516400 Washer
    Washer
  • 15
    515175494 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 16
    511000354 Hitch, Black. Europe
    Hitch, Black. Europe
  • 17
    517152700 Hitch Protector. Europe
    Hitch Protector. Europe
  • 18
    517152800 Spring. Europe
    Spring. Europe
  • 20
    114045200 Hair Pin. Europe
    Hair Pin. Europe
  • 21
    207063044 Hex Screw M6 X 30. Europe
    Hex Screw M6 X 30. Europe
  • 22
    232561414 Elastic Stop Nut M6. Europe
    Elastic Stop Nut M6. Europe
  • 23
    390409400 Pop Rivet 5/32'', Black. Europe
    Pop Rivet 5/32'', Black. Europe
  • 24
    732804000 Spring Pin M3 X 24. Europe
    Spring Pin M3 X 24. Europe
  • 26
    516003037 Security Label. Europe
    Security Label. Europe
  • 27
    205484546 Socket Head Screw M8 X 45. Europe
    Socket Head Screw M8 X 45. Europe
  • 28
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 29
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 30
    511000436 Radiator Cover
    Radiator Cover
  • 31
    515175442 Tubing, 6 mm
    Tubing, 6 mm
  • 32
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 33
    511000396 Carpet
    Carpet
  • 34
    516002960 Warning Label, Maximum Cargo Load
    Warning Label, Maximum Cargo Load
  • 35
    293730006 Black Dart
    Black Dart
