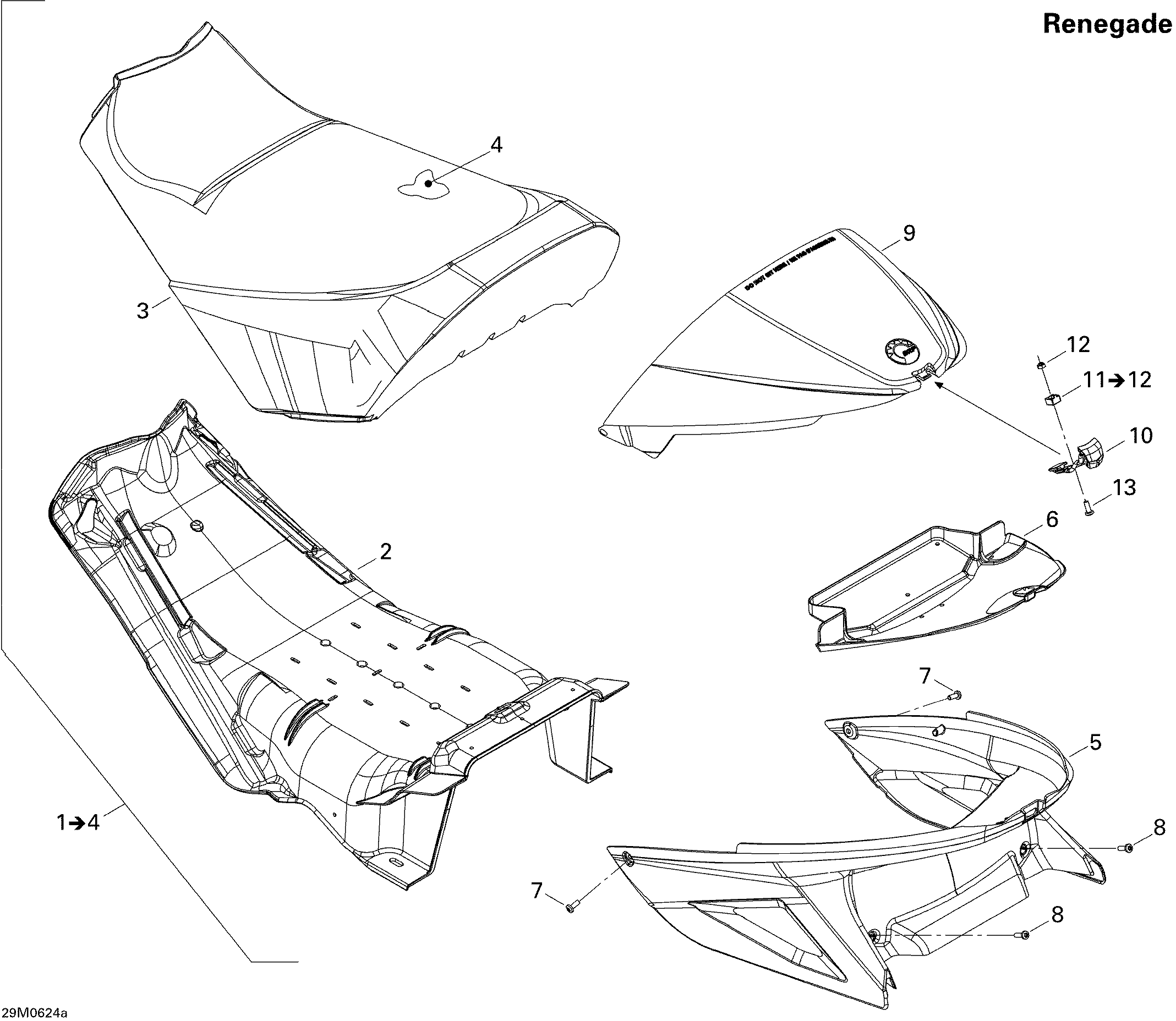

09- Seat Renegade для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2006
-
№АртикулНазвание
-
2510004575 Seat BaseSeat Base
-
3510004499 Seat CoverSeat Cover
-
4510004275 Seat FoamSeat Foam
-
5510004628 TrunkTrunk
-
5510004629 TrunkTrunk
-
6510004600 Box LinerBox Liner
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
9510004630 CoverCover
-
9510004631 CoverCover
-
10510003917 BracketBracket
-
11708000046 Nut Housing Ass'y, M6. Includes 11 to 12Nut Housing Ass'y, M6. Includes 11 to 12
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
