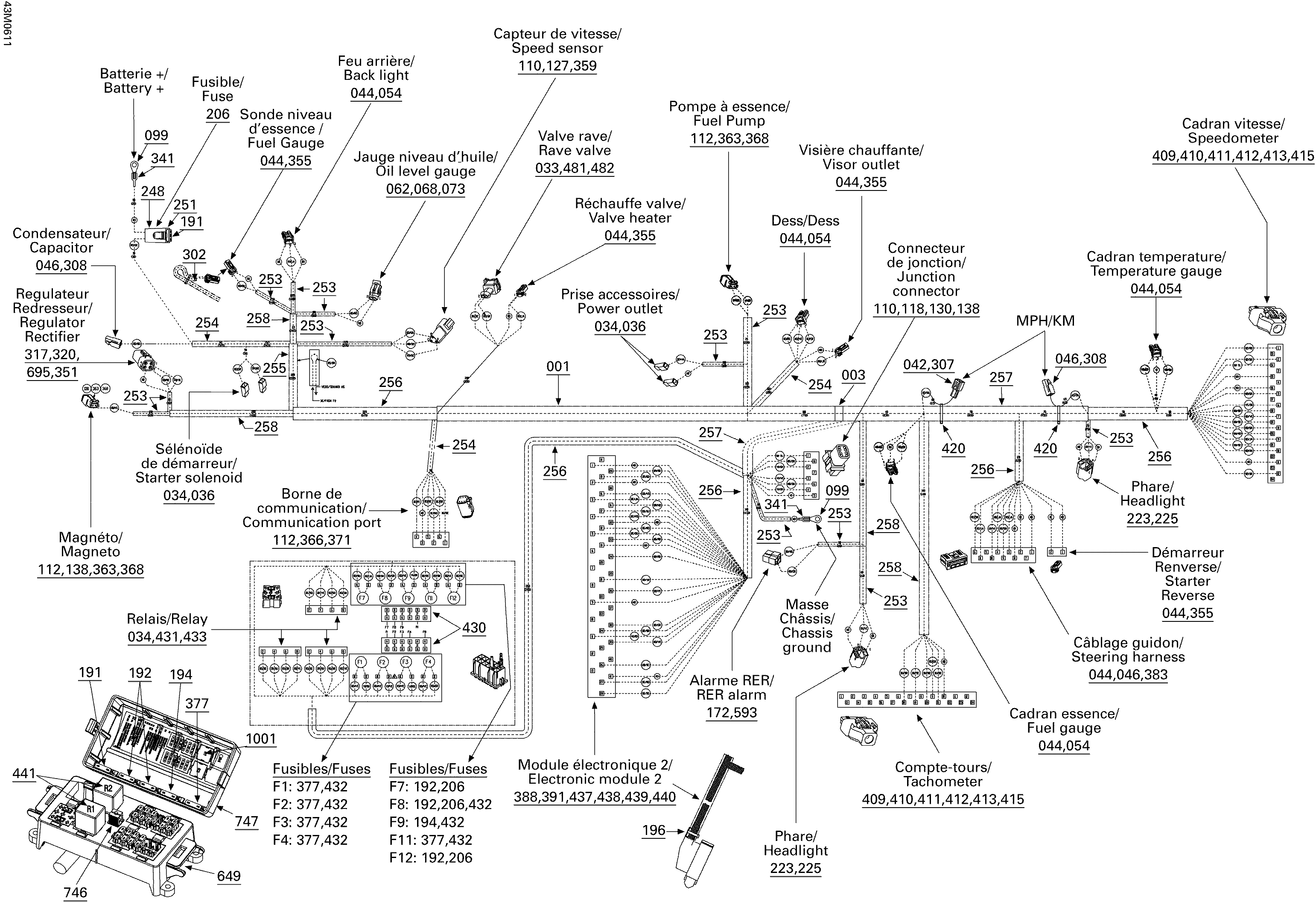

10- Electrical Harness для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006

  • №
    Артикул
    Название
  • 1
    515176312 Frame Harness Ass'y. Includes 1 to 1001
    Frame Harness Ass'y. Includes 1 to 1001
  • 33
    278000999 Seal
    Seal
  • 34
    409010100 Female Terminal
    Female Terminal
  • 36
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 42
    515175273 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 54
    515175495 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 57
    515175350 Female Terminal Housing, 13 Circuits
    Female Terminal Housing, 13 Circuits
  • 62
    278001014 Female Terminal
    Female Terminal
  • 68
    409209500 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 73
    278001013 Seal
    Seal
  • 99
    278000992 Ring Terminal
    Ring Terminal
  • 110
    278000631 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 118
    278001742 Male Terminal Housing (8 Circuits)
    Male Terminal Housing (8 Circuits)
  • 127
    409207600 Male Lock, 3 Circuits
    Male Lock, 3 Circuits
  • 130
    515175276 Lock Male (8 Circuits)
    Lock Male (8 Circuits)
  • 138
    293000052 Sealing Cap
    Sealing Cap
  • 172
    561503100 Female Terminal
    Female Terminal
  • 176
    409003200 Open Barrel
    Open Barrel
  • 191
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 192
    409003900 Fuse, 20 Amperes
    Fuse, 20 Amperes
  • 194
    278001197 Fuse 10 Amperes
    Fuse 10 Amperes
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 206
    409004200 Female Terminal
    Female Terminal
  • 222
    409204300 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 223
    515175320 Female Terminal
    Female Terminal
  • 225
    409202700 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 248
    409004000 Fuse Holder
    Fuse Holder
  • 251
    409014200 Clip
    Clip
  • 253
    515175442 Tubing, 6 mm
    Tubing, 6 mm
  • 254
    409901700 Tubing, 9 mm
    Tubing, 9 mm
  • 255
    409901800 Tubing, 13 mm
    Tubing, 13 mm
  • 256
    415080000 Tubing, 16 mm
    Tubing, 16 mm
  • 257
    409901600 Tubing, 19 mm
    Tubing, 19 mm
  • 258
    415079900 Tubing, 10 mm
    Tubing, 10 mm
  • 302
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 307
    515175509 Male Terminal Housing, 1 Circuit
    Male Terminal Housing, 1 Circuit
  • 308
    515175510 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 317
    278001473 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 320
    515175567 Female Terminal
    Female Terminal
  • 341
    515175608 Tubing Shrink
    Tubing Shrink
  • 351
    278001474 Female Lock, 4 Circuits
    Female Lock, 4 Circuits
  • 355
    515175658 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 359
    515175666 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 363
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 366
    515175673 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 368
    515175675 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 371
    515175678 Female Lock, 6 Circuits
    Female Lock, 6 Circuits
  • 377
    278000344 Fuse, 5 Amperes
    Fuse, 5 Amperes
  • 383
    515175719 Female Terminal Housing, 11 Circuits
    Female Terminal Housing, 11 Circuits
  • 387
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 388
    278001750 Female Terminal
    Female Terminal
  • 391
    278001751 Female Terminal Housing, 41 Circuits
    Female Terminal Housing, 41 Circuits
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Terminal Housing, 24 Circuits
    Female Terminal Housing, 24 Circuits
  • 411
    515175802 Retainer
    Retainer
  • 412
    515175803 Wire Seal
    Wire Seal
  • 413
    515175804 Block
    Block
  • 415
    515175806 Female Terminal
    Female Terminal
  • 420
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 430
    515175857 Fuse Holder
    Fuse Holder
  • 431
    515175856 Relay Holder
    Relay Holder
  • 432
    515175855 Female Terminal
    Female Terminal
  • 433
    515175854 Female Terminal
    Female Terminal
  • 437
    515175886 Seal
    Seal
  • 438
    515175883 Latch
    Latch
  • 439
    515175884 Lock
    Lock
  • 440
    515175885 Cover
    Cover
  • 441
    410113604 Relay
    Relay
  • 481
    415128500 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 482
    415128502 Female Terminal
    Female Terminal
  • 593
    515176069 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 649
    515176065 Fuse Box Base
    Fuse Box Base
  • 695
    515176283 Bouchon
    Bouchon
  • 746
    515175811 Fuse Tool
    Fuse Tool
  • 747
    515176066 Cover
    Cover
  • 1001
    516002640 Fuse Decal
    Fuse Decal
