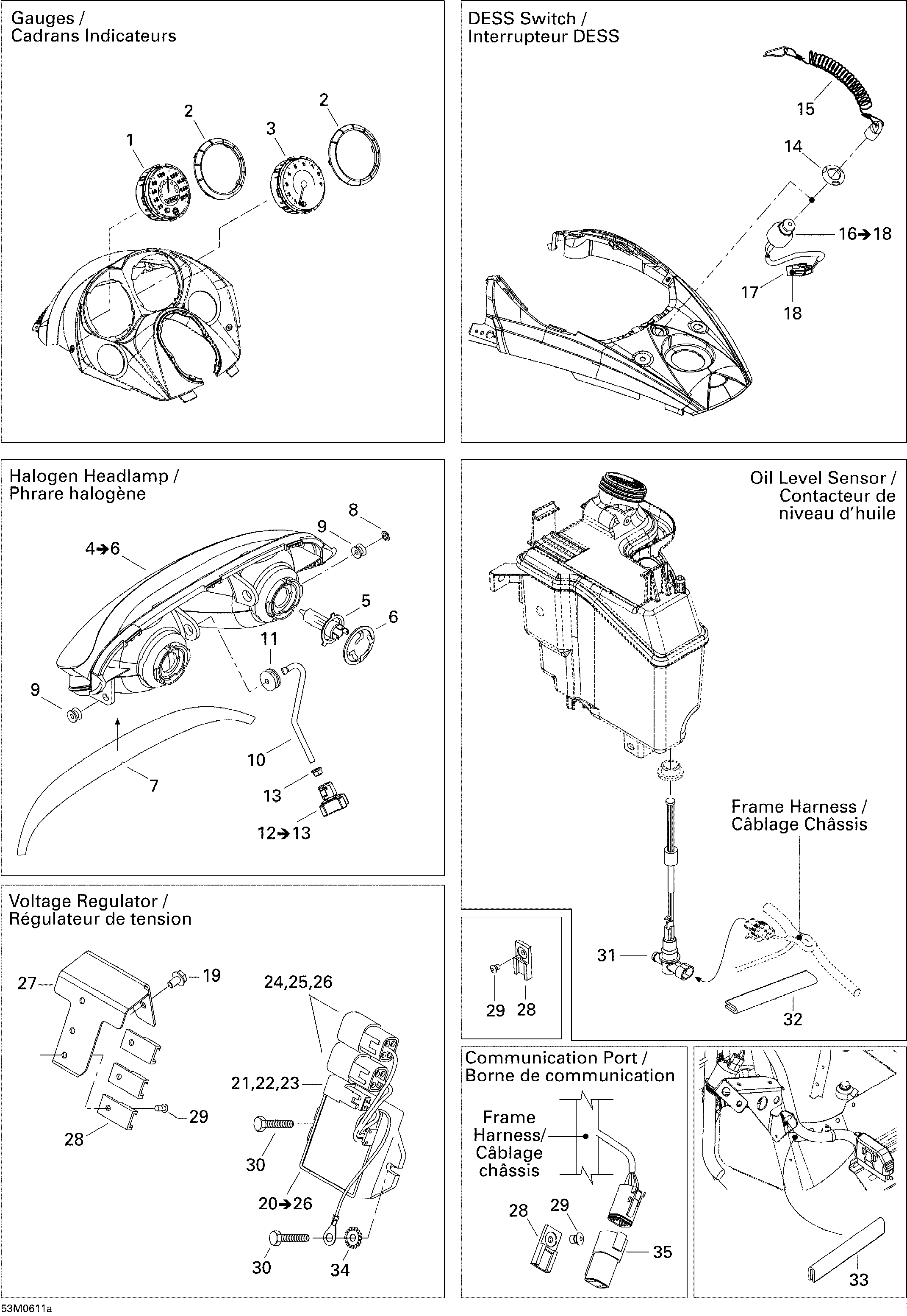

10- Electrical Accessories 1 для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2006

  • №
    Артикул
    Название
  • 1
    515176302 Speedometer
    Speedometer
  • 2
    515176242 Gauge Ring
    Gauge Ring
  • 3
    515176303 Tachometer
    Tachometer
  • 4
    515176311 Halogen Headlamp Ass'y. Includes 4 to 6
    Halogen Headlamp Ass'y. Includes 4 to 6
  • 5
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 6
    515176385 Bulb Holder
    Bulb Holder
  • 7
    516001328 Headlamp Decal
    Headlamp Decal
  • 8
    732610072 Push Nut
    Push Nut
  • 9
    515175760 Headlamp Bushing
    Headlamp Bushing
  • 10
    515175521 Adjuster Rod
    Adjuster Rod
  • 11
    415100800 Grommet
    Grommet
  • 12
    515175975 Handle. Includes 12 to 13
    Handle. Includes 12 to 13
  • 13
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 14
    278000508 Safe Nut Switch
    Safe Nut Switch
  • 15
    515176446 DESS Cap
    DESS Cap
  • 16
    515175797 Dess Switch. Includes 16 to 18
    Dess Switch. Includes 16 to 18
  • 17
    515175232 Male Terminal
    Male Terminal
  • 18
    515175494 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 19
    210261080 Hex Forming Screw M6 X 10
    Hex Forming Screw M6 X 10
  • 20
    515176243 Voltage Regulator. Includes 20 to 26
    Voltage Regulator. Includes 20 to 26
  • 21
    409206900 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 22
    278000631 Male Terminal
    Male Terminal
  • 23
    409207500 Male Lock, 2 Circuits
    Male Lock, 2 Circuits
  • 24
    278000635 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 25
    515175568 Male Terminal
    Male Terminal
  • 26
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 27
    515176191 Housing Support
    Housing Support
  • 28
    515175917 Clip
    Clip
  • 29
    293150037 Rivet Avdel 3/16''
    Rivet Avdel 3/16''
  • 30
    210261680 Hex Forming Screw M6 X 16
    Hex Forming Screw M6 X 16
  • 31
    515176327 Oil Level Sensor
    Oil Level Sensor
  • 32
    509000263 Trim
    Trim
  • 33
    271000110 Protector Trim
    Protector Trim
  • 34
    250200041 Serrated Lock Washer 6 mm
    Serrated Lock Washer 6 mm
  • 35
    515176234 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
