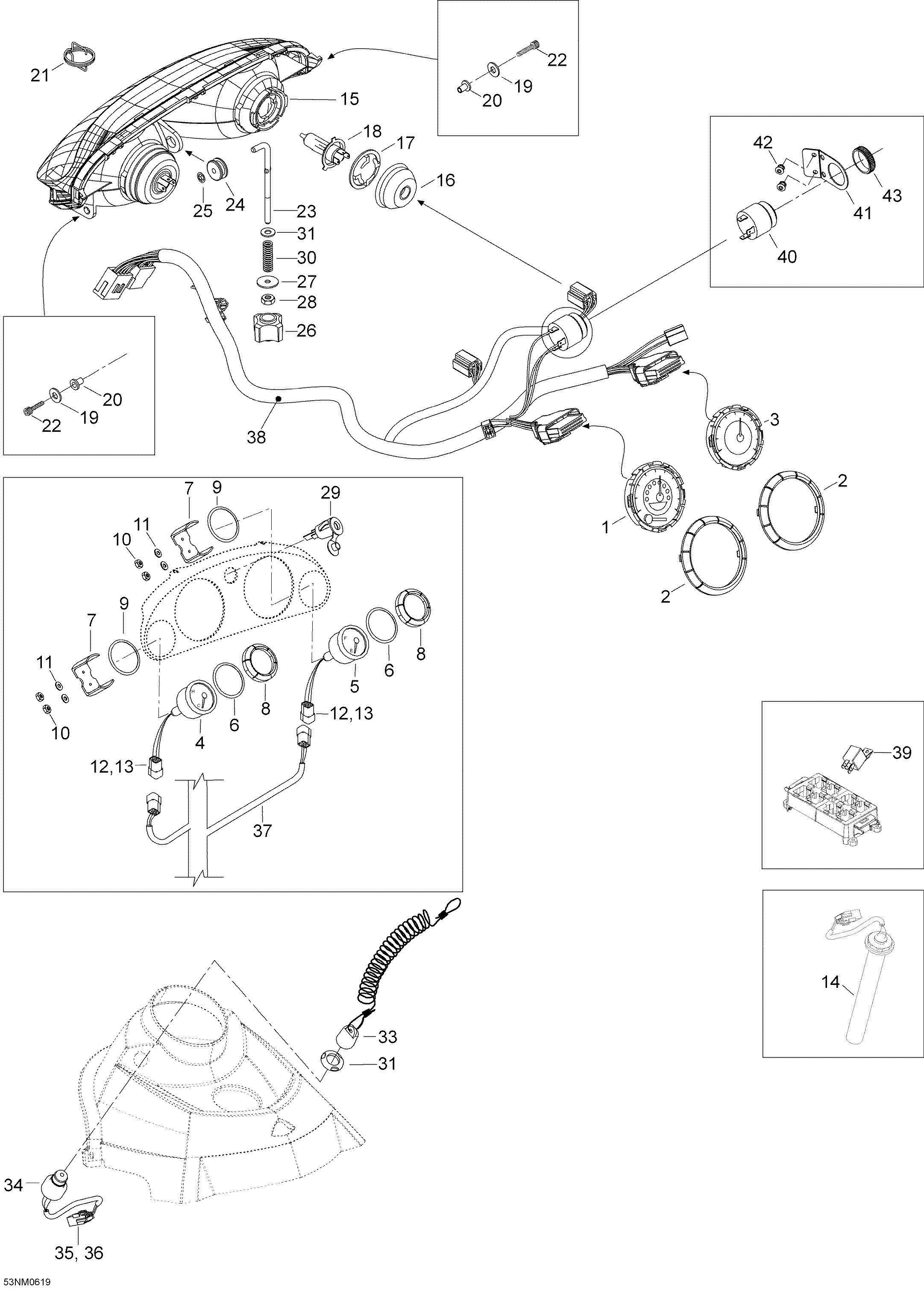

10- Electrical Accessories 1 для BRP Ski-Doo Expedition V-1000 - 2006
-
№АртикулНазвание
-
1515176302 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176303 TachometerTachometer
-
4515175601 Temperature GaugeTemperature Gauge
-
5515175529 Fuel GaugeFuel Gauge
-
6414807200 O-RingO-Ring
-
7415099800 Case HolderCase Holder
-
8515175711 Ring GaugeRing Gauge
-
9517258600 WasherWasher
-
10232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
11M20037 WasherWasher
-
12M42269 Male Connector HousingMale Connector Housing
-
13M42603 Male TerminalMale Terminal
-
14605253587 Fuel SensorFuel Sensor
-
15515176273 Halogen Headlamp Ass'y. Includes 15 to 18Halogen Headlamp Ass'y. Includes 15 to 18
-
16410607100 Protector CapProtector Cap
-
17410608300 Bulb HolderBulb Holder
-
18515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
19M20008 Washer 5 mmWasher 5 mm
-
20250100018 Nut M5Nut M5
-
21M5447238 SpringSpring
-
22M40235 Screw M5X35Screw M5X35
-
23605450023 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Push NutPush Nut
-
26515175548 HandleHandle
-
27M20038 WasherWasher
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29M42026 Current OutletCurrent Outlet
-
30415100600 SpringSpring
-
31234061410 Flat Washer M6Flat Washer M6
-
32278000508 Safe Nut SwitchSafe Nut Switch
-
33515166900 Dess CapDess Cap
-
34515175797 Dess Switch. Includes 34 to 36Dess Switch. Includes 34 to 36
-
35515175232 Male TerminalMale Terminal
-
36515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
37605153859 Harness Ass'yHarness Ass'y
-
38605153275 Harness Ass'yHarness Ass'y
-
39410113604 RelayRelay
-
40515176035 HornHorn
-
41M5447941 HolderHolder
-
42M36005 RivetRivet
-
43414805101 Plastic NutPlastic Nut
