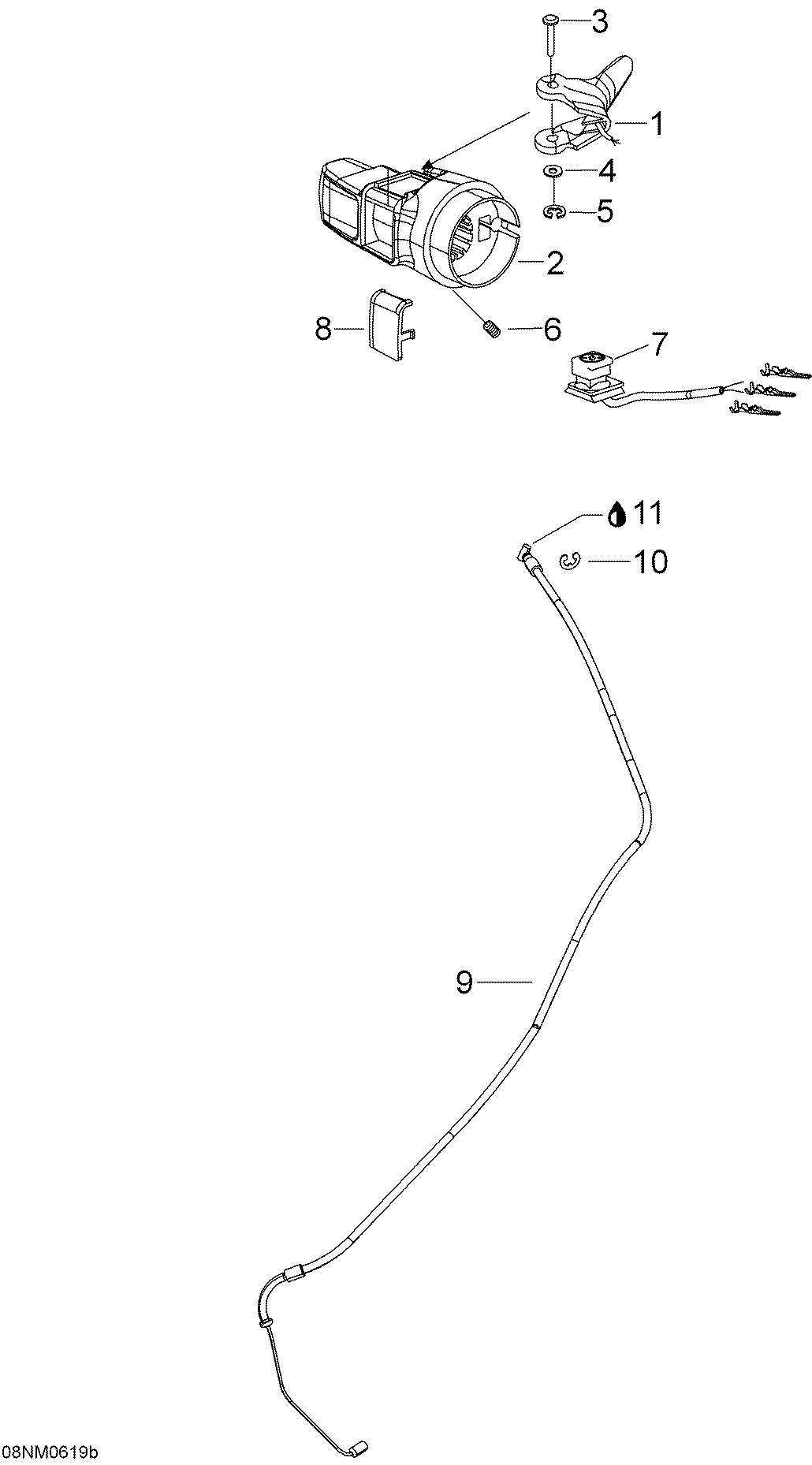

01- Throttle Handle And Housing для BRP Ski-Doo Expedition V-1000 - 2006
-
№АртикулНазвание
-
1512059624 Handle Ass'YHandle Ass'Y
-
2512059489 Throttle HousingThrottle Housing
-
3414438700 Lever PinLever Pin
-
4414438900 WasherWasher
-
5414439000 CirclipCirclip
-
6414440800 Set Screw M8 X 10Set Screw M8 X 10
-
7515175410 Kill SwitchKill Switch
-
8572100901 Switch CoverSwitch Cover
-
9512059349 Throttle CableThrottle Cable
-
10M31038 CirclipCirclip
-
11293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
