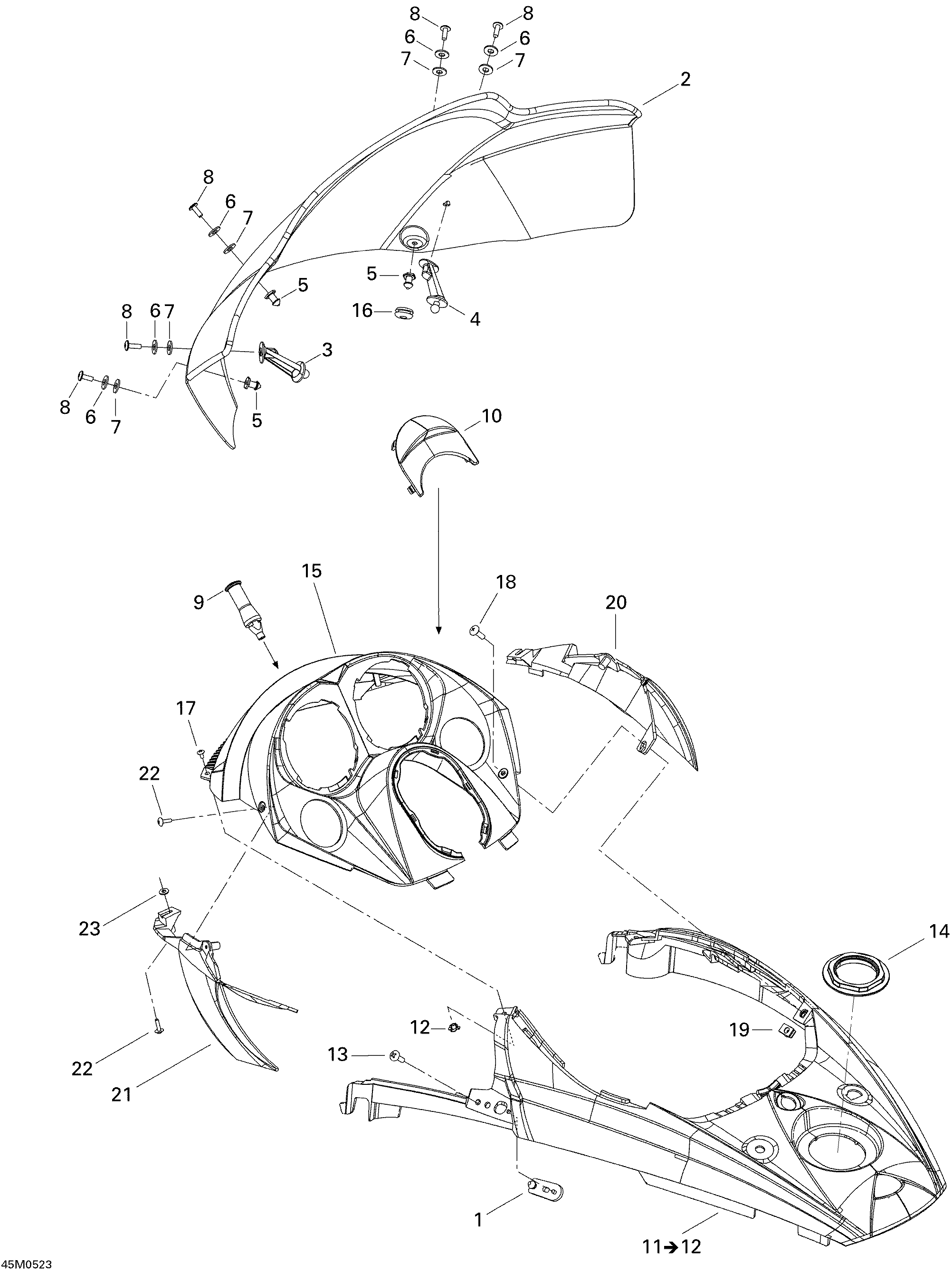

09- Windshield And Console для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303174 Medium WindshieldMedium Windshield
-
3517303214 LH Windshield SupportLH Windshield Support
-
4517303215 RH Windshield SupportRH Windshield Support
-
5517303439 KnobKnob
-
6250200025 Washer 5 mmWasher 5 mm
-
7250200024 Rubber Washer M5Rubber Washer M5
-
8250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
9517303197 Windshield SupportWindshield Support
-
10517302592 Console CapConsole Cap
-
11517303354 Center Console. Includes 11 to 12Center Console. Includes 11 to 12
-
12250100030 T Flanged Nut, M4T Flanged Nut, M4
-
13250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
14517302575 Console NutConsole Nut
-
15517303397 Indicator SupportIndicator Support
-
16517302841 GrommetGrommet
-
17250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000079 Nut M5Nut M5
-
20517302546 RH Air DeflectorRH Air Deflector
-
21517302547 LH Air DeflectorLH Air Deflector
-
22250000113 Screw M4 X 16Screw M4 X 16
-
23234042600 Flat Washer 4 mmFlat Washer 4 mm
