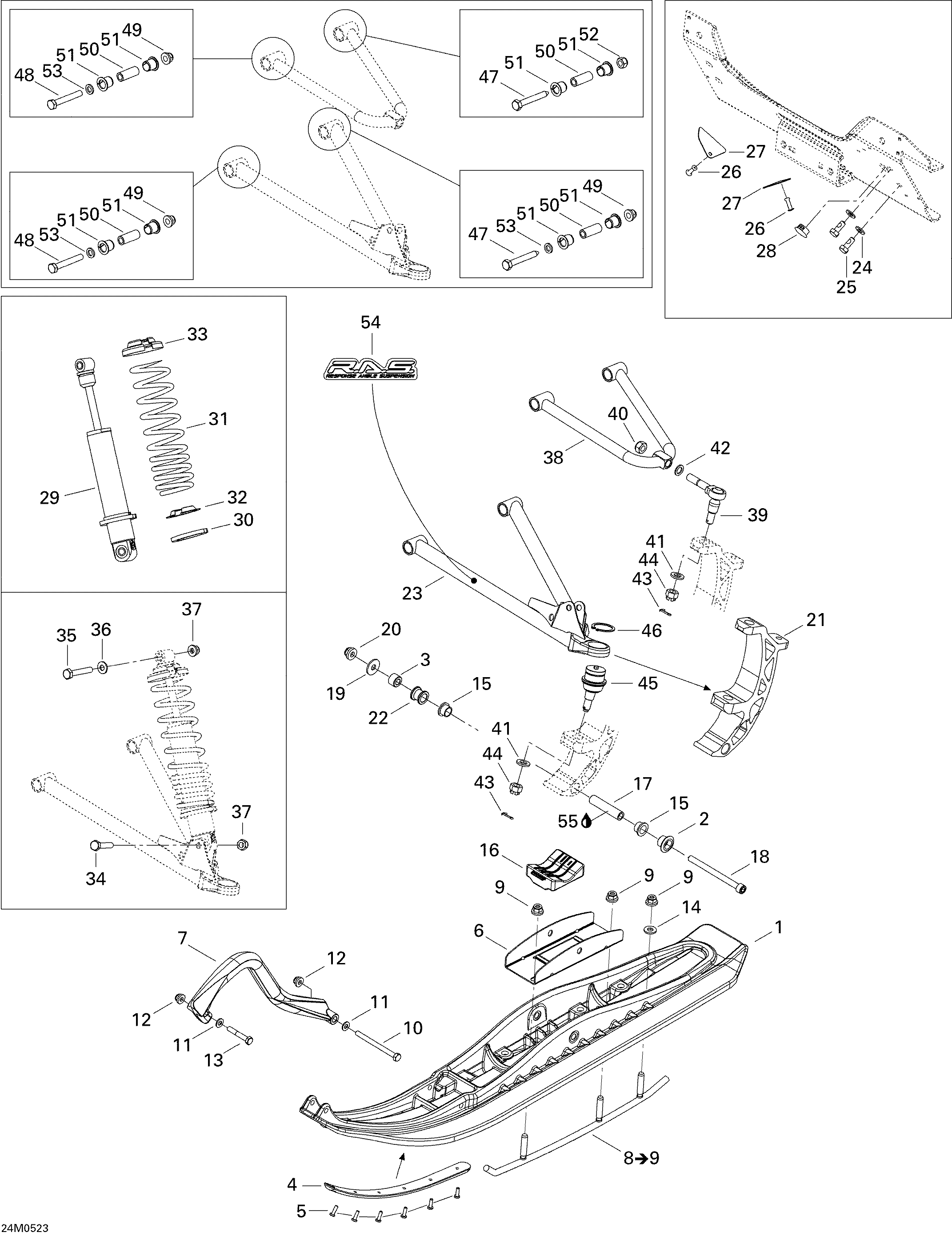

07- Front Suspension And Ski для BRP Ski-Doo Summit 550F - 2005
-
№АртикулНазвание
-
1505071712 RH Ski Ass'yRH Ski Ass'y
-
1505071713 LH Ski Ass'yLH Ski Ass'y
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505071595 Proactive ControlProactive Control
-
5250000016 Phillips Pan Head Quadrex ScrewPhillips Pan Head Quadrex Screw
-
6505070745 Ski RenforcementSki Renforcement
-
7505070963 Handle, BlackHandle, Black
-
8860504800 Carbide RunnerCarbide Runner
-
9233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
10230080044 Hex Screw M8 X 100Hex Screw M8 X 100
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
13207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
14399910100 Flat WasherFlat Washer
-
15505070954 CushionCushion
-
16505071632 Ski StopperSki Stopper
-
17506133300 SpacerSpacer
-
18250000069 Socket Head Screw M10 X 125Socket Head Screw M10 X 125
-
19234002410 Flat Washer 10 mmFlat Washer 10 mm
-
20732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
21505071248 Ski LegSki Leg
-
22505071215 SpacerSpacer
-
23860509800 RH Lower ArmRH Lower Arm
-
23860509900 LH Lower ArmLH Lower Arm
-
24234081410 Flat Washer 8 mmFlat Washer 8 mm
-
25250000118 Hex Screw With NylonHex Screw With Nylon
-
26293150103 Rivet Pop 3/16''Rivet Pop 3/16''
-
27505071131 Aluminium PlugAluminium Plug
-
28572072100 CapCap
-
29505071459 Front ShockFront Shock
-
30505070401 WasherWasher
-
31505071257 SpringSpring
-
32503187500 Spring GuideSpring Guide
-
33503140600 Spring StopperSpring Stopper
-
34207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
35207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
36503189564 WasherWasher
-
37233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
38505071733 Paint Upper ArmPaint Upper Arm
-
39505071679 Upper Ball JointUpper Ball Joint
-
40250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
41234021410 Flat Washer 12 mmFlat Washer 12 mm
-
42503189276 WasherWasher
-
43211400017 Cotter PinCotter Pin
-
44232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
45505071658 Ball JointBall Joint
-
46293370035 CirclipCirclip
-
47250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
48250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
49250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
50505070567 BushingBushing
-
51505070566 Arm BushingArm Bushing
-
52232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
53503189564 WasherWasher
-
54516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
55219700417 Grease Asalso, 180 KgGrease Asalso, 180 Kg
