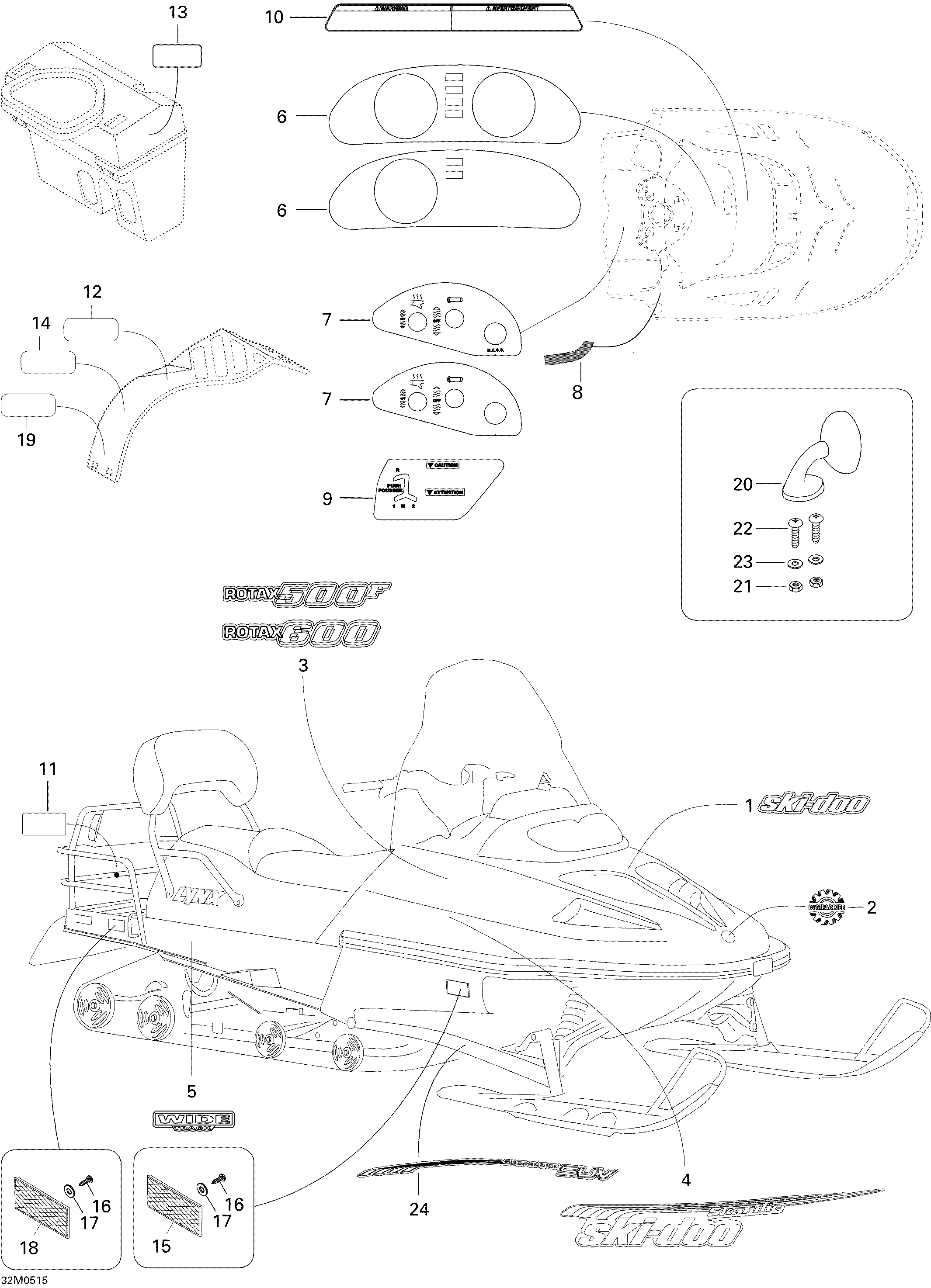

09- Decals 550F SUV для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1516000270 ''Ski-Doo'' Decal. black''Ski-Doo'' Decal. black
-
1516002711 ''Ski-Doo'' Decal. yellow''Ski-Doo'' Decal. yellow
-
2516002487 Bombardier LogoBombardier Logo
-
3516002308 Rotax Decal ''552''. 550 SUV, yellowRotax Decal ''552''. 550 SUV, yellow
-
3516002393 Rotax Decal ''552''. 550 SUV, blackRotax Decal ''552''. 550 SUV, black
-
4516002309 Side Decal RHSide Decal RH
-
4516002310 Side Decal LHSide Decal LH
-
5516000024 Frame DecalFrame Decal
-
6418000808 Dash Decal. 550 SUV, yellowDash Decal. 550 SUV, yellow
-
7516001720 Heat Grip Decal. 550 SUV, yellowHeat Grip Decal. 550 SUV, yellow
-
8516000236 Refl. DecalRefl. Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002074 Label Security Starter ZxLabel Security Starter Zx
-
11516001243 Security Label (Hitch)Security Label (Hitch)
-
12516001190 Label Security (Belt Guard)Label Security (Belt Guard)
-
13516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
14516001297 Security Label (Hot Parts)Security Label (Hot Parts)
-
15414510200 Reflector (Amber)Reflector (Amber)
-
16M40070 ScrewScrew
-
17234451418 Washer M5Washer M5
-
18414510100 Reflector (Red)Reflector (Red)
-
19M5346653 Instruction LabelInstruction Label
-
20414971910 RH MirrorRH Mirror
-
20414972010 LH MirrorLH Mirror
-
21232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
22M40167 ScrewScrew
-
23M20001 WasherWasher
-
24516002311 Arm Decal RHArm Decal RH
-
24516002312 Lower Decal LHLower Decal LH
