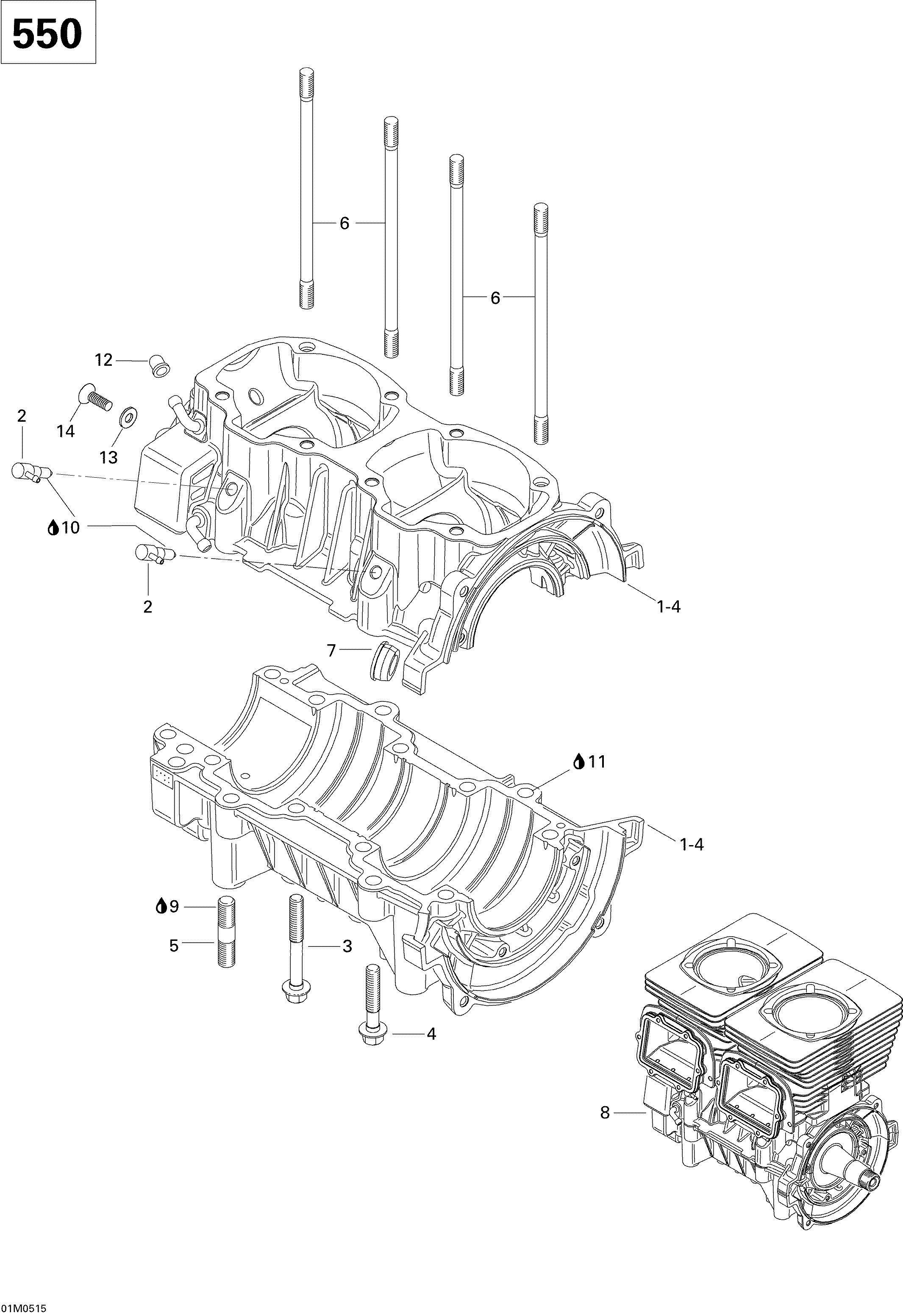

01- Crankcase (550) для BRP Ski-Doo Skandic SUV 550F - 2005
-
№АртикулНазвание
-
1420891061 Crankcase Assy.. Includes 1 to 4Crankcase Assy.. Includes 1 to 4
-
2420956510 Check ValveCheck Valve
-
3420640951 Hex Screw M8 X 68.5Hex Screw M8 X 68.5
-
4420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
5420940704 Stud M10Stud M10
-
6420840556 Stud M8 X 173.5Stud M8 X 173.5
-
7420860962 Cable GrommetCable Grommet
-
8420055204 Block-short 552Block-short 552
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
11420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
12420960772 CapCap
-
13420250311 Washer 8.4 mmWasher 8.4 mm
-
14420640896 Flat Head ScrewFlat Head Screw
