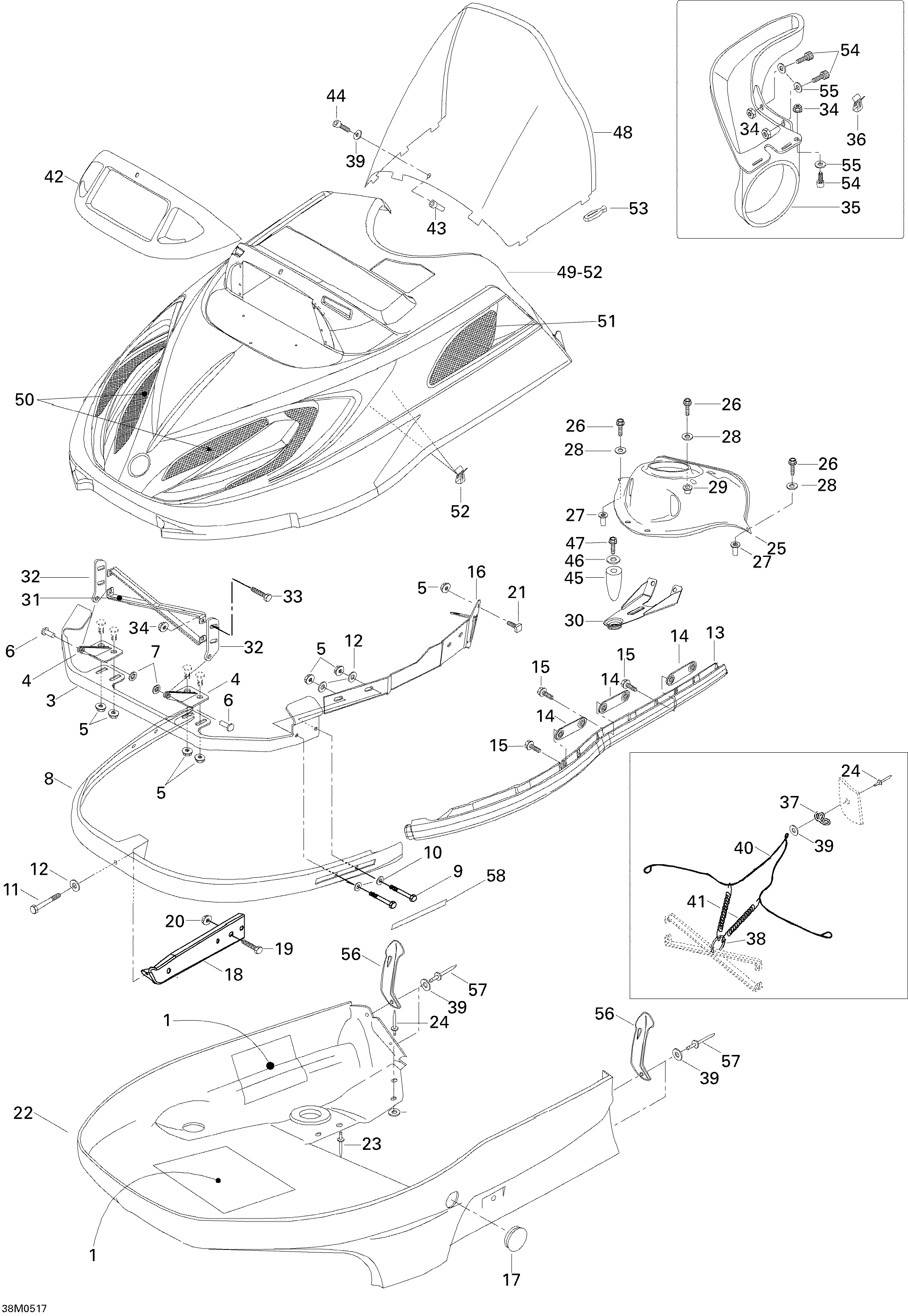

09- Cab And Console для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1M44001 Sheet ReflectionSheet Reflection
-
2414227300 ClipClip
-
3517265100 Painted Bracket HingePainted Bracket Hinge
-
4517289900 Welded Lower HingeWelded Lower Hinge
-
5M33200 Nut M6Nut M6
-
6390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
7389804300 Push NutPush Nut
-
8517265400 Front BumperFront Bumper
-
9207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
10224061121 Flat WasherFlat Washer
-
11M40867 ScrewScrew
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13M5144964 LH BumperLH Bumper
-
13M5144965 RH BumperRH Bumper
-
14M5446213 Side BracketSide Bracket
-
15M40322 ScrewScrew
-
16M5246400 RH SupportRH Support
-
16M5246399 LH SupportLH Support
-
17570277300 Bottom Pan CapBottom Pan Cap
-
18M5246183 Front SupportFront Support
-
19M40336 Screw M8 X 20Screw M8 X 20
-
20M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
21M5446813 ScrewScrew
-
22605152267 Bottom PanBottom Pan
-
23M36036 Rivet-BlackRivet-Black
-
24M36005 RivetRivet
-
25605350277 DashDash
-
26732600030 ScrewScrew
-
27M28055 Welded NutWelded Nut
-
28M20117 WasherWasher
-
29M547539 Rubber DamperRubber Damper
-
30605350221 Guide PlateGuide Plate
-
31M5246862 Hood ReinforcementHood Reinforcement
-
32517261100 Uppper HingeUppper Hinge
-
33M40366 Screw M5X16Screw M5X16
-
34M33062 Nut M5Nut M5
-
35M5246991 Inlet DuctInlet Duct
-
36414227300 ClipClip
-
37M5442870 Cable KeeperCable Keeper
-
38415058300 RingRing
-
39M20008 Washer 5 mmWasher 5 mm
-
40M5342674 Retainer CableRetainer Cable
-
41M5442675 SpringSpring
-
42572079200 Lamp MouldingLamp Moulding
-
43M28050 Welded NutWelded Nut
-
44M40358 Screw M5 X 30Screw M5 X 30
-
45M5446857 Guide PinGuide Pin
-
46M20038 WasherWasher
-
47M40375 ScrewScrew
-
48M5147892 WindshieldWindshield
-
49605148660 Yellow Hood. Includes 49 to 52Yellow Hood. Includes 49 to 52
-
50M5246261 RH Front GrillRH Front Grill
-
50M5246262 LH Front GrillLH Front Grill
-
51M5346263 LH Side GrillLH Side Grill
-
51M5347250 RH Side GrillRH Side Grill
-
52414227300 ClipClip
-
53570023800 Windshield LatchWindshield Latch
-
54M40308 ScrewScrew
-
55234051410 Flat WasherFlat Washer
-
56570025900 Black LatchBlack Latch
-
57M36009 RivetRivet
-
58418001009 ReflectorReflector
