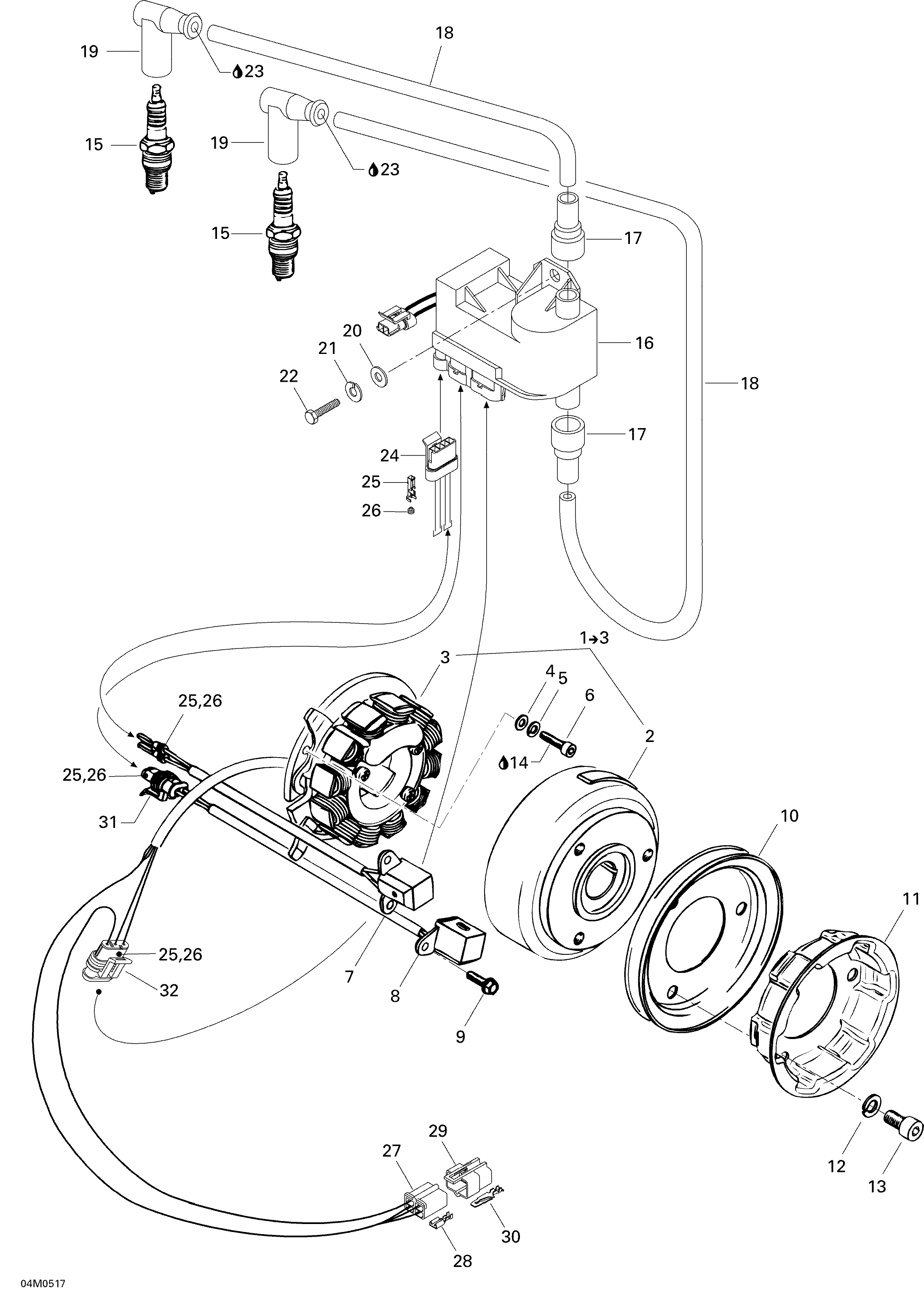

03- Magneto для BRP Ski-Doo Skandic LT 440F - 2005
-
№АртикулНазвание
-
1420887654 Ducati Magneto. Includes 1 to 3Ducati Magneto. Includes 1 to 3
-
2420996824 FlywheelFlywheel
-
3420886603 Stator Plate AStator Plate A
-
4420927571 Washer 5.3 mmWasher 5.3 mm
-
5M20013 Lock WasherLock Washer
-
6420840515 Socket Head Screw M5 X 18Socket Head Screw M5 X 18
-
7420966548 Pick-Up Ass'Y (Reverse)Pick-Up Ass'Y (Reverse)
-
8420966546 Pick-Up Ass'YPick-Up Ass'Y
-
9420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
10420980486 V-Belt PulleyV-Belt Pulley
-
11420852414 Rope SheaveRope Sheave
-
12420845311 Lock Washer 8 mmLock Washer 8 mm
-
13420841521 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15414961100 Spark Plug (NGK Br9Es)Spark Plug (NGK Br9Es)
-
16M42507 Electronic BoxElectronic Box
-
17515174900 Protection CapProtection Cap
-
18278001268 Spark Plug WireSpark Plug Wire
-
19278000237 Spark Plug CapSpark Plug Cap
-
20M40332 ScrewScrew
-
21234161471 Lock Washer 6 mmLock Washer 6 mm
-
22234061410 Flat Washer 6 mmFlat Washer 6 mm
-
23219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
24409209700 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
25278001014 Female TerminalFemale Terminal
-
26278001013 SealSeal
-
27409204900 Female HousingFemale Housing
-
28515175253 Female TerminalFemale Terminal
-
29409209300 Male HousingMale Housing
-
30409210000 Male TerminalMale Terminal
-
31409209500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
32409209600 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
