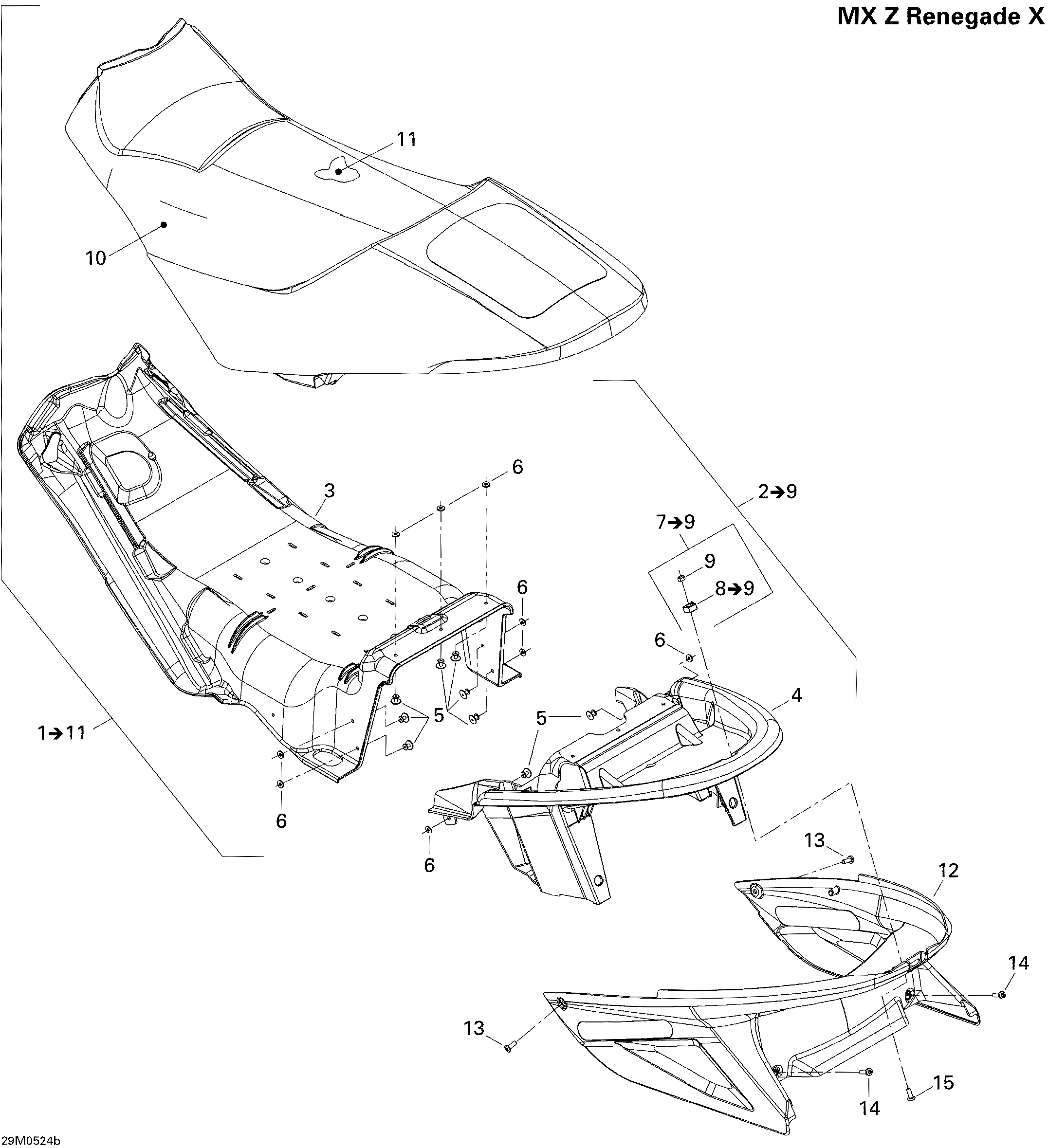

09- Seat Renegade X для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2005

  • №
    Артикул
    Название
  • 2
    510004582 Base Siege Ass'y. Includes 2 to 9
    Base Siege Ass'y. Includes 2 to 9
  • 5
    390409600 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 6
    517225900 Flat Washer
    Flat Washer
  • 7
    708000046 Nut Housing Ass'y, M6. Includes 7 to 9
    Nut Housing Ass'y, M6. Includes 7 to 9
  • 8
    269500252 Nut Housing Ass'Y. Includes 8 to 9
    Nut Housing Ass'Y. Includes 8 to 9
  • 9
    232061600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 10
    510004491 Seat Cover. Black, B-160
    Seat Cover. Black, B-160
  • 10
    510004492 Seat Cover. Jaune, B-190
    Seat Cover. Jaune, B-190
  • 10
    510004493 Seat Cover. Viper Red, B-176
    Seat Cover. Viper Red, B-176
  • 11
    510004216 Seat Foam
    Seat Foam
  • 12
    510004230 Trunk, Noir, B-160
    Trunk, Noir, B-160
  • 13
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 14
    250000128 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 15
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
