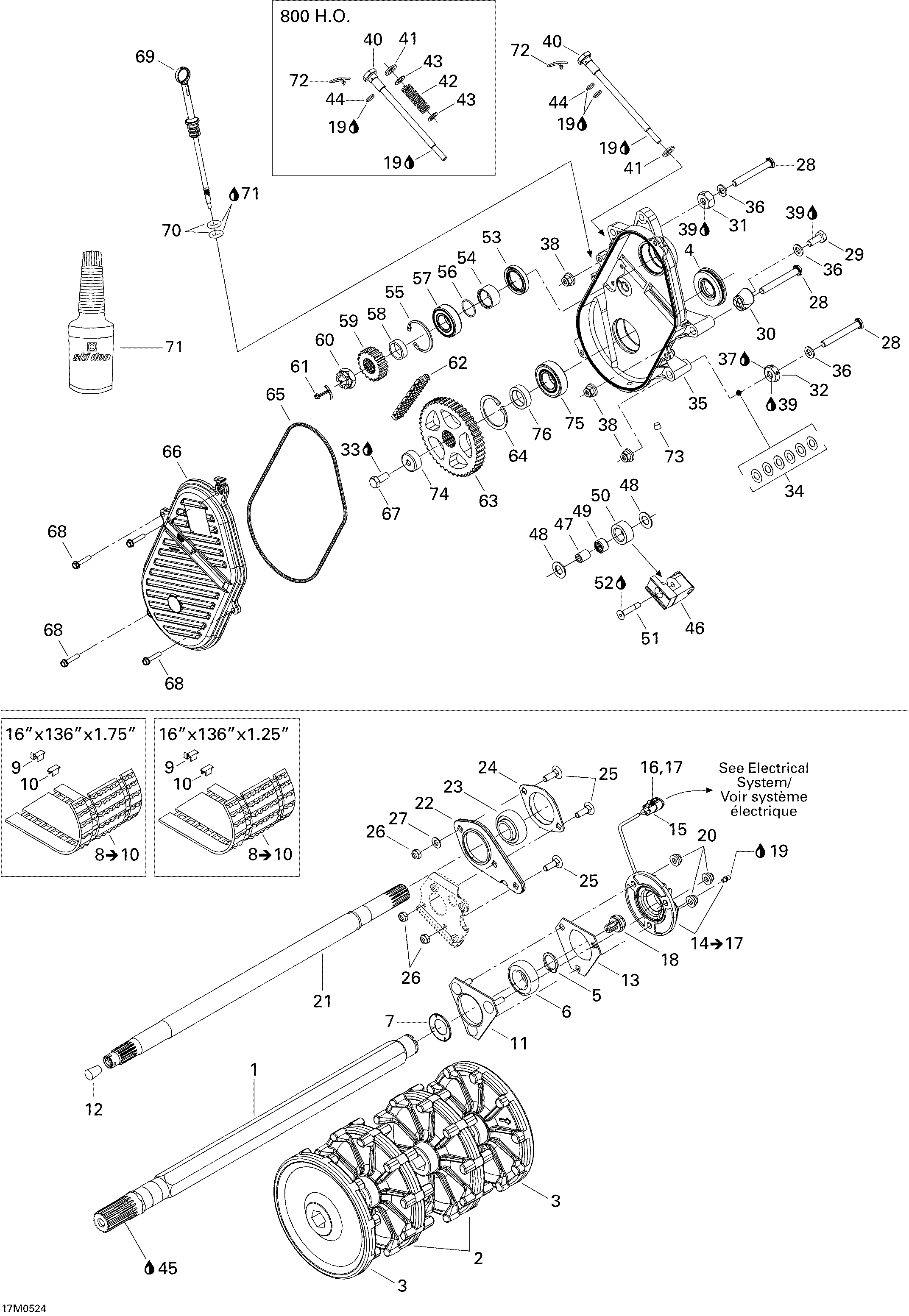

05- Drive System для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2005

  • №
    Артикул
    Название
  • 1
    501027400 Drive Axle
    Drive Axle
  • 2
    504152198 Sprocket, 10 Teeth. Renegade & Renegade X
    Sprocket, 10 Teeth. Renegade & Renegade X
  • 3
    504152199 Half Sprocket, 10 Teeth. Renegade & Renegade X
    Half Sprocket, 10 Teeth. Renegade & Renegade X
  • 4
    504151918 Oil Seal Ass'Y
    Oil Seal Ass'Y
  • 5
    371910200 Circlip
    Circlip
  • 6
    504152009 Ball Bearing
    Ball Bearing
  • 7
    501017400 Bearing Protector
    Bearing Protector
  • 8
    504152406 Track Ass'y 16''x136''x1.75. Includes 8 to 10 / Renegade X
    Track Ass'y 16''x136''x1.75. Includes 8 to 10 / Renegade X
  • 8
    504152486 Track Ass'y 16''x136''x1.25. Includes 8 to 10 / Renegade & Renegade X
    Track Ass'y 16''x136''x1.25. Includes 8 to 10 / Renegade & Renegade X
  • 9
    500003400 Guide Cleat. Renegade X
    Guide Cleat. Renegade X
  • 9
    504152410 Guide Cleat. Renegade & Renegade X
    Guide Cleat. Renegade & Renegade X
  • 10
    500003300 Cleat
    Cleat
  • 11
    504151860 Bearing Housing
    Bearing Housing
  • 12
    414784800 Cork
    Cork
  • 13
    501025000 Flange
    Flange
  • 14
    504152345 Sensor. Includes 14 to 17
    Sensor. Includes 14 to 17
  • 15
    515175671 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 16
    278000632 Female Terminal
    Female Terminal
  • 17
    515175676 Female Lock, 3 Circuits
    Female Lock, 3 Circuits
  • 18
    504152040 Magnetic Adaptor
    Magnetic Adaptor
  • 19
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 20
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 21
    504152018 Counter Shaft
    Counter Shaft
  • 22
    504151968 Spacer
    Spacer
  • 23
    504152026 Ball Bearing
    Ball Bearing
  • 24
    501026900 Flange
    Flange
  • 25
    207782544 Carriage Bolt M8 X 25
    Carriage Bolt M8 X 25
  • 26
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 27
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 28
    250000151 Hex Screw M10 X 80
    Hex Screw M10 X 80
  • 29
    207102544 Hex Screw M10 X 25
    Hex Screw M10 X 25
  • 30
    504152252 Spacer
    Spacer
  • 31
    504083800 Spacer
    Spacer
  • 32
    504152237 Spacer
    Spacer
  • 33
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 34
    504073700 Washer
    Washer
  • 35
    504152086 Chaincase. 800 H.O.
    Chaincase. 800 H.O.
  • 35
    504152312 Chaincase. 600 H.O.
    Chaincase. 600 H.O.
  • 36
    503175800 Washer
    Washer
  • 37
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
  • 38
    233201414 Elastic Flanged Nut M10
    Elastic Flanged Nut M10
  • 39
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 40
    504151946 Screw Adjusting. 800 H.O.
    Screw Adjusting. 800 H.O.
  • 40
    732601314 Adjusting Screw. 600 H.O.
    Adjusting Screw. 600 H.O.
  • 41
    234001410 Flat Washer 10 mm. 600 H.O.
    Flat Washer 10 mm. 600 H.O.
  • 41
    503189148 Washer. 800 H.O.
    Washer. 800 H.O.
  • 42
    504151945 Spring. 800 H.O.
    Spring. 800 H.O.
  • 43
    503125900 Hard Washer. 800 H.O.
    Hard Washer. 800 H.O.
  • 44
    414484400 O-Ring. 600 H.O.
    O-Ring. 600 H.O.
  • 44
    504151954 O-Ring. 800 H.O.
    O-Ring. 800 H.O.
  • 45
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 46
    504151940 Tension chaine. 800 H.O.
    Tension chaine. 800 H.O.
  • 46
    504151951 Chain Tensioner. 600 H.O.
    Chain Tensioner. 600 H.O.
  • 47
    504080200 Spacer
    Spacer
  • 48
    504080300 Washer
    Washer
  • 49
    405403000 Needle Bearing
    Needle Bearing
  • 50
    414531300 Roller
    Roller
  • 51
    732601144 Screw
    Screw
  • 52
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 53
    415049300 Oil Seal
    Oil Seal
  • 54
    507031500 Spacer
    Spacer
  • 55
    371901700 Circlip, Interior
    Circlip, Interior
  • 56
    414876700 O-Ring
    O-Ring
  • 57
    504152006 Ball Bearing
    Ball Bearing
  • 58
    504147200 Shim
    Shim
  • 59
    504091000 Sprocket, 23 Teeth. 800 H.O.
    Sprocket, 23 Teeth. 800 H.O.
  • 59
    504096200 Sprocket, 21 Teeth. 600 H.O. / 800 H.O.
    Sprocket, 21 Teeth. 600 H.O. / 800 H.O.
  • 60
    250000012 Hex Castle Nut 20 X 1.5
    Hex Castle Nut 20 X 1.5
  • 61
    371006300 Pin Cotter
    Pin Cotter
  • 62
    504151857 Drive Chain, 74 Links. 600 H.O. / 800 H.O.
    Drive Chain, 74 Links. 600 H.O. / 800 H.O.
  • 63
    504148500 43 Teeth Sprocket, Large. 600 H.O. / 800 H.O.
    43 Teeth Sprocket, Large. 600 H.O. / 800 H.O.
  • 64
    415064300 Circlip, Interior
    Circlip, Interior
  • 65
    415046400 O-Ring
    O-Ring
  • 66
    504152471 Chaincase Cover
    Chaincase Cover
  • 67
    207102544 Hex Screw M10 X 25
    Hex Screw M10 X 25
  • 68
    210263080 Hex Forming Screw M6 X 30
    Hex Forming Screw M6 X 30
  • 69
    504151703 Filler Cap Ass'Y
    Filler Cap Ass'Y
  • 70
    414969400 O-Ring
    O-Ring
  • 71
    413803300 Synthetic Chaincase Oil, 12 X 355 ml
    Synthetic Chaincase Oil, 12 X 355 ml
  • 72
    414575600 Hair Pin
    Hair Pin
  • 73
    504151921 Plug 1/8''-27
    Plug 1/8''-27
  • 74
    504152460 Cap
    Cap
  • 75
    504152005 Ball Bearing
    Ball Bearing
  • 76
    504152058 Shim
    Shim
