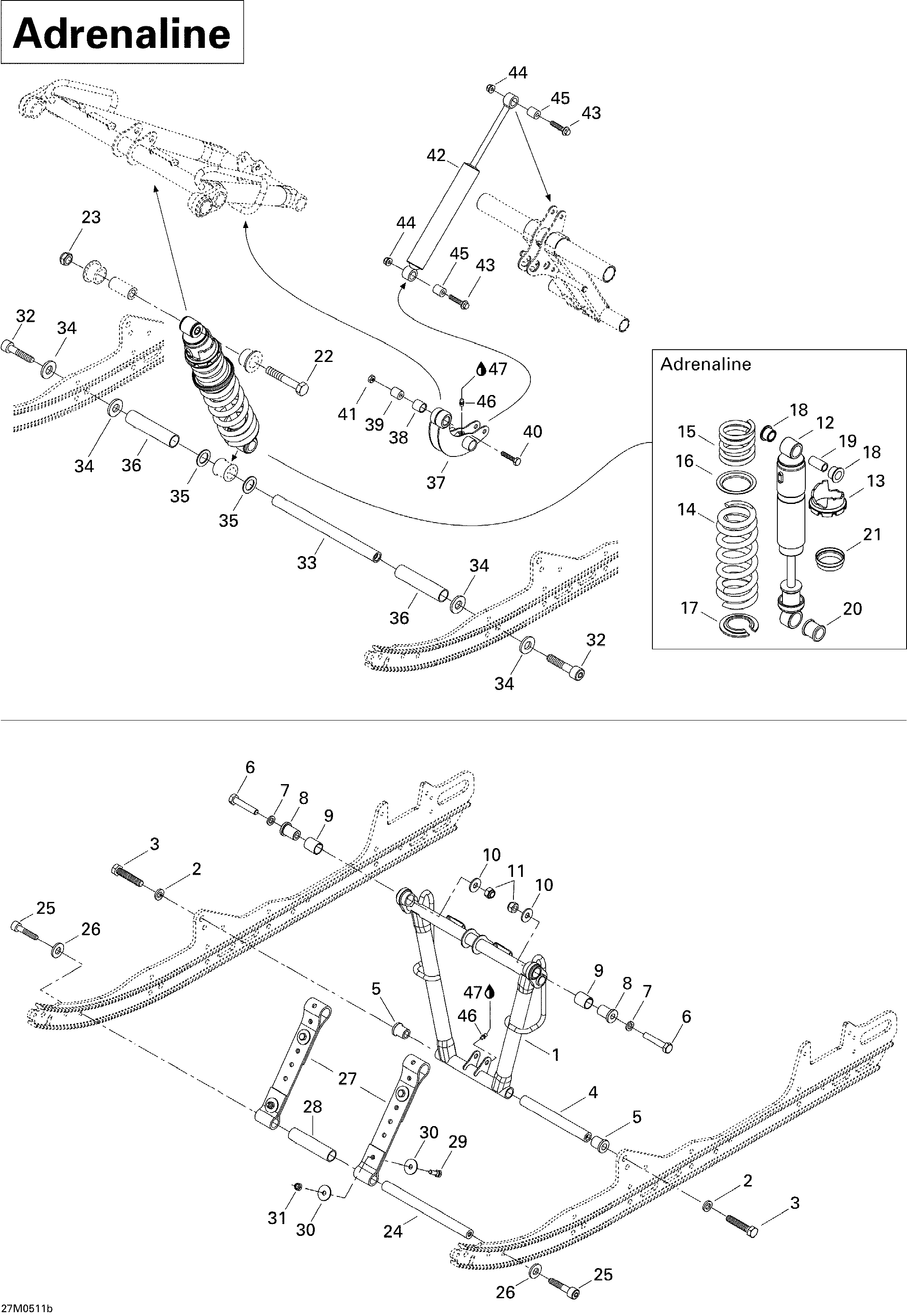

08- Front Arm Adrenaline для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
1503191071 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503190373 ExtensionExtension
-
9503190474 Extended BushingExtended Bushing
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503190313 Center ShockCenter Shock
-
13505070150 Cam 45°Cam 45°
-
14503190478 SpringSpring
-
15503190476 SpringSpring
-
16517184300 Spring GuideSpring Guide
-
17503189912 Spring StopperSpring Stopper
-
18503189117 CushionCushion
-
19503189282 BushingBushing
-
20503189271 CushionCushion
-
21503190297 Spring SpacerSpring Spacer
-
22207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
23233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
24503189562 AxleAxle
-
25205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
26503189564 WasherWasher
-
27503190782 Stopper StrapStopper Strap
-
28503189265 SpacerSpacer
-
29207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
30224081301 Flat WasherFlat Washer
-
31233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
32205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
33503189272 Center Shock ShaftCenter Shock Shaft
-
34503189276 WasherWasher
-
35503189273 WasherWasher
-
36503189274 SpacerSpacer
-
37503189845 RockerRocker
-
38503189388 Rocker AxleRocker Axle
-
39503189626 CushionCushion
-
40207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
41233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
42503190304 Rear ShockRear Shock
-
43207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
44233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
45414936000 CushionCushion
-
46408200700 Grease FittingGrease Fitting
-
47219700417 Synthetic Grease, 400gSynthetic Grease, 400g
