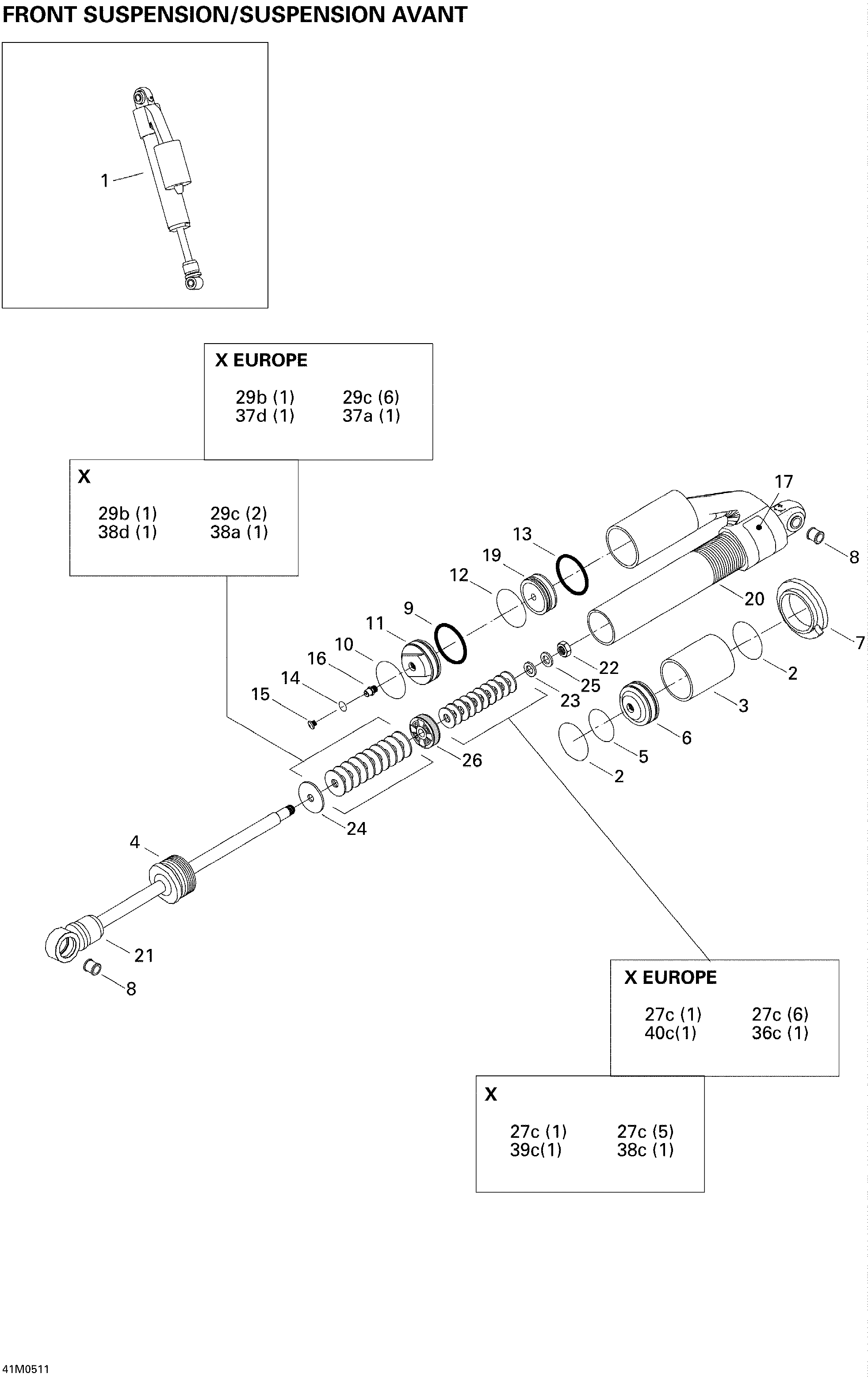

07- Take Apart Shock, Front X для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005

  • №
    Артикул
    Название
  • 1
    505071301 RH Front Shock. X
    RH Front Shock. X
  • 1
    505071646 RH Front Shock. X Europe
    RH Front Shock. X Europe
  • 1
    505071300 LH Front Shock. X
    LH Front Shock. X
  • 1
    505071645 LH Front Shock. X Europe
    LH Front Shock. X Europe
  • 7
    505071167 Spring Plastic Seat
    Spring Plastic Seat
  • 9
    415093804 O-Ring
    O-Ring
  • 10
    415093805 Stop Ring
    Stop Ring
  • 12
    415093806 Piston Ring
    Piston Ring
  • 13
    415093807 O-Ring
    O-Ring
  • 14
    505070400 O-Ring
    O-Ring
  • 15
    505070399 Screw
    Screw
  • 16
    505070398 Air Valve Ring
    Air Valve Ring
  • 18
    293600035 Shock Oil (Not Shown). Not shown
    Shock Oil (Not Shown). Not shown
  • 19
    415093812 Free Piston
    Free Piston
  • 27a
    415039100 Leaf Valve O30 X 0.254 (C36)
    Leaf Valve O30 X 0.254 (C36)
  • 27b
    414888318 Leaf Valve O30 X 0.203 (C36)
    Leaf Valve O30 X 0.203 (C36)
  • 27C
    414888319 Leaf Valve O30 X 0.152 (C36)
    Leaf Valve O30 X 0.152 (C36)
  • 28b
    414888320 Leaf Valve O28 X 0.203 (C36)
    Leaf Valve O28 X 0.203 (C36)
  • 28c
    414888321 Leaf Valve O28 X 0.152 (C36)
    Leaf Valve O28 X 0.152 (C36)
  • 29a
    415039000 Leaf Valve O26 X 0.254 (C36)
    Leaf Valve O26 X 0.254 (C36)
  • 29b
    414888322 Leaf Valve O26 X 0.203 (C36)
    Leaf Valve O26 X 0.203 (C36)
  • 29c
    414888323 Leaf Valve O26 X 0.152 (C36)
    Leaf Valve O26 X 0.152 (C36)
  • 31b
    414888324 Leaf Valve O22 X 0.203 (C36)
    Leaf Valve O22 X 0.203 (C36)
  • 31c
    414888325 Leaf Valve O22 X 0.152 (C36)
    Leaf Valve O22 X 0.152 (C36)
  • 32d
    414888340 Leaf Valve O21 X 0.114 (C36)
    Leaf Valve O21 X 0.114 (C36)
  • 33b
    414888326 Leaf Valve O20 X 0.203 (C36)
    Leaf Valve O20 X 0.203 (C36)
  • 33c
    414888327 Leaf Valve O20 X 0.152 (C36)
    Leaf Valve O20 X 0.152 (C36)
  • 33d
    414888328 Leaf Valve O20 X 0.114 (C36)
    Leaf Valve O20 X 0.114 (C36)
  • 35b
    414888329 Leaf Valve O18 X 0.203 (C36)
    Leaf Valve O18 X 0.203 (C36)
  • 35c
    414888330 Leaf Valve O18 X 0.152 (C36)
    Leaf Valve O18 X 0.152 (C36)
  • 37a
    414888331 Leaf Valve O16 X 0.254 (C36)
    Leaf Valve O16 X 0.254 (C36)
  • 37b
    414888332 Leaf Valve O16 X 0.203 (C36)
    Leaf Valve O16 X 0.203 (C36)
  • 37c
    414888333 Leaf Valve O16 X 0.152 (C36)
    Leaf Valve O16 X 0.152 (C36)
  • 37D
    415038900 Leaf Valve O16 X 0.114 (C36)
    Leaf Valve O16 X 0.114 (C36)
  • 38a
    414888334 Leaf Valve O15 X 0.254 (C36)
    Leaf Valve O15 X 0.254 (C36)
  • 38b
    414888335 Leaf Valve O15 X 0.203 (C36)
    Leaf Valve O15 X 0.203 (C36)
  • 38c
    414888336 Leaf Valve O15 X 0.152 (C36)
    Leaf Valve O15 X 0.152 (C36)
  • 38d
    414888337 Leaf Valve O15 X 0.114 (C36)
    Leaf Valve O15 X 0.114 (C36)
  • 41a
    503189538 Leaf Valve O12 X 0.254 (C36)
    Leaf Valve O12 X 0.254 (C36)
  • 41b
    414888338 Leaf Valve O12 X 0.203 (C36)
    Leaf Valve O12 X 0.203 (C36)
  • 41c
    414888339 Leaf Valve O12 X 0.152 (C36)
    Leaf Valve O12 X 0.152 (C36)
  • 41d
    415038800 Leaf Valve O12 X 0.114 (C36)
    Leaf Valve O12 X 0.114 (C36)
