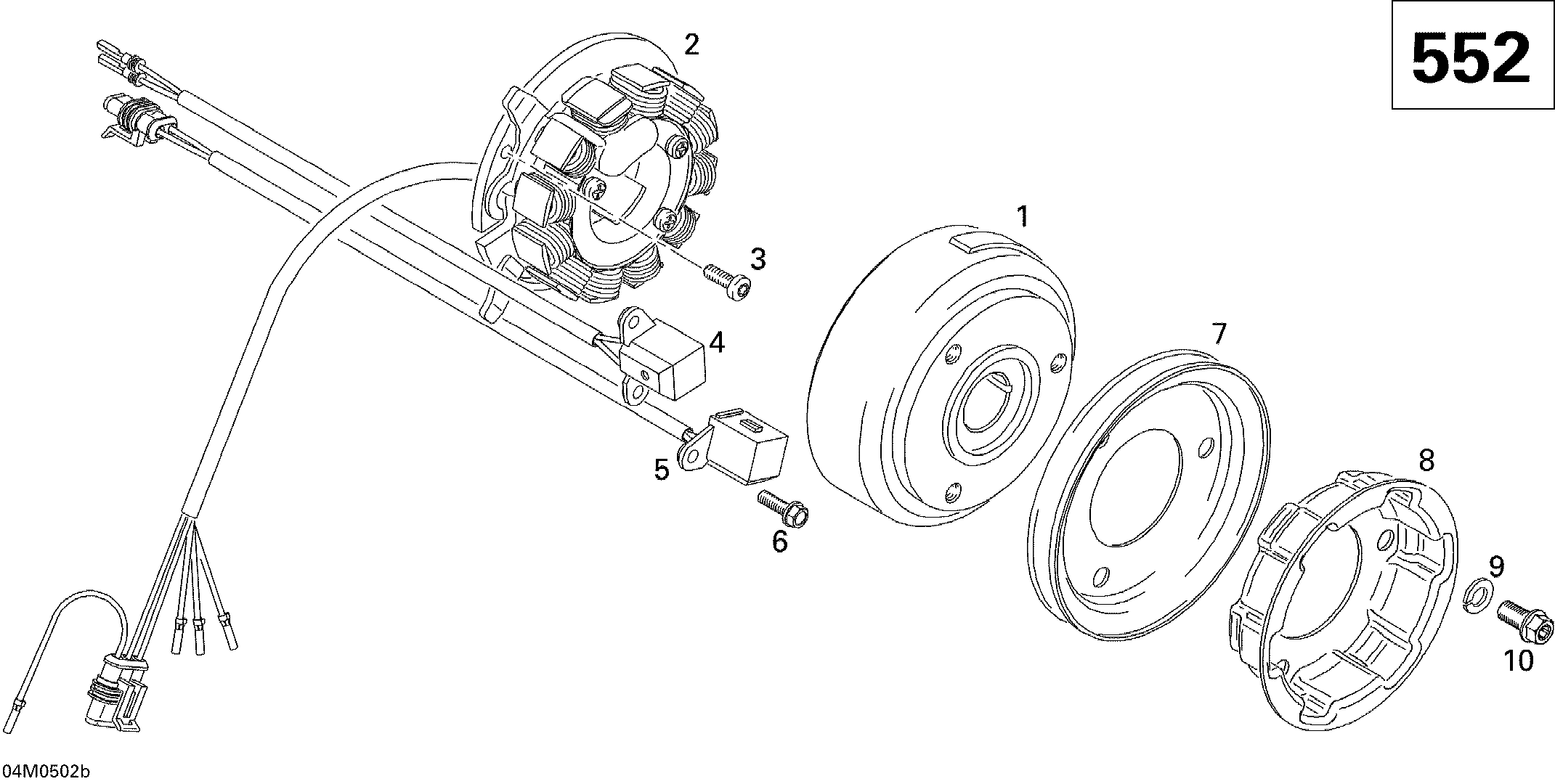

03- Magneto 552 для BRP Ski-Doo MX Z 550F - 2005
-
№АртикулНазвание
-
1420889376 FlywheelFlywheel
-
2420889366 Stator PlateStator Plate
-
3420641521 ScrewScrew
-
4420665160 Pick-Up (Forward)Pick-Up (Forward)
-
5420665162 Pick-Up (Reverse)Pick-Up (Reverse)
-
6420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
7420980486 V-Belt PulleyV-Belt Pulley
-
8420852414 Rope SheaveRope Sheave
-
9420845311 Lock WasherLock Washer
-
10420440852 Torx Flanged Screw M8 X 16Torx Flanged Screw M8 X 16
