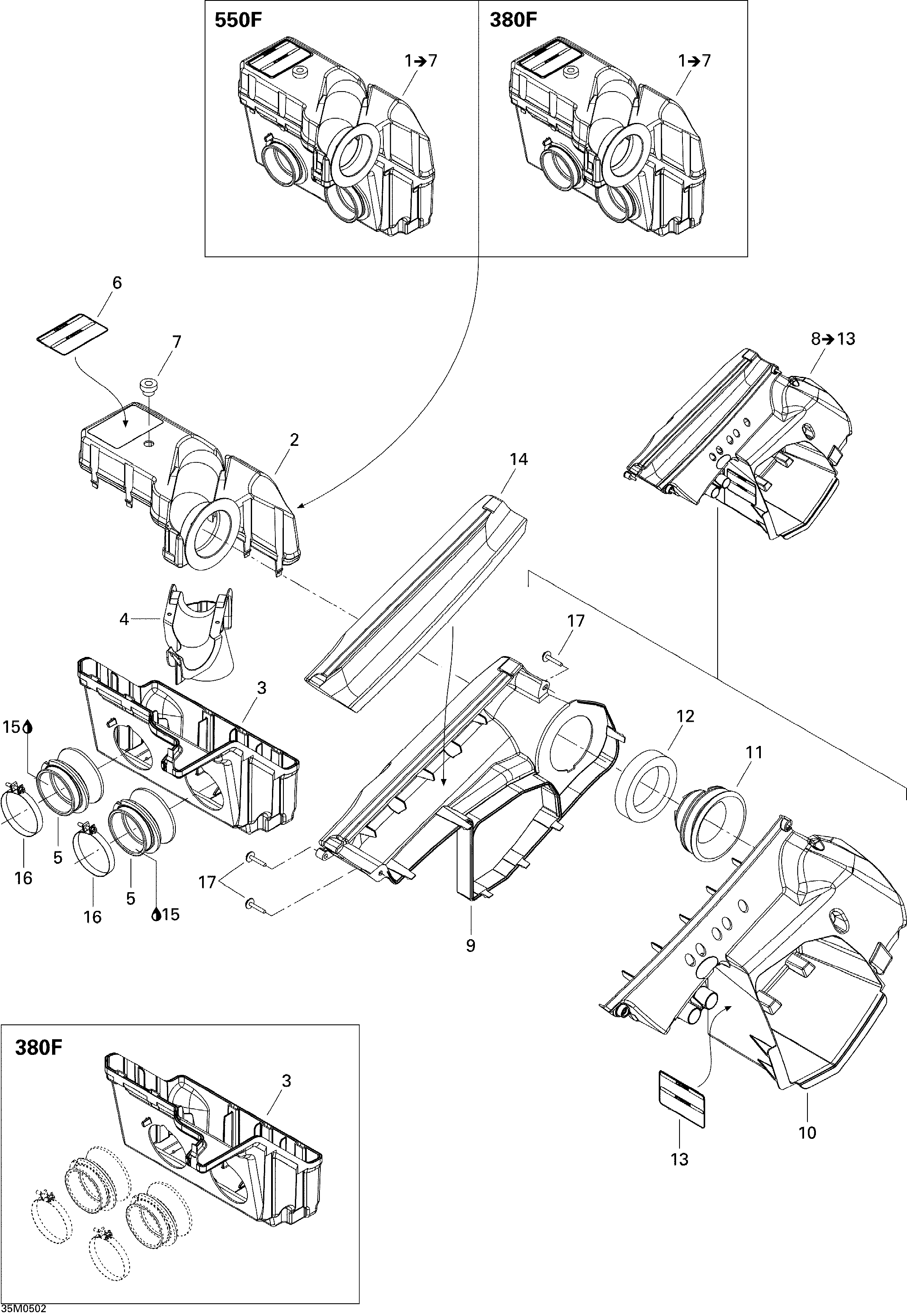

02- Air Intake System MX Z 550F для BRP Ski-Doo MX Z 550F - 2005

  • №
    Артикул
    Название
  • 1
    508000383 Primary Chamber Ass'y. 550F, Includes 1 to 7
    Primary Chamber Ass'y. 550F, Includes 1 to 7
  • 6
    516002715 Label (air Intake Installation)
    Label (air Intake Installation)
  • 7
    513032908 Grommet
    Grommet
  • 8
    508000376 Secondary Chamber Ass'y. Includes 8 to 13
    Secondary Chamber Ass'y. Includes 8 to 13
  • 11
    508000240 Guide
    Guide
  • 12
    508000199 Outer Foam
    Outer Foam
  • 13
    516002715 Label (air Intake Installation)
    Label (air Intake Installation)
  • 14
    508000394 Air Filter
    Air Filter
  • 15
    413803200 Injection Oil (205 Liters)
    Injection Oil (205 Liters)
  • 16
    508000344 Gemi Clamp
    Gemi Clamp
  • 17
    250000101 Screw M4 X 25
    Screw M4 X 25
